Hot Dipped Galvanised 8x5 Hydraulic Tipper Trailer ATM 3500KG

Supplier: Hunan Ct Industries Co., Ltd.
Region: Hunan, China
Contact: Mr Milo Zhou
Price: $1800.00 / >=5 sets
Min. Order: 5 sets

Click here to contact

Product details

Supply Ability:	1000 Set/Sets per Month;	OEM No.:	85HTT;
ATM:	3500KG;	Payment Terms:	T/T;
Drawbar:	1800MM Ultra-long Draw Bar;	Internal Trailer Dimensions:	2400mm (L) x 1530mm (W);
Tare weight:	1250KG;	Packaging Detail:	Flat Packed, Iron Pallet, or Customized;
Deck Size:	2480mm (L) x 1535mm (W);	Port:	CHANGSHA;
Size:	8FT*5FT;	Max Payload:	2250KG;
Place of Origin:	Hunan China;	Brand Name:	CT OR OEM;
Finish:	Hot Dipped Galvanized;

Different Size For Hydraulic Tipper Trailer

SIZE (ft)	ATM (kg)	CHASSIS (mm)	INTERNAL TRAILER SIZE (mm)	SPRING	WHEEL
8×5	3500	2480×1535	2400×1530	7 Leaf 7mm Rocker Roller Spring	195 R15C
10×5	3500	3080×1535	3000×1530	7 Leaf 7mm Rocker Roller Spring	195 R15C
10×6	3500	3080×1835	3000×1830	7 Leaf 7mm Rocker Roller Spring	195 R15C
12×6	3500	3680×1835	3600×1830	7 Leaf 7mm Rocker Roller Spring	195 R15C

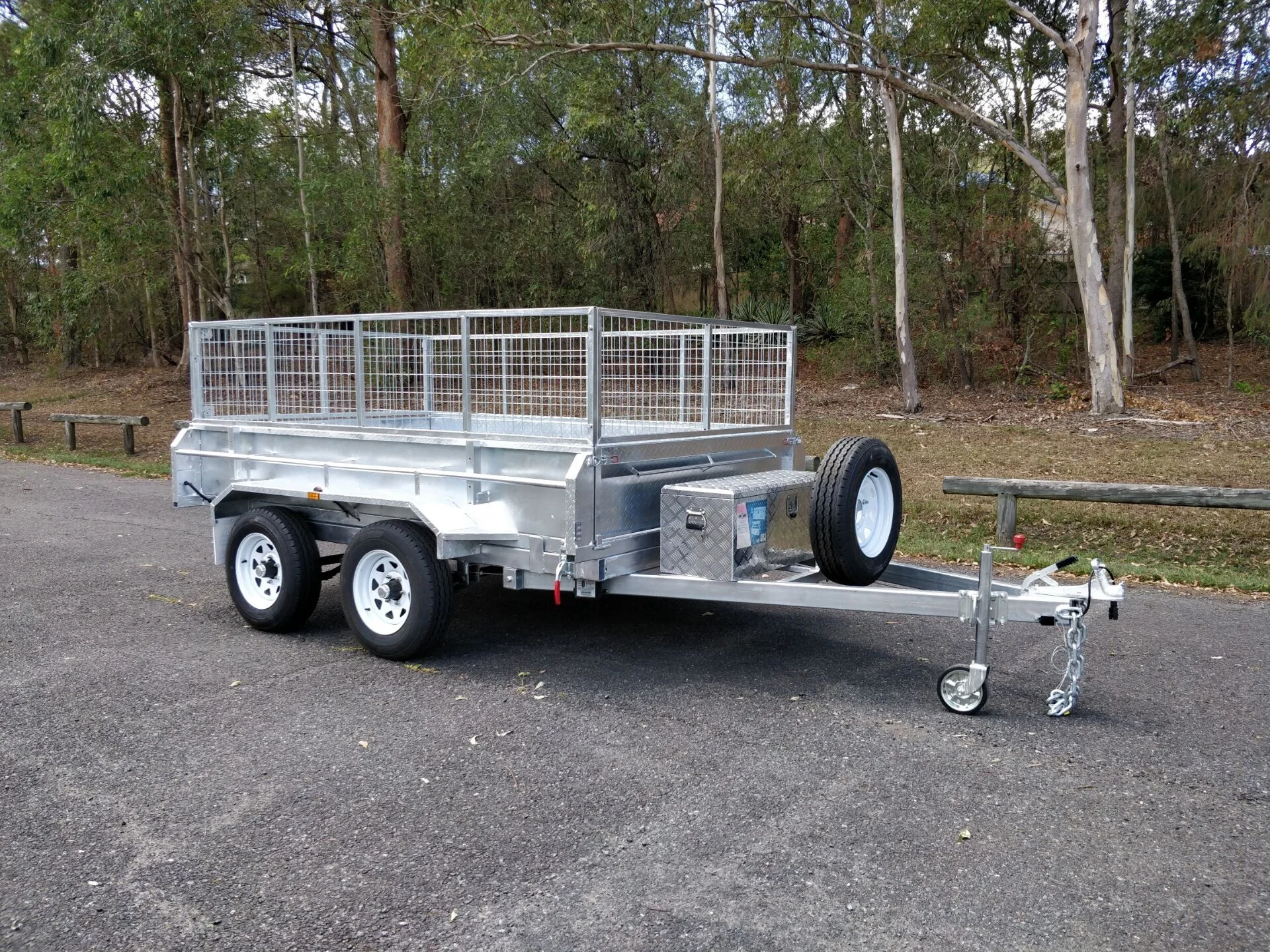

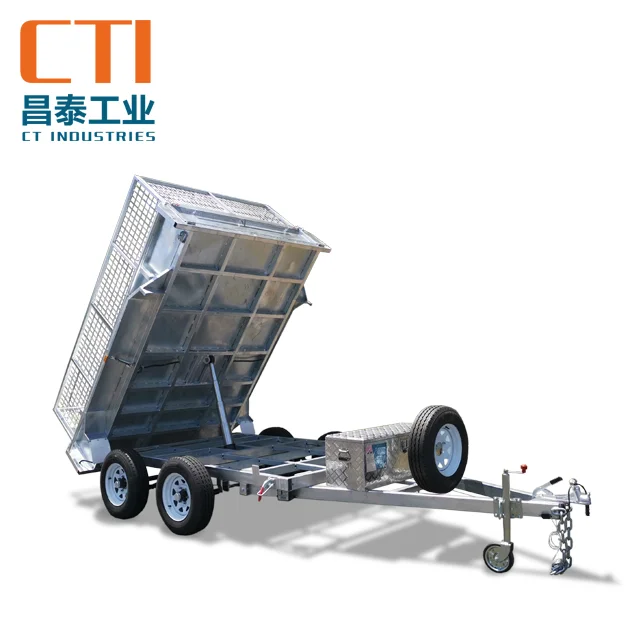

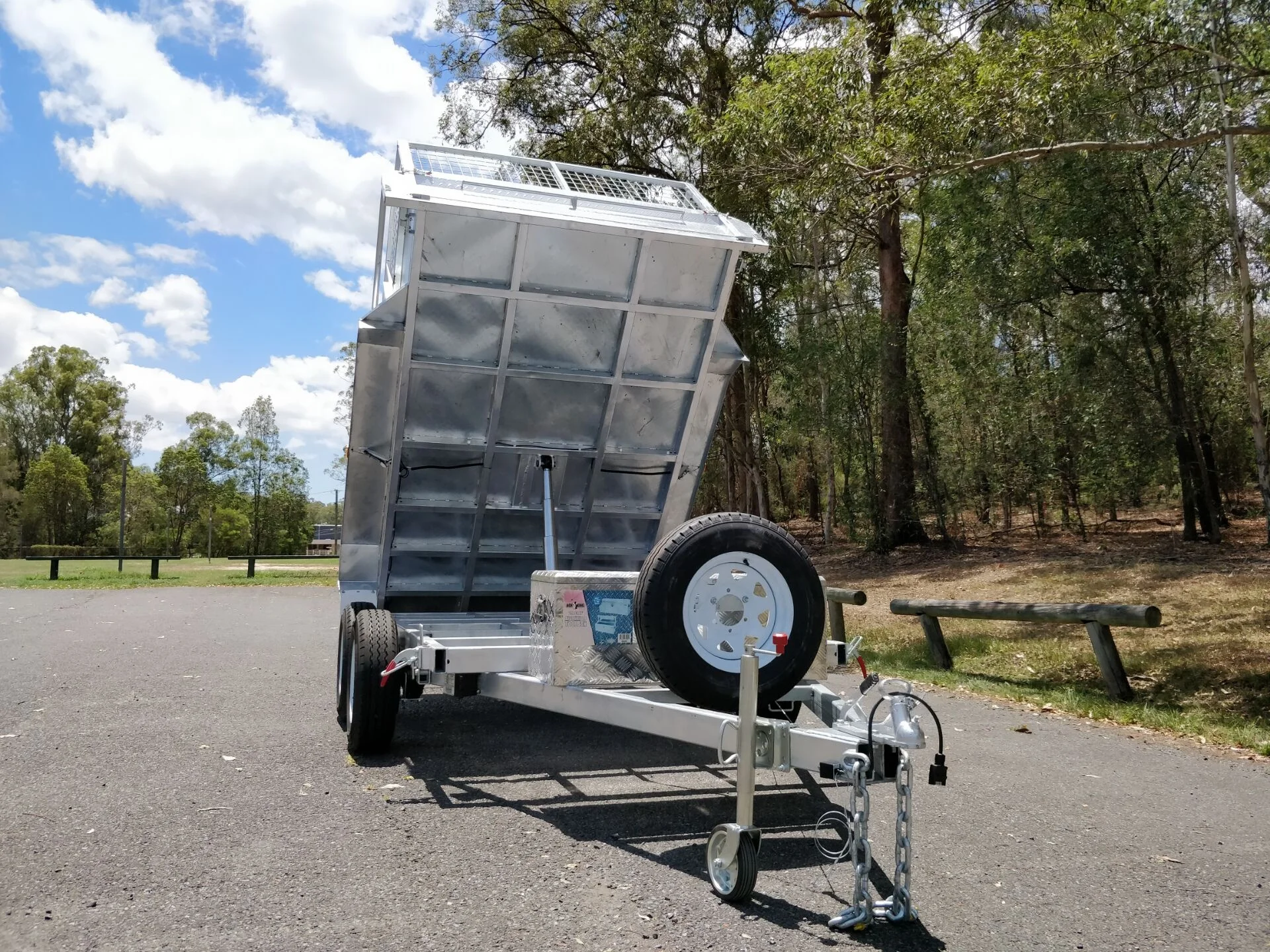

Hot Dipped Galvanised 8x5 Hydraulic Tipper Trailer ATM 3500KG

Product Description

• Technical Specifications

ATM:3500KG

Payload: 2250KG

1900mm Ultra Long Draw Bar makes reverse parking easy
Fully Welded Frame and Chassis
Chassis: 2480mm x 1535mm
Internal Trailer Size: 2400mm x 1530mm
Side: 425mm High Fully Welded
Drawbar: 1800MM Ultra-long Draw Bar for Easy Reversing
Finish: Hot Dipped Galvanized
Body: Drop Down Front/Rear Panel
Flooring: Checker Plate Floor
Lights: LED
Lights Plug: Round or Flat 7 Pin Plug

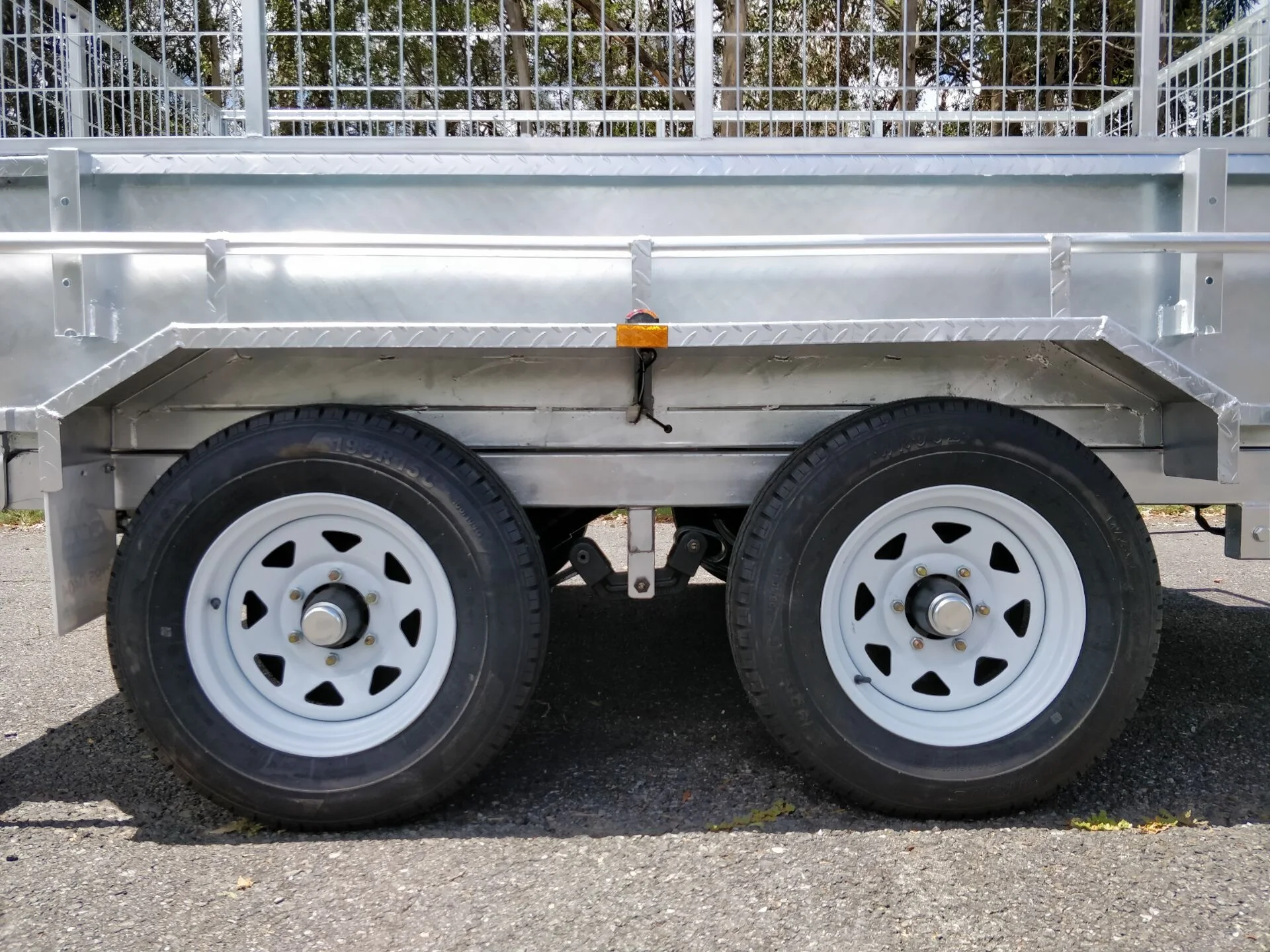

Axle: Dual 50mm Solid Round Axles
Brake: 12 Inch Electric Drum Brake With Dexter Bearing
Spring: 7 Leaf 7mm Rocker Roller Spring
Wheel: Brand New 195 R15C Wheels(Tyres&Rims)
Jockey Wheel: 8 Inch 1500lbs Swing Up
Coupler: 50mm 3500KG Coupling For Electric Brake

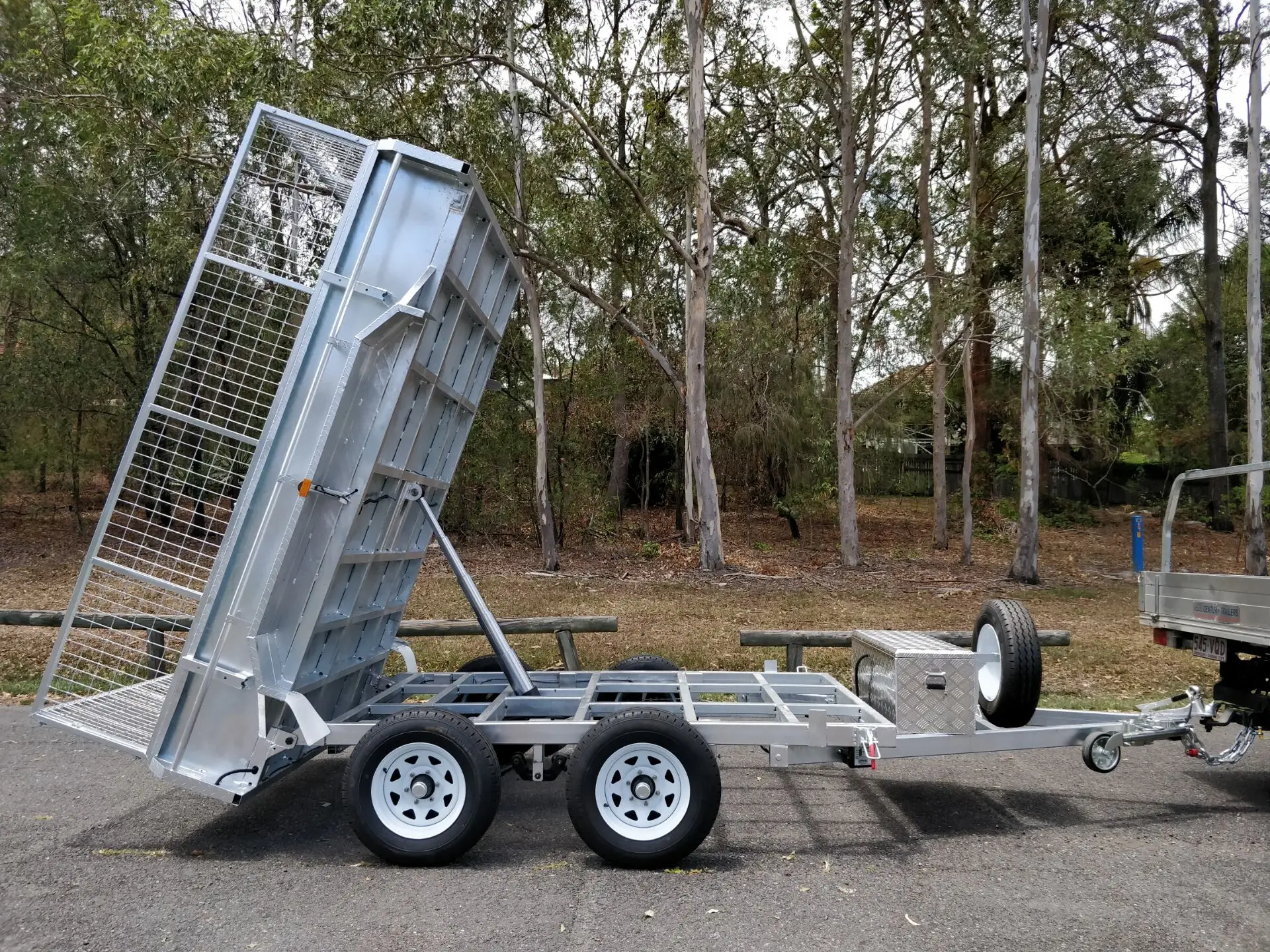

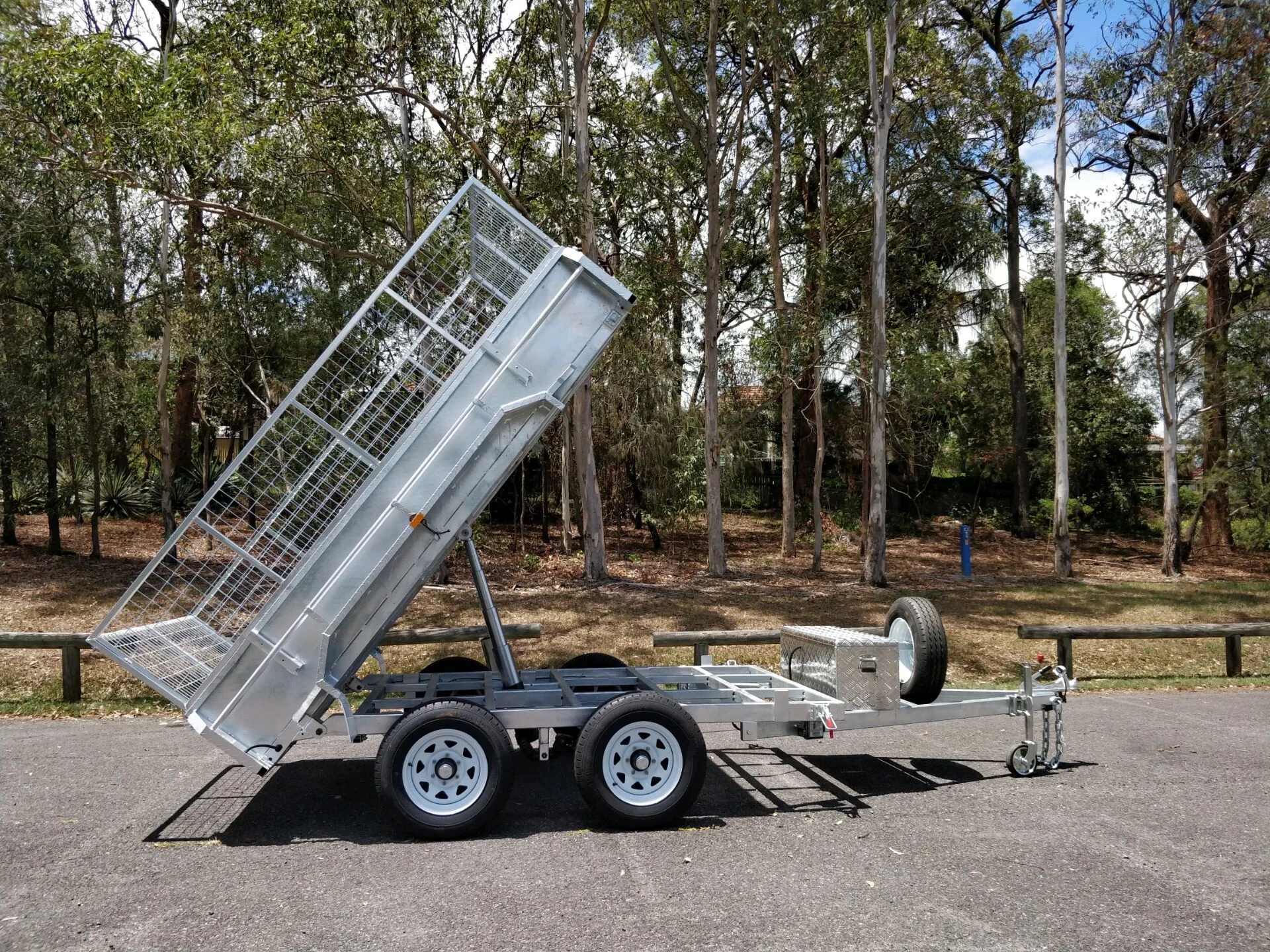

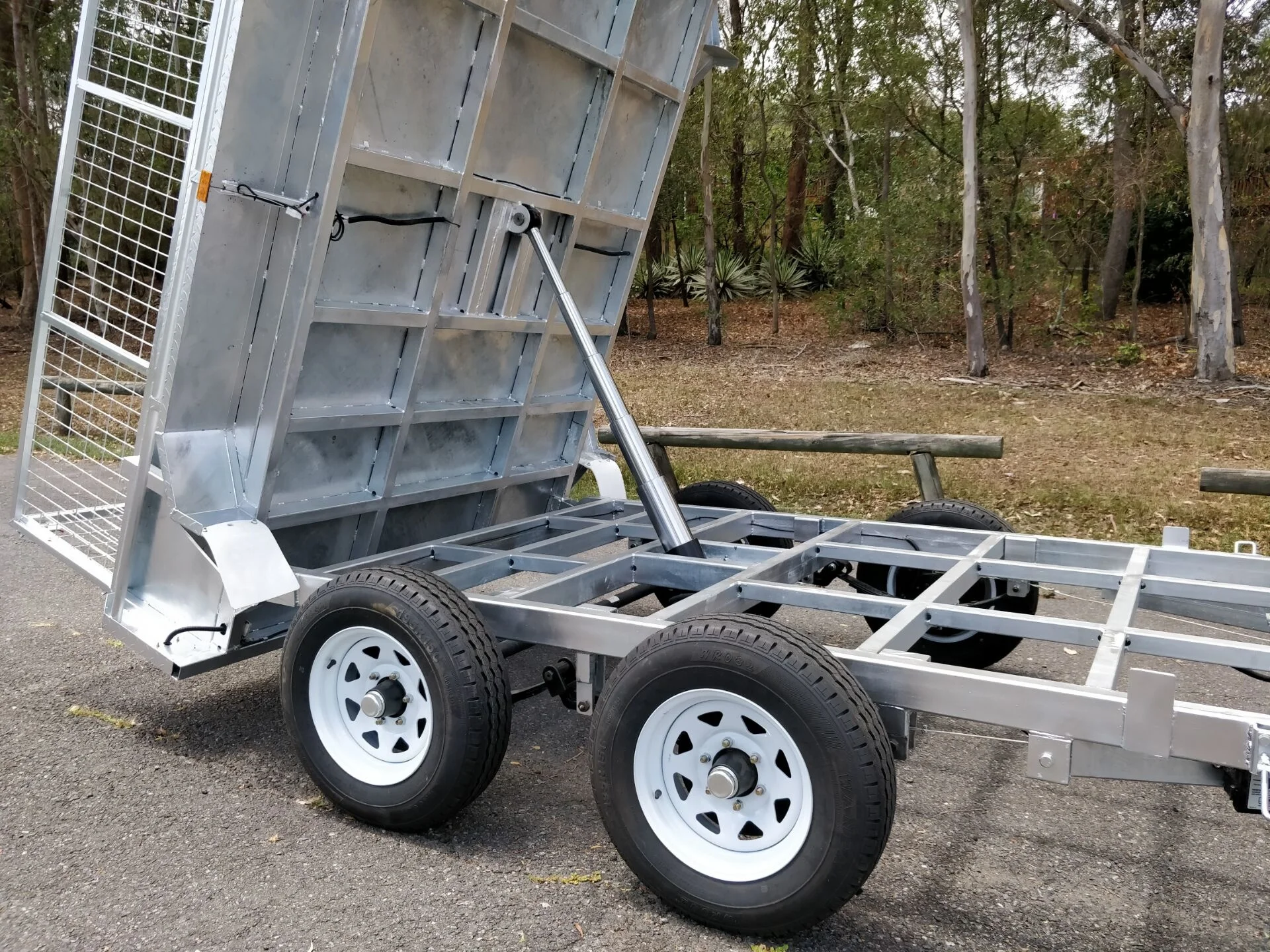

5-Stage Hydraulic Tipping Ram with 4600KG Loading Capacity
12V Automotive Battery comes with Hydraulic System
Electric Brake-away Unit Fitted
