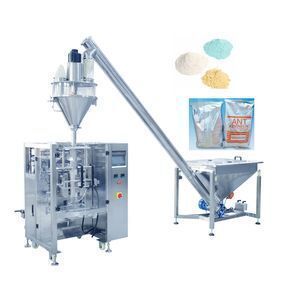

Factory Price Sachet Powder Staggered Standing Bag And Quad Sealing Bag Plaster Powder Packing Machine

Supplier: Foshan Land Packaging Machinery Co., Ltd.
Region: Guangdong, China
Contact: Mr Johnson Yang
Price: $13700.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power:	220V 50/60Hz 2KW;	Packaging Type:	Bags,Pouch,Stand-up Pouch,Film;
Application:	Beverage,Chemical,Food,Machinery & Hardware,Medical;	Film Material:	Hot seal film;
Type:	Other;	Brand Name:	landpack;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Food & Beverage Shops;	Driven Type:	Electric;
Dimension(LWH):	(L)1217(W)1015(H)1343mm;	Automatic Grade:	Automatic;
Voltage:	220V;	Supply Ability:	150 Set/Sets per Month;
Packaging Material:	Plastic,Paper,Metal;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Film thickness:	0.04-0.08mm;	Machine Material:	Stainless steel;
Film Width:	Max.420mm;	Condition:	New;
Bag Type:	Pillow Bag,Stand Pouch,3 or 4 Side Seal Bag;	Bag Length:	80-300mm;
Packing Speed:	10-60 Bags/Min;	Weight:	About 650kg;
Key Selling Points:	High Productivity;	Control:	Panasonic PLC;
Port:	Guangzhou or Foshan;	Certification:	CE Certificate;
Place of Origin:	Guangdong China;	After-sales Service Provided:	Engineers available to service machinery overseas;
Packaging Detail:	Automatic stand up pouch packing machine for food, granule 2Packing details: 1)dedust & Cleaning 2) Lubricate Drive Parts 3) Divide Machine Into Modules 4) Wrap Modules With Plastic Film 5) Packing Modules Into Plywood Cases 6)mark Shipping Mark In The Cases if Any Special Requirements, We Will Pack It As Requested;

Factory Price Sachet Powder Staggered Standing Bag And Quad Sealing Bag Plaster Powder Packing Machine

Product Description

Packing Machine Features

Main Performance And Structure Features:

LD series machine is linkage control,automatic feeding,no packing without materials,work stable.
LD series machine uses japanese technology,advanced design,easy to operate & maintain,the price is competitive
LD series machine is both domestic & foreign best seller in the past 10 years.Material conveyor design simplicity,work stable and quite.
The platform is sold will not affect the measurement accuracy of the combination weigher.
It can match with other equipment,such as production line,metal detector,check weigher,case packer,save labor cost.

Application

Suitable for packaging of various kinds of leavened food,shrimp bars,candies,peanuts,popcorns,rice and such materials in grain or piece.

Product Parameter

Specification
Type	LD-420A	LD-520A	LD-620A	LD-720A
Film Width	Max.420MM	Max.520MM	150-Max.620mm	150-Max.720mm
Bag Length	80-300MM	80-350MM	100-450mm	100-500mm
Bag Width	60-200MM	100-250MM	65-300mm	65-350mm
Packing speed	5-60bag/min	5-60bag/min	5-45bag/min	5-40bag/min
Film Roll Diameter	Max.320MM	Max.320MM	Max.320MM	Max.320MM
Measuring range	150-1500ml	2000ml	4000ml	4000ml
Power supply	220V 50/60HZ 2KW	220V 50/60HZ 3KW	220V 50/60HZ 3KW	220V 50/60HZ 3KW
Machine Size	121710151343mm	148810801490mm	148811801550mm	178013502050mm
Film thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm

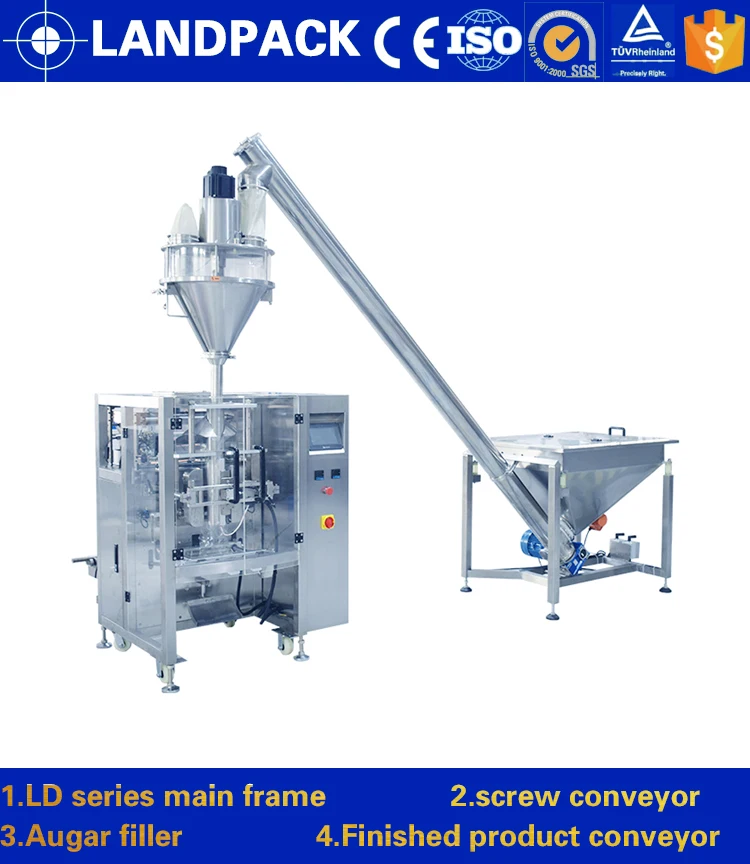

Optional Device
1.LD series main frame	2.Z type bucket elevator
3.supporting platform	4.select scales
5.disk transportation feeder	6. 10 heads weigher
7.vibration feeder	8.finished product conveyor
9.metal detector

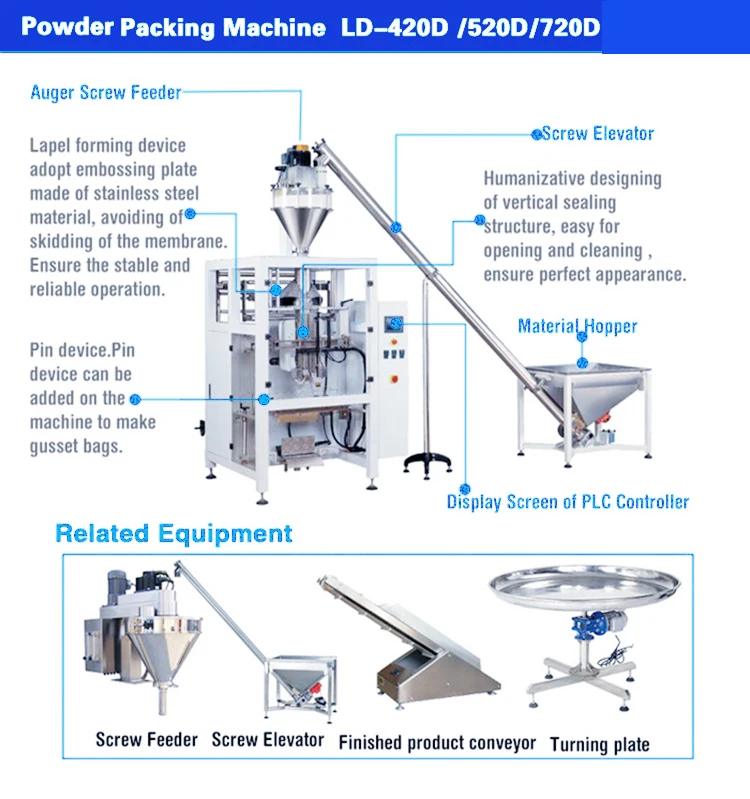

Product Details

packing machine detail

Similar granular product packaging machine

Packaging Detail

After-sale Service

Training Support	Warranty	Engineers Support
Videos of machine installation, adjusting, setting, maintenance	One year guranty for machine, two years guaranty for electrical part.	Engineers available for oversea service

Quality Test

1Parts Assembly Test		2 Machine Assembly Test		3 Electrical Control Test		4 Finished Product Test
All the parts will be test when first assembly		When the parts install on machine,will be second test		Third,electrical control system test according to international standards		When the whole machine fininsh assembly,test the packaging effect

Company Information

Our Company

FAQ

Q1:What is your Installation Services?
Installation Services are available with all new machine purchases.
We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Q2:What about your Guarantee of quality ?
A:The machine is 1 year warranty, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service
Q3:How about the after-sale service?
(1)More than 12 hours after-sale online service one day.
(2) we have engineers available to service machinery overseas.The service charge, include: service fee USD100/day, VISA fee, board round-trip ticket, room and eat in are buyer's side.
Q4: How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
Q5:Do you also offer the wrapping film?
Yes, we can offer you the plastic roll film, we have a long term cooperated supplier for roll film and the price is favorable.
Q6:If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-design provided.
Q7: If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical department can help to analysis, design and test the new products you offered.
Q8:Can I visit your factory?
Sure, Our factory address : Plant 6-11, Floor 1, Building C7 Of New Lighting Source Industrial Base, Langsha, Luocun, Shishan Town, Nanhai Dist, Foshan, Guangdong, China
