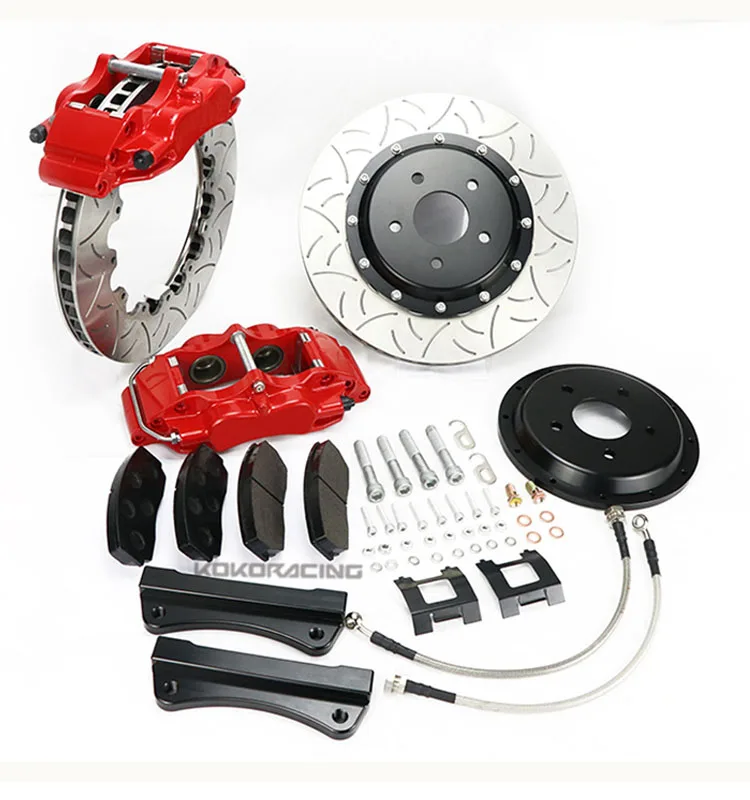

Modified racing brake system WT5200 4-pot big hydraulic brake caliper

Supplier: Guangzhou Wantian Industrial Co., Ltd.
Region: Guangdong, China
Contact: Ms chen yee
Price: $462.00 /set
Min. Order: 1 set

Click here to contact

Product details

Single package size:	46X46X30 cm;	wheel:	17";
Place of Origin:	Guangdong China;	Color:	Red;
Selling Units:	Single item;	MOQ:	1 sets;
Size:	330*28mm;	Model Number:	Auto Brake kits;
Package Type:	Neutral Packing/Customized Packing;	Packing:	Neutral Packing;
Brand Name:	KOKORACING;	OE NO.:	Customer;
Single gross weight:	28 KG;	Warranty:	1 years;
Type:	Brake Calipers;	Certification:	ISO9001 and Tuv;
Quality:	High Level;	Car Model:	for all car;
Number:	CP5200;	Product name:	Brake Calipers;

Modified racing brake system WT5200 4-pot big hydraulic brake caliper

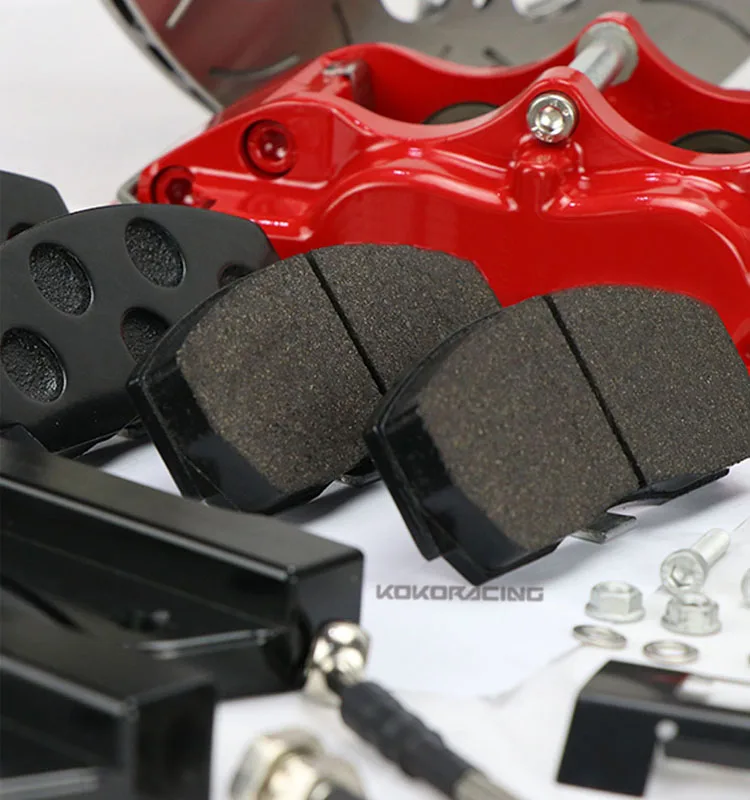

Brake Pad Information (To view larger image of pad click on Pad Part No)	CP3215D50 - Pad Area = 57.4cm² - Pad Depth = 50.3mm - Thickness = 16.8mm
CALIPER TECHNICAL SPECIFICATIONS
Piston Sizes - mm	- Ø38.1 x 2 - Ø41.3 x 2
Piston Area - cm³	49.56
Disc Diameter - mm	- Max = Ø330.0 / - Min = Ø304.0
Disc Thickness - mm	- CP5200-802 to -805 = 32.0 - CP5200-806 to -809 = 28.0 - CP5200-810 to -813 = 32.0
Weight (no pads) - Kg	2.4
Hydraulic Threads	M10x1.0
Mounting Type	Radial
Mounting Centres - mm	152.0
Mounting Offset - mm	- CP5200-802 to -805 = 50.93 - CP5200-806 to -809 = 46.86 - CP5200-810 to -813 = 50.93
Mounting Hole Ø - mm	10.1
‘PL’ Dimension - mm	60.36
Bleed Screw Tightening Torque	17Nm
CALIPER SPARES
Pistons	CP5200-802 to -805 & -810 to -813 - Ø38.1 = CP2409-124 - Ø41.3 = CP2290-50 CP5200-806 to -809 - Ø38.1 = CP2889-105 - Ø41.3 = CP3357-111

CP5200 Family - 152mm Mounting Centres - 16.8mm thick pad

Applications:
- Performance Road Front.
- Factory Brake Kits.

Features:
- Radial Mount, 152mm centres.

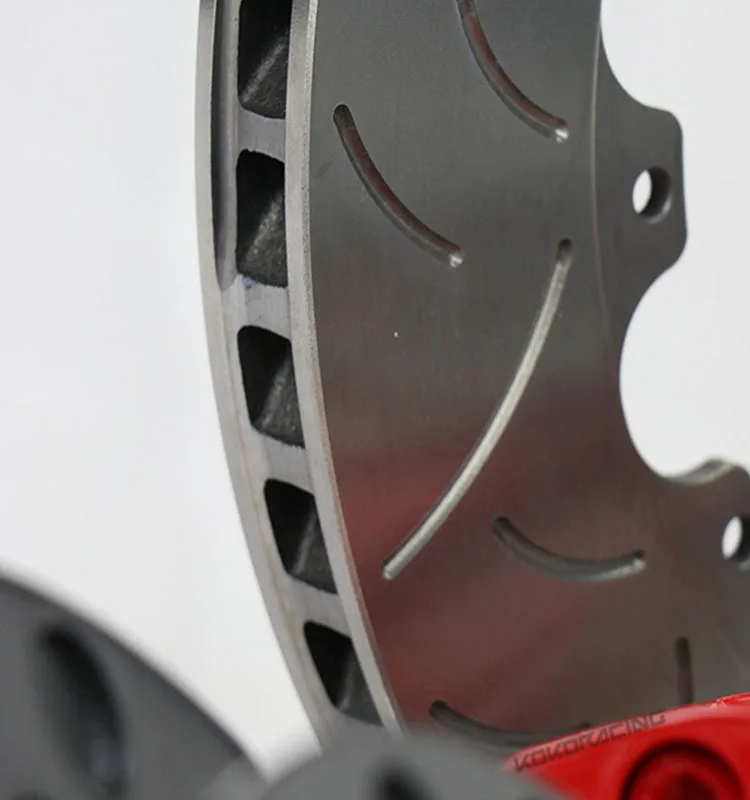

- Suits Ø330 max / Ø304 min x 32 or 28mm thick discs.

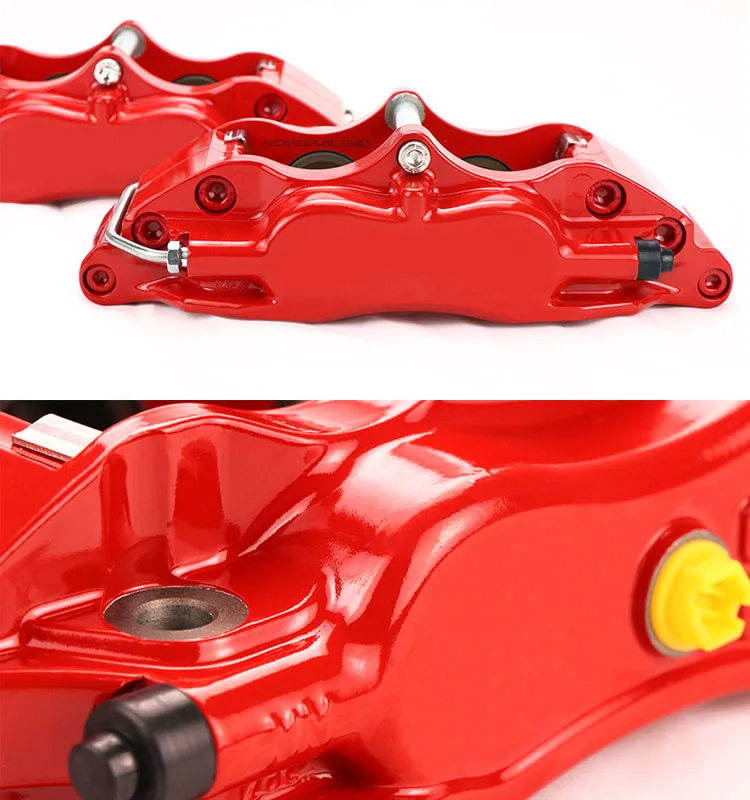

- Cast two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Piston dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Steel wear plates.
- Pad anti-rattle clip fitted.
