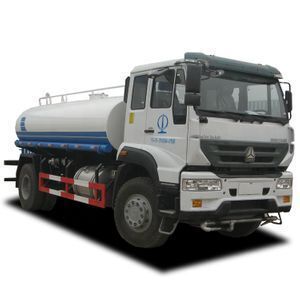

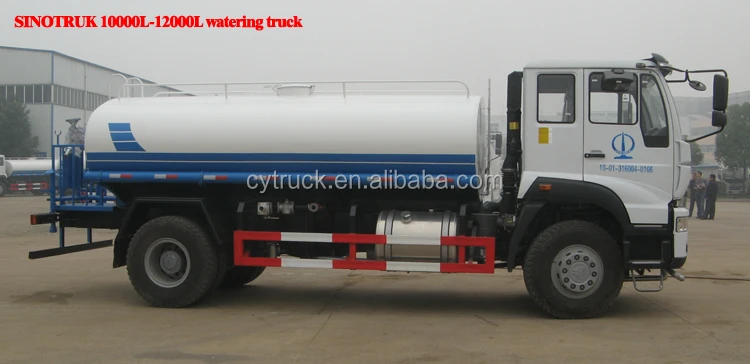

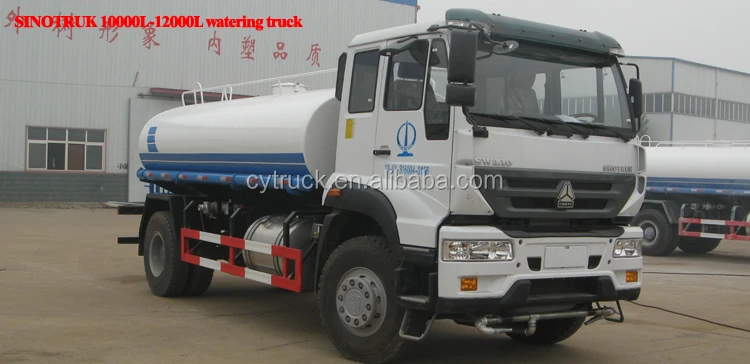

SINOTRUK 10000-12000liters watering car,6 wheel Road greening sprinkler of city,midsize municipal Landscaping water tank truck

Click here to contact

Product details

After-sales Service Provided:	No overseas service provided;	Certificate:	CCC,CNAS,IAF,ISO9001;
Transmission Type:	Manual;	Battery:	Camel;
Fuel:	Diesel;	Sprinkling Area (m):	> 16 m;
Product Name:	watering truck;	Warranty:	1 year;
Fuel type:	diesel;	Brand Name:	SINOTRUK;
Power:	118kw;	Motor:	MC05.16-50;
Place of Origin:	Hubei China (Mainland);	Packaging Detail:	KD packaging, parts packaging, A/S packaging, full vehicle packing;
Name:	water tank car;	Gross Vehicle Weight:	16000;
Color:	White-blue;	Dimensions (L x W x H) (mm):	870025003180;
Certification:	CCC,CNAS,IAF,ISO9001;	Drive Wheel:	4x2;
Condition:	New;	Supply Ability:	500 Set/Sets per Month;
Payment Terms:	D/P,T/T;	Dimension (LWH):	870025003180;
Engine Capacity:	4 - 6L;	Max speed:	99;
Tank Volume:	10001 - 15001L;	Port:	any port in china;
Emission Standard:	Euro 4;

Vehicle model	XZL5167GPS5	Chassis Model	ZZ1167K501GE1
Outer size	870025003180	Wheelbase	4500
Total mass (kg)	16000	Rated quality (kg)	8305
curb weight (kg)	7500	axle numbe	2
Engine type	MC05.16-50	engine power	160HP
Tire size	10.00R20	Number of tires	6+1
tank volume	10000L-12000L	thickness of the steel plate	5mm
Scoop up way	Lateral force-taking of gearbox	absorption and drainage	water of Automatic absorption and drainage
Type of sprinkler pump	60/90	Water depth	7meters
pump flow	60m³/h	Pump head	90meters
Sprinkler width	>=15meters	Sprinkler range	>=30meters

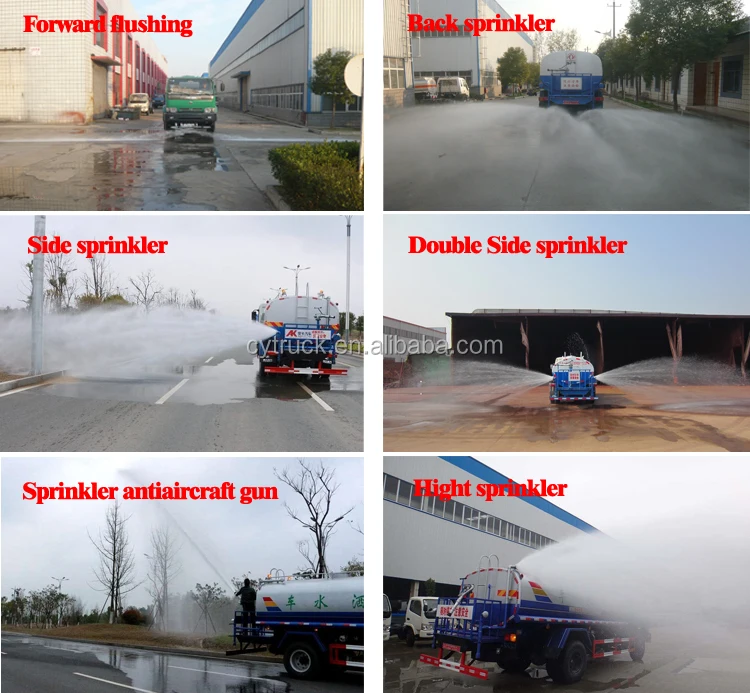

Sprinkler way	The back of the sprinkler:Mainly used for dust removal in places such as highways. The side of the sprinkler:Mainly used for roadside greenbelt watering. Squirt guns: It can rotate 360 degrees, and can be adjusted into column shape, or into heavy rain, moderate rain, light rain, drizzle, column shape. Maximum range of 25-30 m
water way	1,Water in the pond (or other water source) is sucked into the tank through the on-board high-power sprinkling pump. 2,Direct water from the irrigation port into the tank. 3,Connect the fire hydrant and put water into the tank.
