Warranty: | 12 Month; | Protection: | IP20, IP21; |
Brand Name: | XPD; | Place of Origin: | Jiangsu China; |
Product name: | 75kw soft starter; | Applicable power of motor: | 7.5-22KW; |
3 phrase: | 380V(-10%, +15%), 50/60HZ; | Model Number: | XPDA; |
Port: | Shanghai; | Certificate: | ISO 9001/CE/IEC/TUV; |
Application: | fans, pumps, transport class, compressor, other load-type machinery; | Input frequency: | 50/60HZ; |
Rated current: | accroding to load; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |

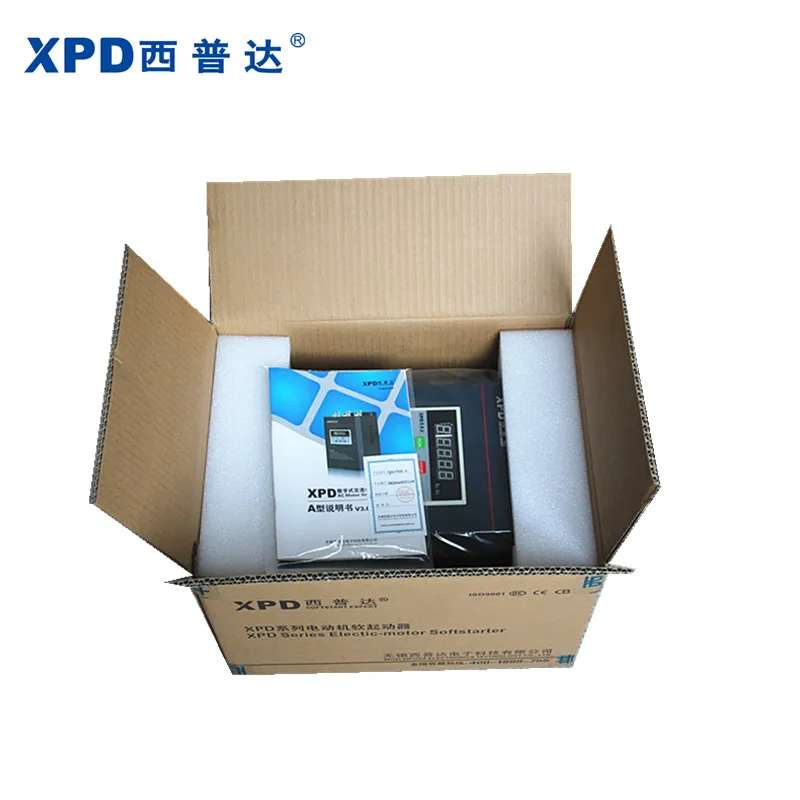

Weight: | 10kg; | Packaging Detail: | carton package; |
Supply Ability: | 500 Unit/Units per Week ac motor soft starter; |
75kw soft starter
XPD series of digital AC motor soft starter is a new international advanced level equipment which adoption of power electronics technology, micro-processing technology and modern control theory design and production.
The product can effectively limit the starting current when the asynchronous motor starts.
Widely used in fans, pumps, transport class and the compressor and other load-type machinery.
Product Character
Starting mode
Different starting mode and parameter setting can be selected according to characteristics of the load. The softer starter can optimize the starting effect of the motor to the most extent.
High technology performance
The control circuit is simplified by adopting high performance microprocessor and powerful software support function. Consistent, accurate and quick speed of execution can be obtained without adjusting the circuit parameters.
High reliability
All electric elements of the XPD series smart soft starter are filtrated strictly, and the master control board has been circle tested for 72 hours at high temperature and vibration tested, and thereby the high reliability of the product can be guaranteed.
Structure optimized
Scientific and reasonable modular structure and main terminal connection is three in and six out, highly integrated, small size, convenient for user to friendly integration, complete sets.
Control terminal adopts plug type, wiring is more efficient.
Set up function of keyboard
Convenient and visualized operation display keyboard can be used to set up and modify the start, stop, operation and protection parameters according to different loads.
Protection function
The XPD series smart soft starter can provide the motor with protective functions of open-phase, overload, over current,excess starting time and three phase current balance degree and so on.
Build in 12v power supply,simulating 4-20mA current output,setting up the function of soft stop.
Product Function
* Reduce starting current of the motor and decrease capacity of power distribution to avoid investment in the capacity increase.
* Reduce starting stress and prolong service life of the motor and relevant equipments.
* With Multi-starting mode, wide range current and voltage, the smart soft starter can adapt multi-loading condition and can improve technology.
* Powerful and complete performance,guarantee the reliable operating of load equipment.
Connection diagram of peripheral devices

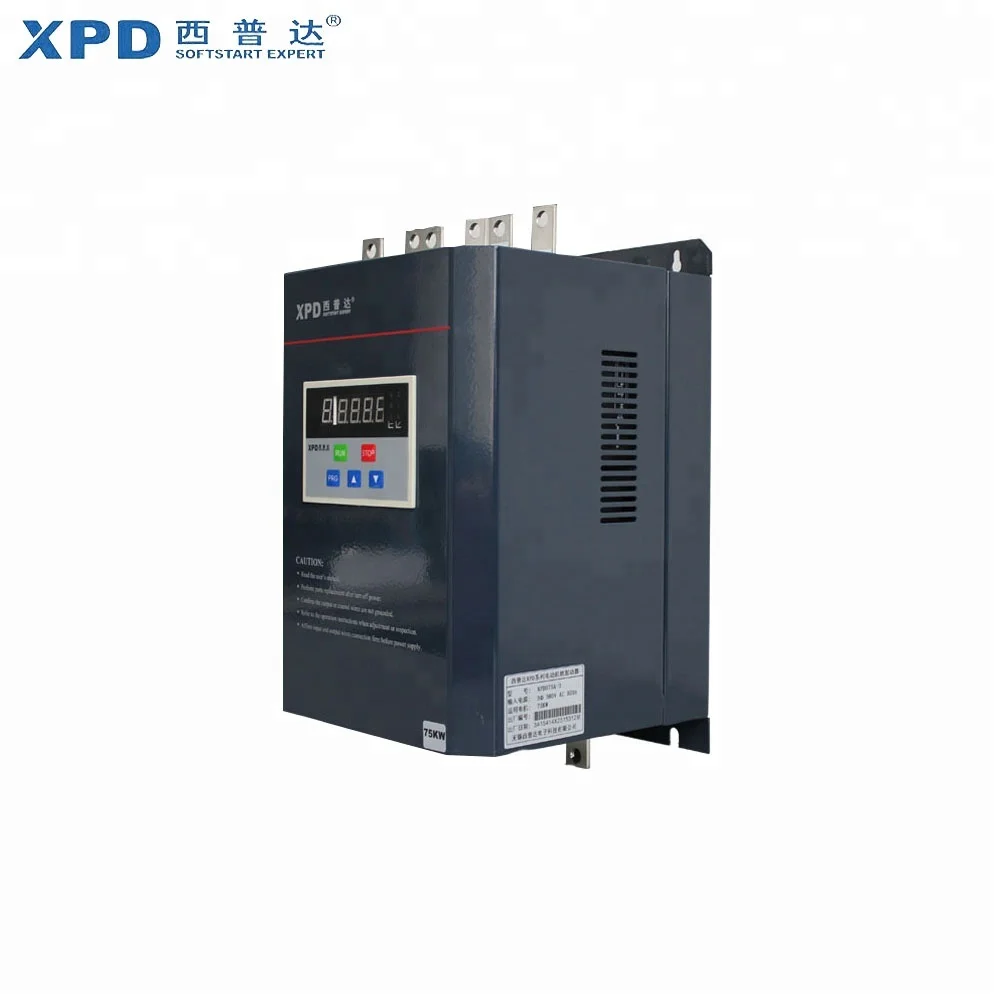

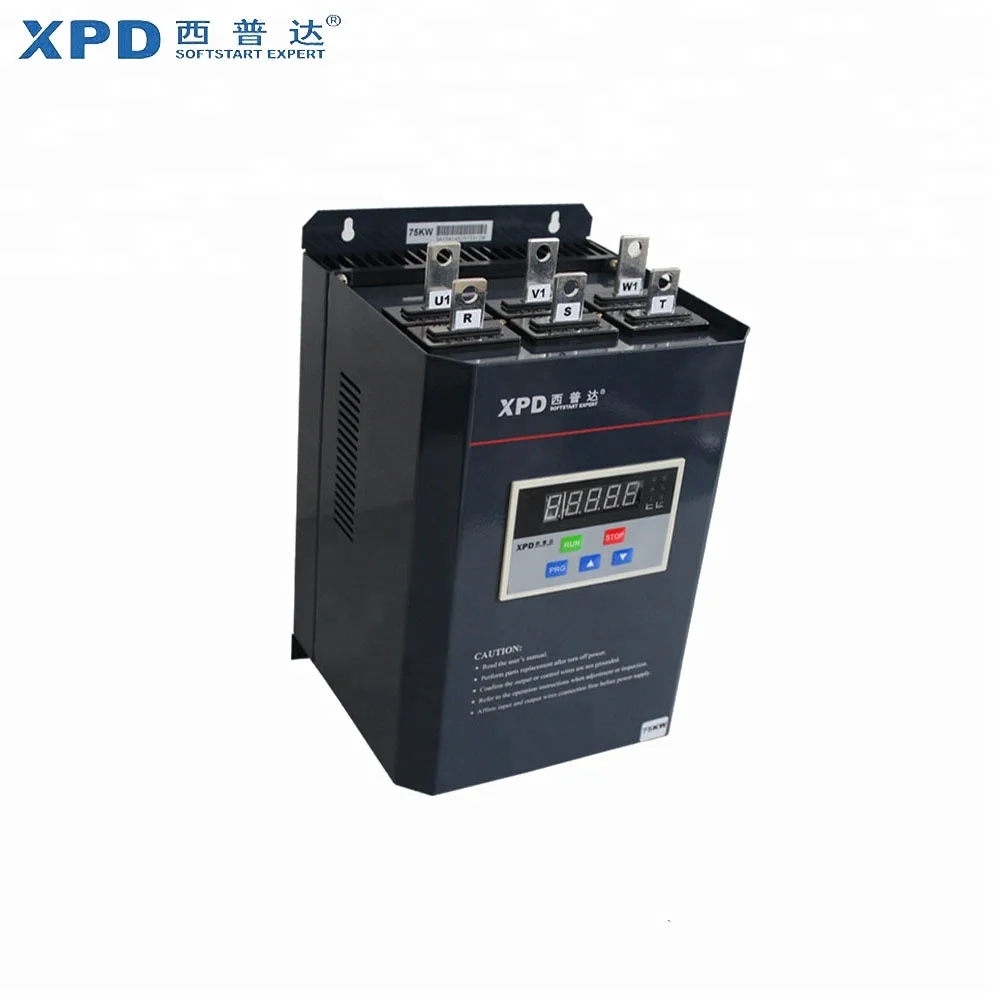

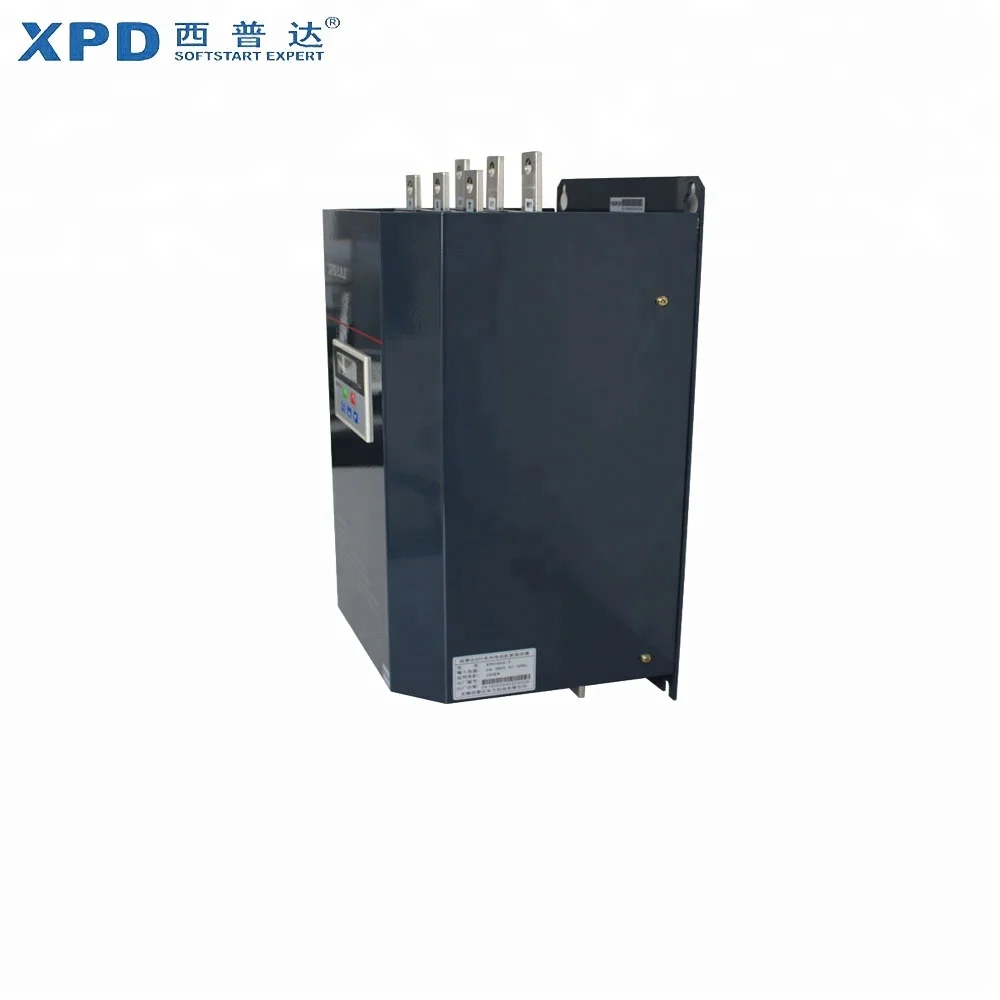

Product Pictures:
Data Sheet:
Model | Adaptive motor | Rated Current | Dimension |
(KW) | (A) | width×hight×thickness | |
XPD008A-3 | 7.5 | 15 | 206×322×195 |
XPD015A-3 | 15 | 30 | |
XPD022A-3 | 22 | 45 | |
XPD030A-3 | 30 | 60 | |
XPD037A-3 | 37 | 75 | |
XPD045A-3 | 45 | 90 | |
XPD055A-3 | 55 | 110 | |
XPD075A-3 | 75 | 150 | |
XPD090A-3 | 90 | 180 | 260×463×213 |
XPD110A-3 | 110 | 220 | |
XPD132A-3 | 132 | 260 | |
XPD160A-3 | 160 | 320 | |
XPD187A-3 | 187 | 395 | 300×490×242 |
XPD200A-3 | 200 | 400 | |
XPD250A-3 | 250 | 480 | |
XPD280A-3 | 280 | 550 | |
XPD320A-3 | 320 | 620 | |
XPD400A-3 | 400 | 720 | 472×530×306 |
XPD450A-3 | 450 | 850 | |
XPD500A-3 | 500 | 1000 |

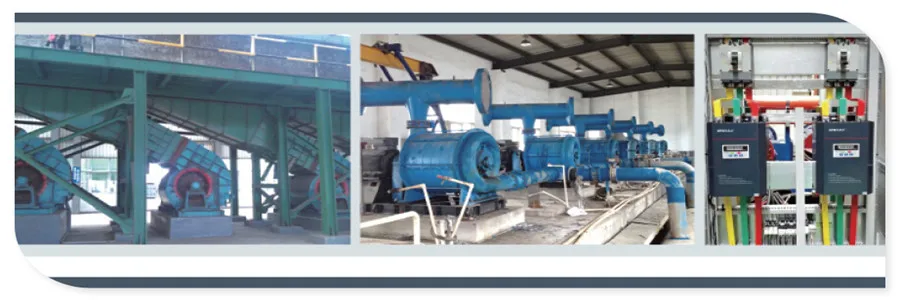

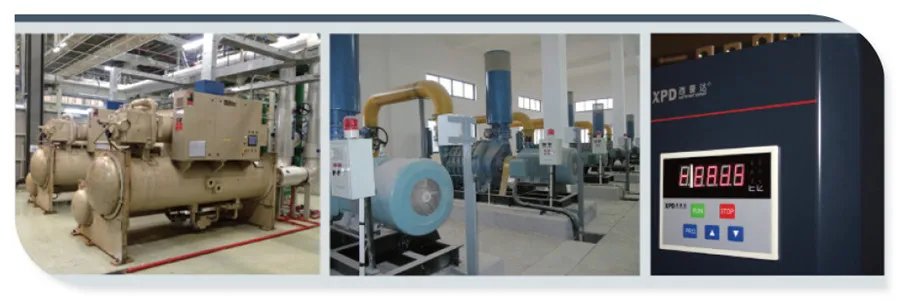

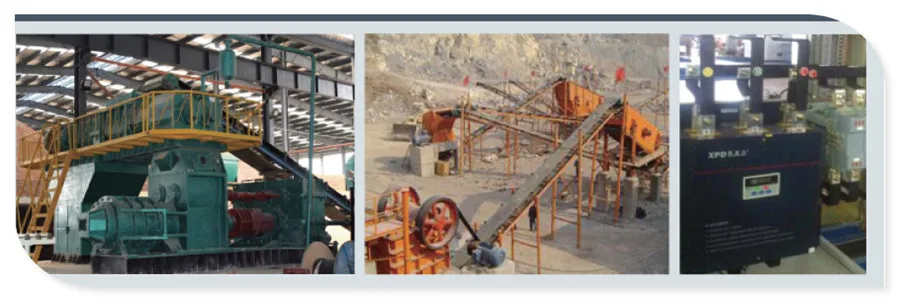

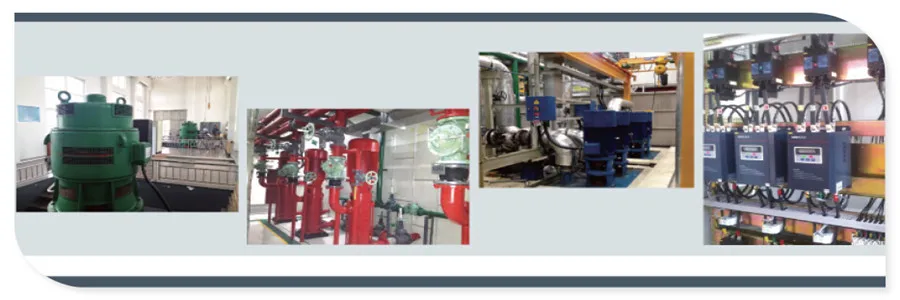

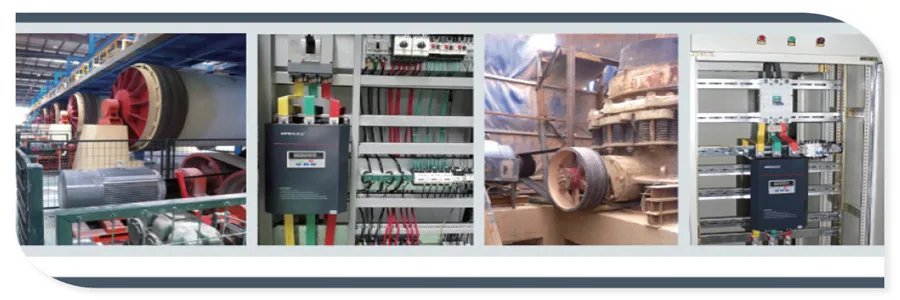

Application:
