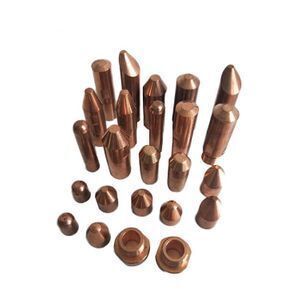

resistance welding Electrode Cap Tip price
-
Supplier: Fivestar Welder & Copper (Jiangyin) Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr Joe Miao -
Price: $0.20 / >=5 pieces -
Min. Order: 5 pieces
Product details
| Model: | FSCA054; | Place of Origin: | Jiangsu China; |
| Standard: | R.W.M.A Class 2, 3, 4; | Softening temperature: | min. 480℃; |
| Packing: | Wooden Packing; | Material: | CuCrZr, CuBe2, or According to requirements; |
| Payment Terms: | L/C,T/T; | Packaging Detail: | Normal wooden packing or as customer's request; |
| Hardness: | 135-170 HB 10/2,5; | Name: | Factory Direct Welding Electrode Cap; |
| Place of Origin: | CN;JIA; | Supply Ability: | 5000 Piece/Pieces per Month; |
| Size: | Customized; | Conductivity: | min. 80% IACS MS/ m; |
| Port: | Shanghai; | Brand Name: | Fivestar; |
| Model Number: | FSCA054; |
Product Description
| Product Name | Factory Direct Welding Electrode Cap |
| Material | CuCrZr, CuBe2, or According to requirements |
| Material no. UNS (ASTM) | C18150, C17200, or According to requirements |
| Material description | Age hardenable Cu alloy with high electrical and thermal conductivity under a high degree of hardness and strength. |
| Size | According to customer's requirements |
| Application | Spot Welding |
Types of Welding Electrode Cap
| Pointed | Tapered from the full-diameter electrode shank to required size and with a flat surface, holds its shape well, but is difficult to dress in the machine unless a dressing tool of the exact taper is provided |
| Flat | Employs the full shank or stock size at the welding surface |
| Dome | Used for less precise work where easy dressing is of advantage. the dome shape provides a greater approach to the flat surface of the work |
| Offset | Used to make a spot weld closer to a vertical wall that is possible with a straight tip. the offset of the tip should be as slight as possible, as the electrode force or the compression load at the center line of the electrode axis will tend to cause bending of the tip. since the tendency of the electrode is to skid or deflect as the offset distance from the center of the electrode axis increases, offset tips should not be used except when required. |
| Radius | Used for the welding of aluminum and for many other precise applications because of the superior results to be obtained. the spherical surface is easier to clean without removing from the machine, will withstand higher pressures with less deformation and is more readily aligned in the holders. |
We can also produce CUSTOM MADE WELDING ELECTRODE CAPs according to your requirements.

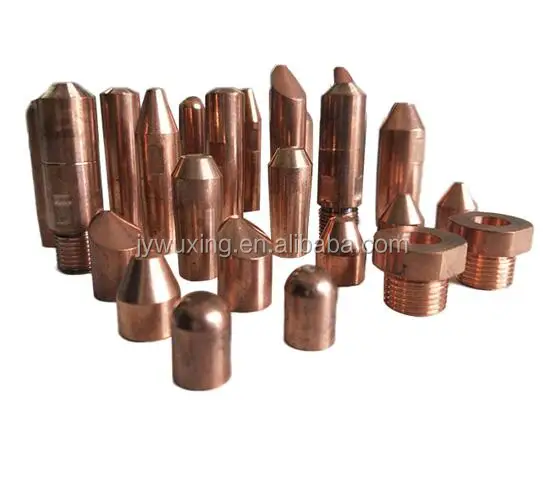

Product Show
