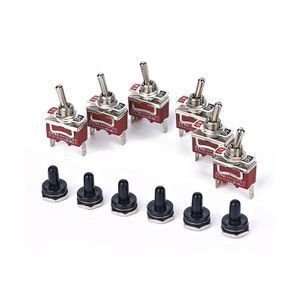

UL Approved Quick Connect Terminal SPST ON OFF Toggle Switch

Product details
Packaging Detail:Carton Box: 38*22*37(cm) 600pcs/carton; 720pcs/carton;Reset form:Hand reset;
Operating temperature:-25-80 degree;Contact form:Single throw ON-OFF;
Payment Terms:L/C,T/T,Western Union,Paypal;Supply Ability:2000 Piece/Pieces per Day;
Port:Ningbo or Shanghai;Max. Current:15A;
Max. Voltage:250VAC;Electrical life:100,0000 times above;
Certifications:UL TUV CCC CE RoHS;Place of Origin:Zhejiang China;
Waterproof:With protecting cap;Pole:Single-pole;
Model Number:XT-11A;Protecting degree:IP40;
Rating load:15A/250VAC;Mechanical Life:500,000 times above;
Terminal forms:Solder type;Brand Name:XURUI;
Features
  • Adopt thermoplastic crust, compact construction and simple installation.
  • May install the protecting cap, can against oil and dustproof.
  • Hand reset and automatic reset for flexible choice.
  • Widely used in electrical equipment, automatic machine, communication equipment and instrument, electro motion tool etc.
Model & Meanings

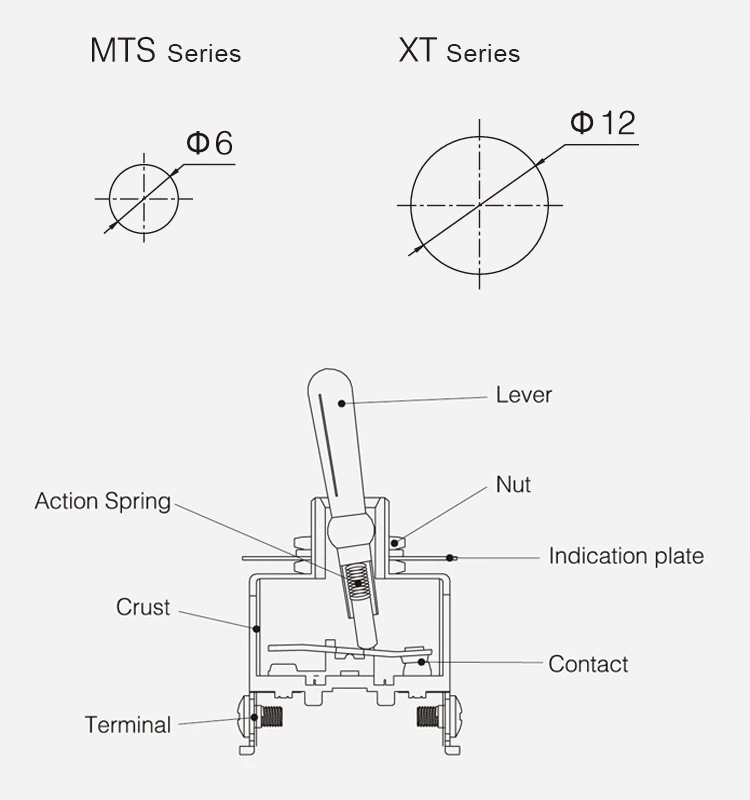

Mounting Holes & Product Structure

Specification
ItemData
Rating LoadMTS: 6A/125V, 6A/250V
XT: 15A/250VAC, 25A/250VAC
Operating Frequency30 times/min
Insulation Resistance100MΩ (above) DC500V
Contact Resistance25mΩ(initial value)
Withstand VoltageNon-connection Wire1000VAC
Every Terminal1500VAC
VibrationMisoperation10-55Hz Amplitude 1.5mm
ImpactDurable1000 m/s²
Misoperation300 m/s²
LifeElectrical100,000 above
Mechanical500,000 above
Protection DegreeIP40
Operation Temperature-25~+80 ℃
Operation Humidity< 85%
Terminal Forms

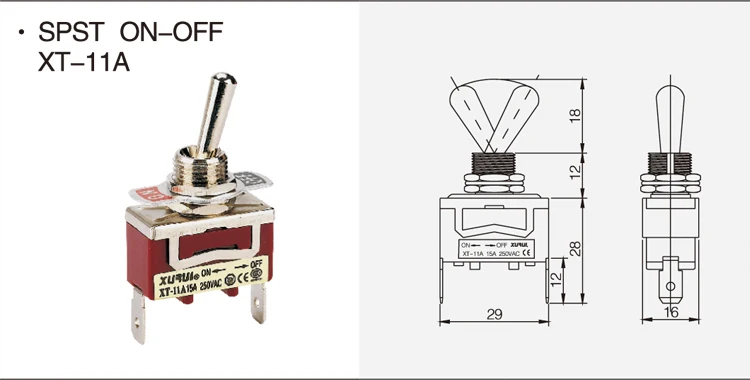

Dimension

Certifications

Why Choose Us
  • Quality Assurance: We offer replacement if you receive defective or wrong items in 12 months from the shipping date.
  • Supplied directly from factory with more than 16 years experience.
  • Short Delivery Time: Stock in 2 days, order as short as 7 days.
  • Small order welcome.
  • Payment by Paypal, Western Union is supported.
Company

Zhejiang Xurui Electronic Co., Ltd, established in 2002, is specialized in the research, development, production of industrial products.



Xurui has a modern workshop covering more than 2,000 square meters. There are about 120 employees, incuding more than 10 years experienced technicians.



Main Products: 1. Micro Switch; 2. Limit Switch; 3. Toggle Switch; 4. Foot Switch; 5. Solid State Relay; 6. Reed Switch; 7. Proximity Switch.



Main markets: Europe, America, Australia, Asia, Middle East and so on.

Production

Exhibitions

FAQ

Q: How do you control the products' quality?

A: 100% auto inspection machine and manual test together before packing.



Q: Would you accept to use our logo?

A: If you have good quantity, we would like to do OEM and ODM, customized specification.



Q: Can I get a sample for reference?

A: We are glad to send the samples for testing. Samples are free, but you may need to pay the express cost.



Q: What's your delivery time?

A: Normally it takes 15-20 working days for production. If we get stock, it only takes two days.
