Weight: | ~20000kg; | Applicable Industries: | Manufacturing Plant,Energy & Mining,Other; |
Press Box Size: | 2000*1400*900mm; | Payment Terms: | L/C,T/T,Western Union; |
Key Selling Points: | Easy to Operate; | Packaging Detail: | The big part of the hydraulic metal baler machine will be packaged by plastic firm. Some smaller parts of hydraulic metal baler machine will be packaged by wooden case.; |
Port: | Shanghai Port; | Material / Metal Processed: | Brass / Copper,ALLOY,Aluminum,Carbon Steel,Stainless Steel,Other; |
Product Keywords: | metal baler,horizontal baler,hydraulic metal baler; | Power (kW): | 44; |
VOLTAGE: | 220V/380V/440V/415V/Customized; | After-sales Service Provided: | Free spare parts,Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service; |
Warranty: | One Year Service; | Warranty: | 1 year; |
Condition: | New; | Bale Size: | 450*450mm; |
Weight (KG): | 20000; | Main Force: | 250 Tons; |
Motor power: | 22Kw*2; | Model Number: | Y81-250-01-d0a7; |
Brand Name: | YMS; | Supply Ability: | 5 Set/Sets per Month; |
Place of Origin: | Jiangsu China; | Function: | Compress Big Size Metal; |
Operation: | Manual Operation; |

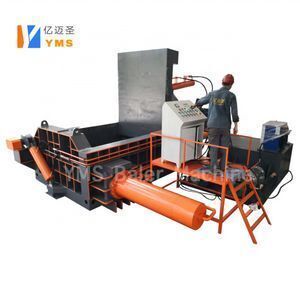

2. Specification of the Y81-250
SPECIFICATION | |
Model | Y81-250 |
Main Power | 22Kw*2 |
Oil Pump | 160ml/r*2 |
Voltage Supply | 380V/3phase/50Hz (Customized) |
Main Pressure Force | 2500Kn (250Ton) |
Compression Chamber(L*W*H) | 2000*1400*900mm |
Bale Size (W*H) (Steel Scrap) | 450*450*(500~900)mm |
Bale Weight (Steel Scrap) | ~300Kg |
Bale Density (Steel Scrap) | ~1.8 t/m3(Density varies with what and how much metal scrap to press) |
Bale Capacity (Steel Scrap) | ~4500 kg/hour (Including the feeding time) |
Single Cycle Time (No-Load): | ~120S |
Bale-discharge | Turn-out |
Machine Operation | Manual operation |
Host Overall Dimensions (L*W*H) | ~6000*4400*3200mm |
Machine Weight (Approx.) | 21,000Kg |
Oil Capacity | 2800L ( hydraulic oil ideal working temperature requirement: 20℃~55℃ ) |
Oil Band | 46# or 68# Abrasion-resistant hydraulic oil.(-10℃~60℃ ) |
Loading Container | 20GP+40FR Container could load one set. |
Notes: | |
All mentioned capacity are based on our previous experience and knowledge. A final statement to the capacity is only possible after a test with original material. Bale size, Compression chamber , Bale-discharge and Machine operation could be Customized. |
3. Feature of the Y81-250
l Fully automatic working cycle
l Customized Compression Chamber and bale size.
l Easy operated by one operator with remote control.
4. Components of the Y81-250
STANDARD COMPONENTS | ||
Mechanics-M | Hydraulics-H | Electrics-E |
M-1.Main unit Frame | H-1.Hydraulic oil tank | E-1.Electrical cabinet |
M-2.Compression chamber | H-2.Motor and Pump | E-2. Operate panel with buttons |
M-3.Main cylinder | H-3.Valve system | E-3. Instrumentation & Safety devices |
M-4.Side cylinder*2 | H-4.Over heating protection |
|
M-5.Turn cylinder | H-5.Oil filter |
|
M-6.Cover cylinder | H-6.Air filter |
|
M-7.Lock cylinder | H-7.Hydraulic gauge |
|
5. Main Application of the Y81-250
DELIVERY
The standard Automatic baler is about 50 days after receiving the deposit..
If customized machine, delivery time depends on the negotiation with both.
SHIPPING
Before loading, all parts of the automatic baler will be film wrapped, and firmly fixed in the container by the steel wire.
Shipped by sea or train.
WARRANTY
This automatic baler machine is guaranteed for 12 months.
Warranty shall start at time of initial installation at customer’s location, and not later than 15 months from delivery date.
Within the guarantee period, in the event of any malfunction caused by the quality of the commodity, We will replace defective parts free of charge.Defective parts are to be returned to YMS (Seller). Wear parts are exclusive from this warranty. We also provide technical support and parts sell for the whole life span of the automatic baler machine.
