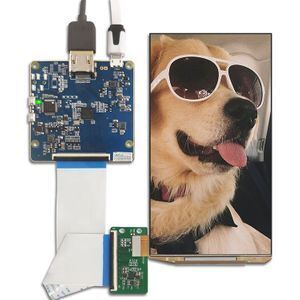

high resolution 5.5 inch oled lcd display driver board HDMI to mipi 1080x1920 oled screen price

Product details
Port:Shenzhen;Brand Name:Wisecoco;
Refresh Rate:60Hz;Supply Ability:10000 Piece/Pieces per Month;
Interface:mipi display;Viewing Angle:80/80/80/80;
Light Source:self;Packaging Detail:Electrostatic bags, foam packaging, cardboard boxes;
Resolution:1080x1920 oled;Place of Origin:Guangdong China;
Treatment:Hard coating;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Brightness:350cd/m2;Model Number:5.5 inch oled;
Active Area(mm):68.256(w)*121.344(H) mm;Contrast Ratio:10000:1 (Min.) (TM);
Size:5.5 inch oled display;

Product Description:

high resolution 5.5 inch oled lcd display driver board HDMI to mipi 1080x1920 oled screen price

General Features

Screen Size

5.5 inch

Type

AM-OLED, OLED

Pixel Number

1080(RGB)×1920 (FHD)

Configuration

RGB Vertical Stripe

Active Area(mm)

68.256(w)×121.344(H) mm

Outline(mm)

73.56(W)×148.86(H)x1.92(D) mm

Bezel Area(mm)

-

Treatment

 Hard coating

Luminance

350 cd/m² (Typ.)

Contrast Ratio

10000:1 (Min.) (TM)

View Direction

Symmetry

Response Time

-

Viewing Angle

80/80/80/80 (Min.)(CR≥480)

Operating Mode

-

Support Color

16.7M

Light Source

self

Outline Shape

-

Used for

Raspberry Pi

Refresh Rate

60Hz

Touch screen

Without

Voltage Supply

1.8/3.0/4.6/7.6V (Typ.)

Signal Type

40pins  MIPI (4 data lanes) ,

Environment

·         Storage Temp.: -55 ~ 125 °C    Operating Temp.: -40 ~ 85 °C
