After-sales Service Provided: | Engineers available to service machinery; | Packaging Detail: | Frame Packaging or Customer Requirements; |

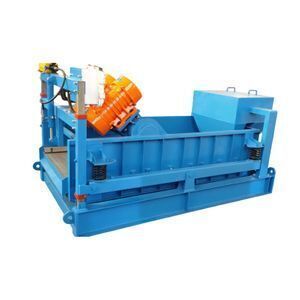

Product name: | Drilling Fluid Shale Shaker; | Place of Origin: | China; |
Keywords: | Drilling fluid Shale shaker; | Supply Ability: | 30 Set/Sets per Month; |
Brand Name: | RL; | Dimension(L*W*H): | 2700*1800*1500mm; |
Condition: | New; | Color: | BLUE ,WHITE; |
Certification: | ISO; | Warranty: | 1 year; |
Model Number: | 5; | size: | 2700*1800*1500mm; |
After-sales Service Provided: | Online support; | Material: | Carbon steel / 304 stainless steel; |
Payment Terms: | T/T; | Applicable Industries: | Energy & Mining; |
Application: | Drilling fluid Shale shaker; | MOQ: | 1 SETS; |
Features: | High Efficiency; | Place of Origin: | Hebei,China (Mainland); |
Key word: | Shale shaker; | Port: | Tianjin; |
Model | RLS802E | RLS703E | RLS703EL-B | RLS703ED-BS | RLS704E-B | RLS833E |
Vibration mode | Linear motion | |||||
Motor power | 2x0.75KW | 2x1.5KW | 2x1.72KW | 2x1.72KW | 2x1.94KW | 2x1.72KW |
G force | ≤7.0G (adjustable) | ≤7.2G (adjustable) | ≤7.2G (adjustable) | ≤7.5G (adjustable) | ≤7.8G (adjustable) | ≤7.5G (adjustable) |
Double amplitude | 3.8-5.6mm | 4.6-6.0mm | 4.6-6.0mm | 4.6-6.2mm | 4.6-6.5 mm | 4.6-6.5mm |
Treating capacity | 65m³/h, 286GPM | 120m³/h, 528GPM | 140m³/h, 616GPM | 120-140m³/h 528-616GPM | 160m³/h, 704GPM | 160m³/h, 704GPM |
Deck adjustment | -1°~3° | -1°-5° | -1°~5° | -1°~5° | -1°~5° | -1°~5° |
Frequency | 380V/50Hz,460V/60Hz or Customization | |||||
moi Screen area | 1.6m2 | 2.2m2 | 2.62 m2 | 2.6m2+1.35m2 | 2.94 m2 | 2.7 m2 |
Screen size | 800x1000m (40-200mesh) | 700x1050mm (40-200mesh) | 700x 1250mm (40-200mesh) | 700x 1250mm 750x900mm (40-200mesh) | 700 x 1050mm (40- 200mesh) | 830x 1080mm (40-200mesh) |
Screen quantity | 2 | 3 | 3 | 3+2 | 4 | 3 |
Weir height | 746mm | 858mm | ||||
Decibels | <85db | |||||
Starter | Explosion proof control cabinet | |||||
Dimension | 2080x1300x 1350mm | 2750x1650x 1420mm | 2750x1880x 1500mm | 2760x1880x 1500mm | 3200x1700x 1500mm | 3200x1700x 1500mm |
Weight | 1120kg | 1300kg | 1480kg | 1592kg | 1656kg | 1700kg |
Remark | Capacity tested from drilling mud is 1.2g/cm³ , viscosity is 45s and screen is 40 mesh |
