Applicable Industries: | Farms,Retail; | Brand Name: | Rebon tractor; |
warranty: | 18 month; | MOQ: | 1 set; |
Place of Origin: | Shandong China; | Key Selling Points: | Multifunctional; |
Drive Type: | Gear Drive; | packing: | iron crate; |
Max.Dump: | 1200kgs; | bucket: | normal or 4 in 1; |
Showroom Location: | None; | Usage: | Farm Tractor; |
Condition: | New; | Name: | front end loader; |
Packaging Detail: | Full assembly packing or Iron crate frame packing; | Type: | Wheel Tractor; |
After Warranty Service: | Online support; | Use: | Loading; |
By wheel: | 4WD; | Warranty: | 1 year; |
Payment Terms: | L/C,T/T; | Supply Ability: | 30000 Set/Sets per Month frond end loader; |
matched power: | 30-40hp tractor; | Attachments: | extra claw on the boom; |
Certificate: | EPA, CE, ISO; | After-sales Service Provided: | Engineers available to service machinery overseas; |
After-sales Service Provided: | Video technical support,Online support; | Local Service Location: | None; |
Port: | Qingdao,Tianjin Shanghai; |
Brief Introduction
1. Standard level lifts.
2. Perfect painting and finishing in details.
3. Special requests on the size of bucket are available
4. Quick release bracket and it is very easy for installation.
5. Quick release attachment which can work with others Extensive implements
6. 4 in 1 bucket, pallet fork and wood Grapple are available on it.
The specification of frond end loader:
Technical Data | FLD30C/D | FLD40C/D | FLD60C/D | FLD80C/D | FLD90C/D | FLD120C/D |
Max.Lift Height-Measured at Pivot Pin(mm) | 2100 | 2400 | 2700 | 3020 | 3100 | 4200 |
Max.Lift Height-Under Level Bucket(mm) | 1700 | 2000 | 2300 | 2500 | 2700 | 3600 |
Max.Dump reach(mm) | 600 | 800 | 930 | 1020 | 1060 | 1200 |
Dump angle(°) | 45 | 42 | 42 | 42 | 42 | 42 |
Reach with Bucket on ground(mm) | 1560 | 1830 | 2000 | 2200 | 2300 | 2400 |
Rollback angle on ground(°) | 26 | 26 | 27 | 28 | 28 | 28 |
Max.Digging depth(mm) | 100 | 100 | 110 | 110 | 110 | 110 |
Rated Load(kg) | 260 | 360 | 600 | 800 | 850 | 1000 |
Bucket Capacity (m³) | 0.2 | 0.3 | 0.46 | 0.6 | 065 | 0.9 |
Recommended Tractor HP
| 20-35 | 35-55 | 55-85 | 75-105 | 80-110 | 110-165 |
If any information not be included in above sheet, pls kindly click here to know more.

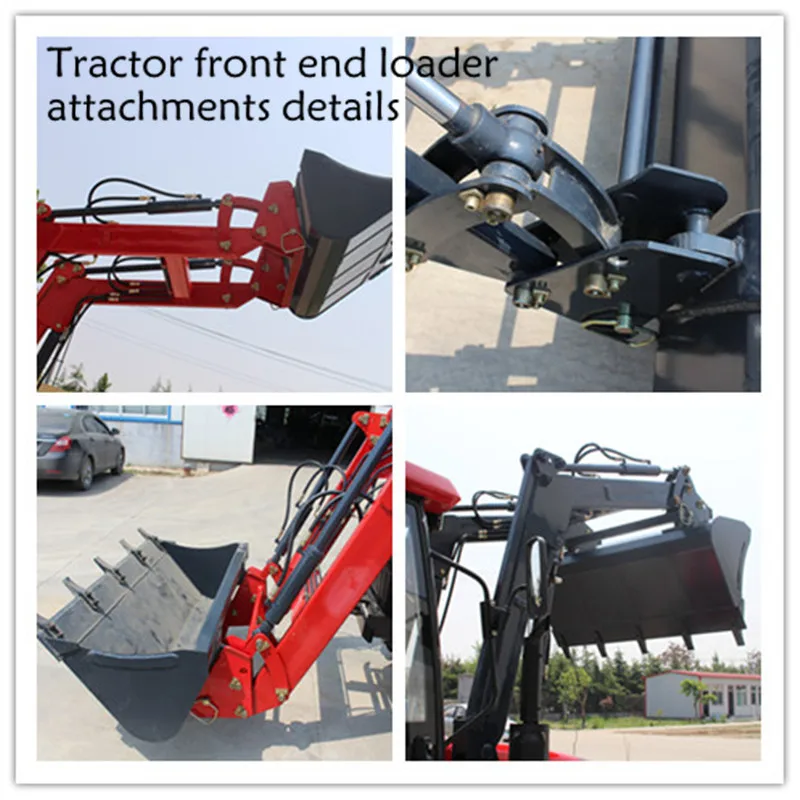

There are normal bucket and 4 in 1 bucket, and also have some other forklift.
normal bucket as below:
4 in 1 bucket details:

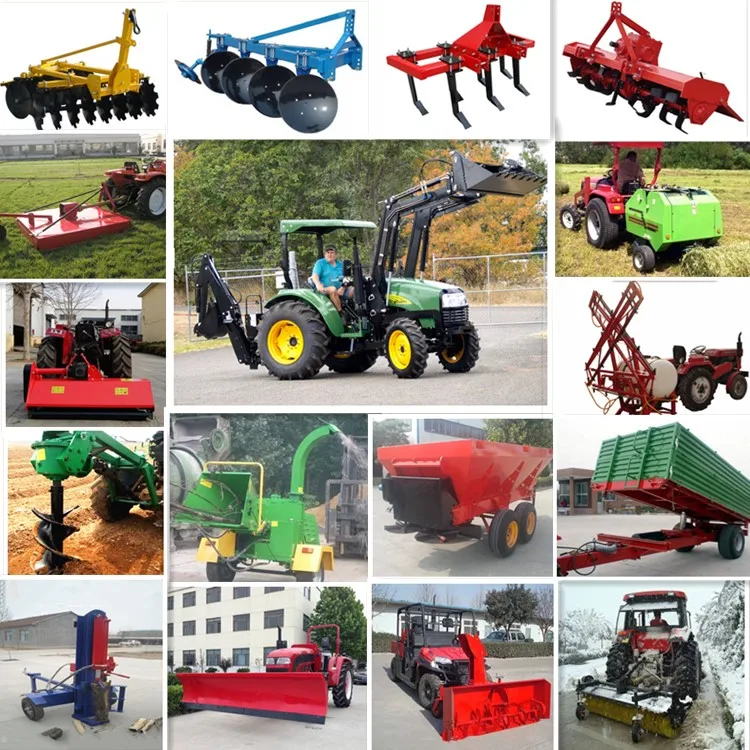

If you are interested in above farm machinary or more farm implements, pls kindly click here.
Accoding to customer's requirement, Usually we have two kinds of packing way, and assure all kinds of packing are safe enough to reach customers' hands.
Weifang Rebon Group established in 2007 year, with more than 10 years' rich experience in production and export business.
Our main products are tractor,haverster,farm implements. All of our goods full passed ISO9001 International Quality Certification system and China 3C Quality system.
WHY Choose Rebon?
(1) 11 years Agriculture Machines Manufacturing and export Experiences.
(2) Quick and Safe Delivery.
(3) Experienced Service Team and Technology support.
(4) Full range products for choice and one-stop purchase.
(6) Competitive Price Attractive designed, good performance High Good Quality.
