Port: | All ports in China; | Design speed: | 180m/min,150m/min; |
Place of Origin: | Hebei China; | Weight: | 3-5T; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Supply Ability: | 10 Set/Sets per Month; |
Usage: | Commodity; | Roll diameter: | 360mm,320mm; |
Brand Name: | wansong; | After-sales Service Provided: | Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service; |
Automatic Grade: | Semi-Automatic; | Condition: | New; |
Type: | Cleaner; | Effective width: | 1400mm-2200mm; |
Warranty: | 1 year; | | |

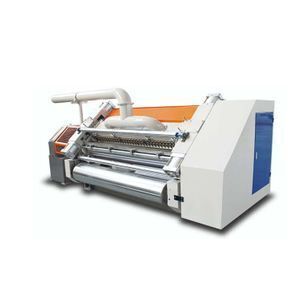

Fingerless Type Single Facer
Technical Data
Width | 1400mm-2200mm |
Design Speed | 180m/min,150m/min |
Corrugated Roller | 360mm,320mm |
- Corrugated roller is made of special alloy steel of 48CrMo alloy steel with grinding process and hardened with hardness of HV1200.Tungsten Carbide is optional for corrugated roller.
- Vacuum suction system provides perfect flute shape even at high speed,blast volume controller is equipped.
- Oil lubrication type gear box,low noise and gimbal transmission,also seperate power(optional).
- Pneumatic control of the upper roller,pressure roller and gluing roller.
- Bearings of corrugated roller and pressure roller are lubricated by hihg-temperature lubricating grease.
- Motorized digital read out device,auto adjustment of the glue application amount.(Manual device is optional)
- Surface of gluing roller are treated by special mesh snicded and chromeplated.Automatic and cyclic supply glue for the glue unit.
