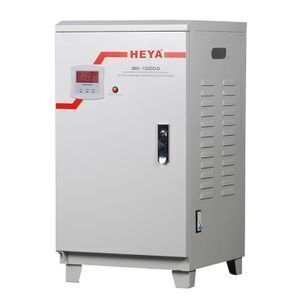

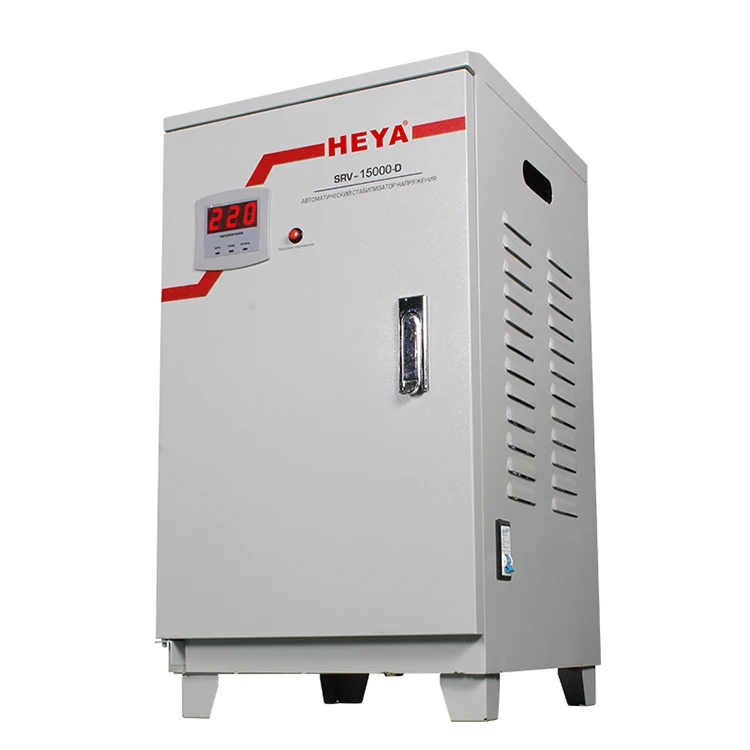

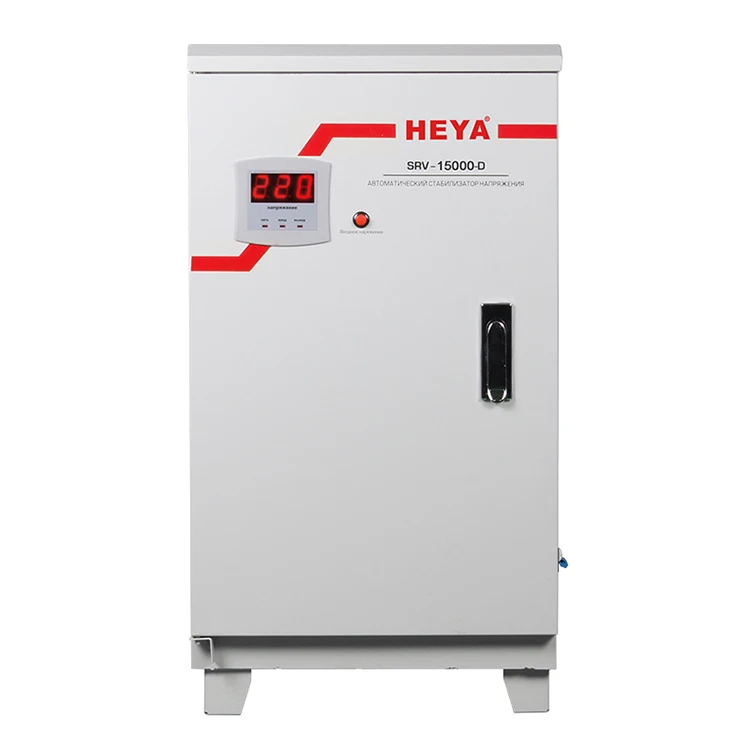

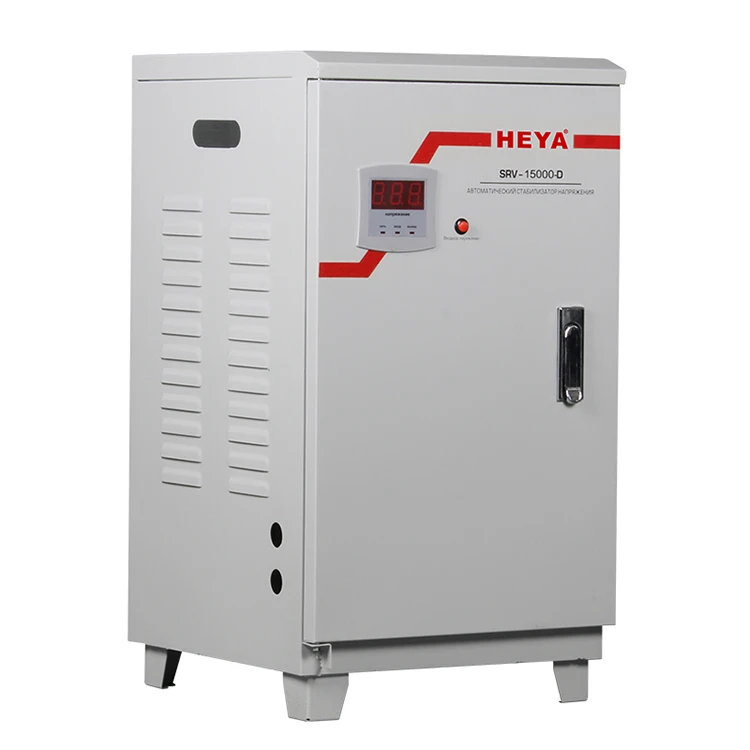

15KVA 4 Relays Control Single Phase Automatic Voltage Regulator Stabilizer

Supplier: Yueqing Heyuan Electronic Technology Co., Ltd.
Region: Zhejiang, China
Price: $80.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Input Voltage:	140-260VAC or 80-260VAC Or Customize;	Product Name:	15KVA Voltage Regualtor/Stabilizer;
Place of Origin:	Zhejiang China;	Efficiency:	95%;
Usage:	SVC;	Brand Name:	HEYA/OEM;
Model Number:	SRV-15KVA;	Display:	LED/Meter;
Color:	White,Black or customize;	Phase:	Single Phase;
Output Voltage:	220V±8%;	Packaging Detail:	15KVA Voltage Regualtor/Stabilizer Standard Export Wooden Package 1pcs/CTN,G.W.(KGS):30;
Certificate:	CE,ISO9001, BV, EAC, SONCAP, SGS;	Frequency:	50Hz/60Hz;
Type:	Relay/Electronics;	Current Type:	AC;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Supply Ability:	50000 Piece/Pieces per Month 15KVA Voltage Regualtor/Stabilizer;
Load Capacity:	12KW;	Port:	Ningbo/Shanghai;

15KVA 4 Relays Control Single Phase Automatic Voltage Regulator Stabilizer

Product Description

The advantages of this model:
1.Wide input voltage:AC 140~260V or customize 80-260VAC
2.High technology:programmed control computerized
3.Fashion design:LED display which can show all protection functions.
4.Quality insurance:Main spare parts made by ourselves,for example,transformer,PCB.
5.Perfect protection function:over/low voltage protection,over-heat/load protection,short circuit protection.
6.Option function:with voltage regulator and mains supply two kind output voltage choice function,in mains supply relatively stable season,the user can put voltage stabilizer in mains supply state,there is no power consumption,it is economic and convenient.
7.High efficiency:More than 95%

Model	SRV-15000-D	SRV-20000-D
Nominal Power	15000VA	20000VA
Power Factor	0.6-1.0
Input
Operating Voltage Range	A:70~285V,B:90~285V,C:125~285V
Regulation Voltage Range	A:80~260V,B:100~260V,C:140~260V
Frequency	50HZ
Connection Type	Input terminal block
Output
Operating Voltage	180~255V
High Cut Voltage	255V
Low Cut Voltage	180V
Safety Cycle	3 Seconds / 180 Seconds (Optional)
Frequency	50HZ
Connection Type	Output terminal block
Regulation
Regulation %	8%
Number of Taps	5

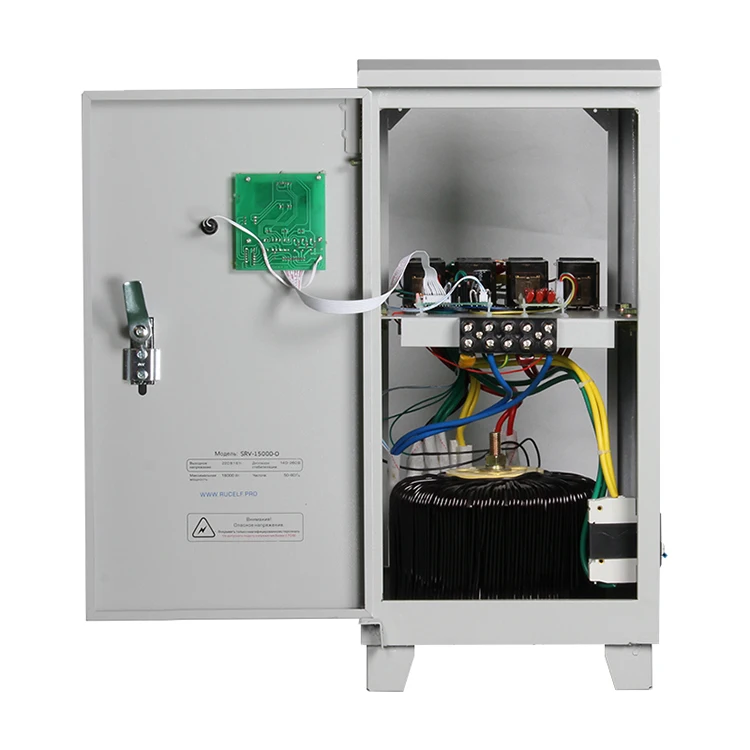

Transformer Type	Toroidal auto transformer
Regulation Type	Relay type
Indicators

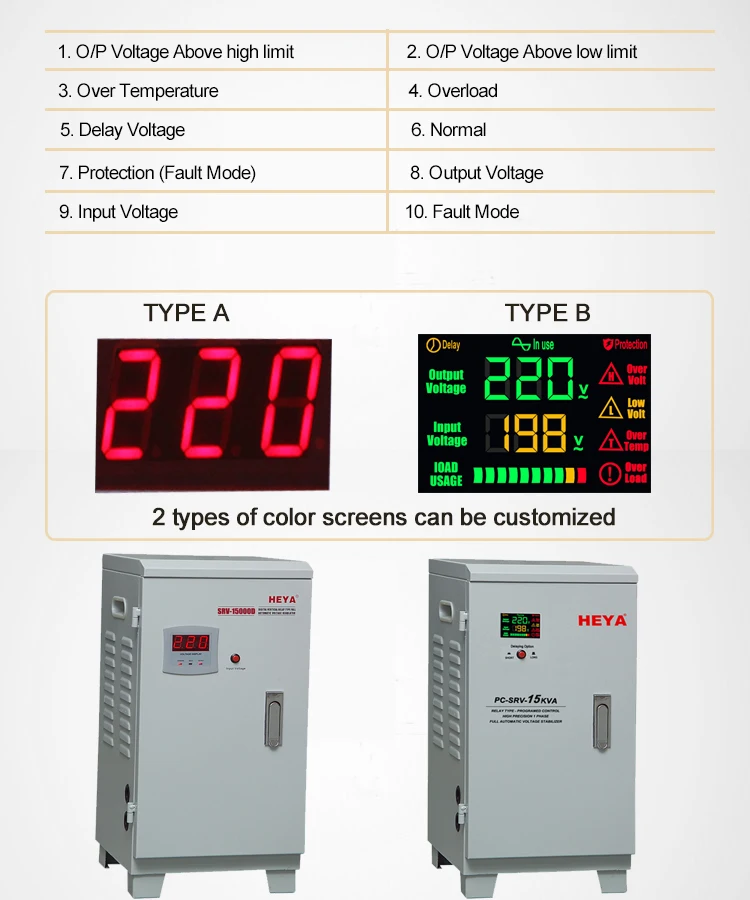

LED display	Input voltage ,Output voltage ,Delay time
Protection
Over Temperature	Auto Shutdown at 120 ℃
Short Circuit	Auto Shutdown
Overload	Auto Shutdown
Over / Under Voltage	Auto Shutdown

Packaging information :

Model	Unit(PCS)	Device Size(MM)	Package Size(MM)	G.W.(KGS)
SRV-15000-D	1	310270560	410360650	30.00
SRV-20000-D	1	360340620	450430725	37.00
