Place of Origin: | Beijing China; | Spare Parts Type: | laser tube; |
Brand Name: | EFR; | application: | co2 laser engraving, cutting.etc; |
Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Weight (KG): | 10 KG; |
Output power: | 150w etc.; | Key Selling Points: | Easy to Operate; |
Length: | 1250+/-20mm 1450+/-20mm 1650+/-20mm 1850+/-20mm 2050+/-20mm; | Warranty: | 6 Months; |
Packaging Detail: | in carton or wooden cases; | After-sales Service Provided: | Free spare parts,Video technical support,Online support; |
Supply Ability: | 1000 Piece/Pieces per Month; | Product name: | 150w engraving and cutting co2 glass laser tube; |
Lifetime: | 10000 h; | After Warranty Service: | Video technical support,Online support,Spare parts; |
technology: | glass to metal adjustable tech; | Diameter: | 80mm; |
Showroom Location: | Egypt,Canada,United Kingdom,Italy,India,Russia,Australia; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Local Service Location: | Egypt,Canada,United Kingdom,United States,Italy,India; | Condition: | New; |
After-sales Service Provided: | No overseas service provided; | Material: | Glass to Metal; |
Port: | Beijing/Tianjin; |
200w 300w 400w 500w 1000w co2 laser tube wholesale

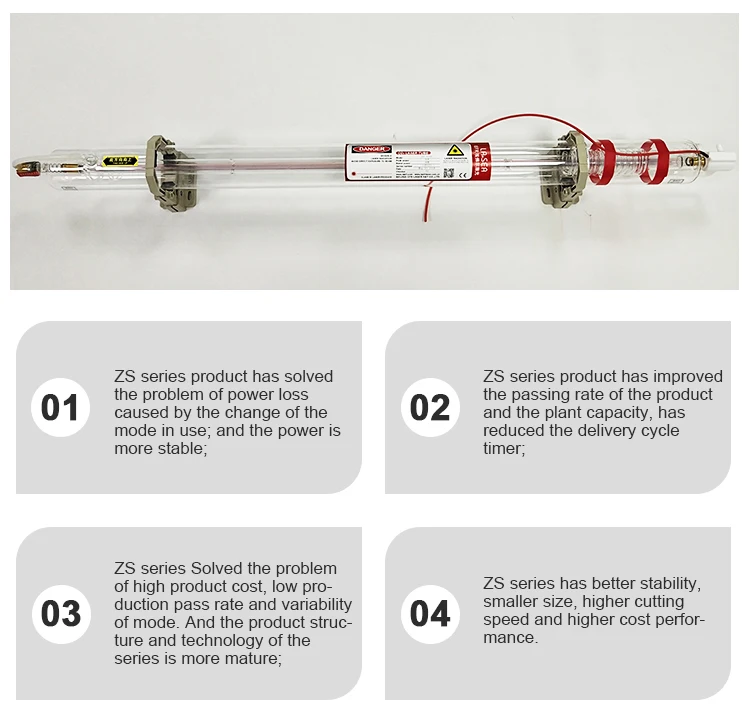

ZS series is the enhanced CO2 laser tube with 10000 hours lifespan and it began producing in September 2015 after years of development.The power of a single laser tube is up to 185W and this series has stable luminous performance. The discharge tube is coated with catalyst to increase its working life.This ZS series CO2 laser tube has the advantages of small size, good spot mode, high cutting speed compared to similar products.
Model | Length (mm) | Diameter (mm) | Output Power (W) | Max Power (W) | Current (mA) | Catalyst | Lifespan | Warranty Period |
ZS-1250 | 1250±20 | Ø80±2 | 80 | 95 | 28 | Yes | 10000h | 360days |
ZS-1450 | 1450±20 | Ø80±2 | 100 | 120 | 30 | |||
ZS-1650 | 1650±20 | Ø80±2 | 130 | 150 | 30 | |||
ZS-1850 | 1850±20 | Ø80±2 | 150 | 165 | 30 | |||
ZS-2050 | 2050±20 | Ø80±2 | 170 | 185 | 30 |
The discharge raw glass tube is imported from Germany. The complete glass tube quality is under control.

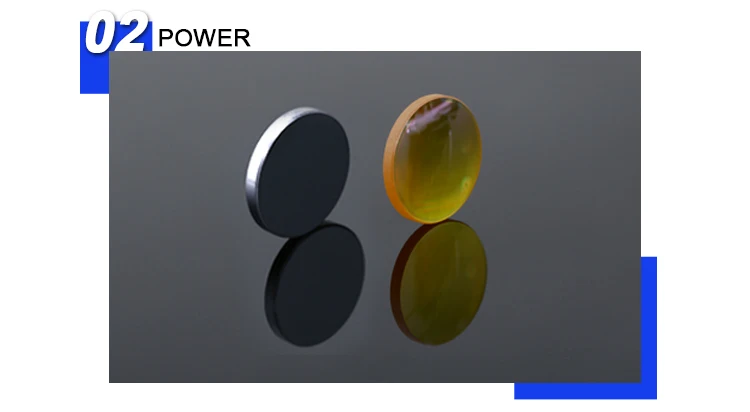

ZS series laser tube is equipped with mirror and output mirror from the world’s leading manufacturer II-VI infrared in United States. The maximum output power is up to 185w and the output power density is high.

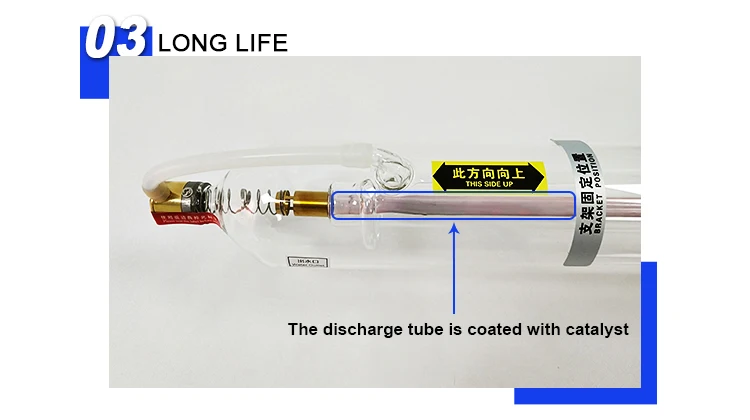

The discharge tube coated with catalyst, matched with the electrode treated by a special process, ensure the discharge more stable and the service life can reach up to 10000 hours.

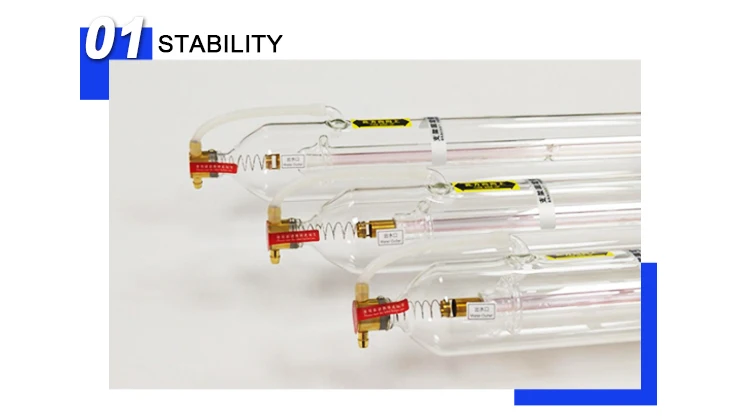

Stable cavity structure, makes the beam more concentrated and more stable, and brings more uniform light spot, better beam mode, higher efficiency.
Applicable to all kinds of small and medium-sized non-metallic laser cutting machine, such as clothing, leather, textile, paper cutting, acrylic cutting and other materials.
