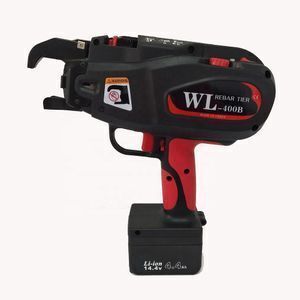

CE approved portable Auto rebar tying machine tools used for building construction

Supplier: Fuzhou Zhuoyuan Machinery Co., Ltd.
Region: Jiangxi, China
Contact: Mr Wei Li
Price: $480.00 /set
Min. Order: 1 set

Click here to contact

Product details

Battery type:	Li-ion DC14.4V(4.4AH);	Tying speed per knot:	0.75 Seconds;
Brand Name:	WL;	Product Name:	CE approved portable Auto rebar tying machine;
Place of Origin:	Jiangxi China;	Package Preview:	https://sc01.alicdn.com/kf/HTB1kWmRa5zxK1Rjy1zkq6yHrVXaH.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB17CyMa0fvK1RjSspoq6zfNpXax.jpg_640x640.jpg;
OEM:	Yes;	Turns per Tie:	2 Turns/3turns;
Gross Weight:	7.5KGS;	Machine Size:	295mm120mm275mm;
Selling Units:	Single item;	Application:	Construction,building;
Package Type:	Plastic box(inner packing) , Carton box(outer packing) , 3sets/carton;	Type:	Power tool;
Model Number:	WL-400B;	Max Tying Diameter:	40 mm;
Single package size:	50X41X15 cm;	Power Source:	Battery drive;
Charge Time:	70 Minutes;	Wire diameter:	0.8mm;
Single gross weight:	7.5 KG;	Feature:	Automatic;

Product Description

Product Application

our rebar tying tools are extensively used in Concrete floors, Concrete foundations,Concrete walls, Precast Products, Swimming pool walls, Retaining walls, Underfloor heating.

Main Features

1) One hand operation-easy to handle

2) 5 times faster than hand tying

3) Li-ion higher capacity battery

4) Brushless twisting motor-long service life

5) Light weight & compact body

Automatic rebar tying machine
Model No.	wL-210B(Li-ino)	wL-400B(Li-ino)
Max Tying Diameter	21mm	40mm
Voltage & Capacity	DC14.4V(4.4AH)	DC14.4V(4.4AH)
Charge Time	Approx.70mins	Approx.70mins
Tying speed per knot	0.7 seconds	0.75 seconds
Ties per Charge	Over 3200ties	Over 3200 ties
Ties per Coil	Approx. 195ties(3turns)	Approx.130ties(3turns)
Turns per Tie	2turns/3turns	2turns/3turns
Length of Wire for Tying	380mm/2 turns 550mm/3 turns	650mm/2 turns 750mm/3 turns
Wire Type	Black annealed wire or Galvanized wire	Black annealed wire or Galvanized wire
Net Weight	1.8kgs	1.9kgs
Dimension(L)X(W)X(H)	275mmX120mmX275mm	295mmX120mmX275mm

One set including

1pc Rebar tier machine.

2pc Battery pack.

1pc Quick charger.

3pc Steel wire rolls.

GW of one set:7kgs

1pc Specification

1pc Inner hexagon spanner

1pc Sharp nose pliers

Packing size:45*34*13cm

Detailed Images

Name:Magnetic brake

Features:strong durability ,fast speed

Name:Brushless twisting motor

Features:Long service life,fast speed

Name:Fastner

Features:Made of copper or aluminum,quality assured

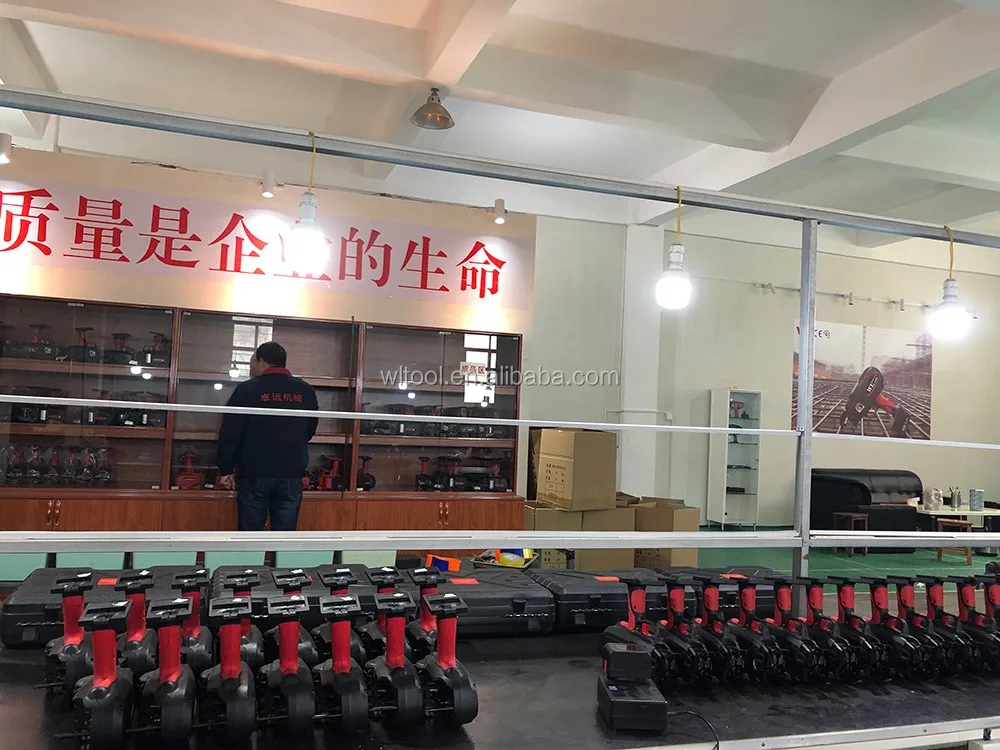

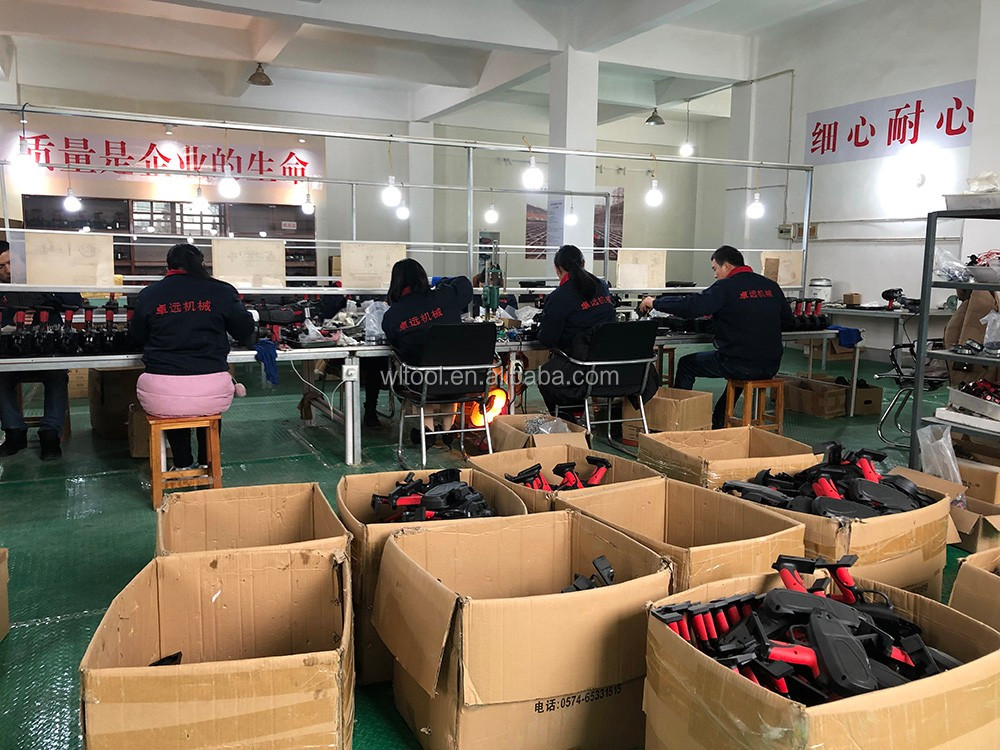

Our Company

Fuzhou ZhuoYuan Machine Co. Ltd is located in Jiangxi province,which is a professional manufacturer and supplier of automatic rebar tying machine.Our company was founded in 2014,have a complete and scientific quality management system.

Packing

Packaging
Size	295mm(L)120mm(W)275mm(H)
Weight	7.2kgs
Packaging Details	The normal package is plastic box(inner packing),carton box(outer packing). 3sets/cartons.
