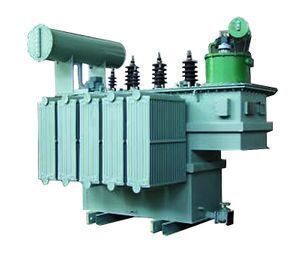

Oil Cooled Power Transformer 5000KVA 33KV / 11KV with high quality

Product details
Frequency:50/60Hz;Rated voltage:33kv;
Certification:ISO9001;Phase:Three;
Coil Number:Autotransformer;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Brand Name:ROOQ;Usage:Power;
Standard:IEC60076;Coil Structure:Toroidal;
Type:oil immersed transformer;Secondary:6.6kV 11kv;
Product name:Transformer 5000KVA;Packaging Detail:plywood case;
Port:china;Supply Ability:200 Set/Sets per Month standard carton transformer 5000kva;
Model Number:S11;Material:100% Copper;
Rated capacity:5000KVA;Place of Origin:Zhejiang China;
Cooling:ONAN ANAF;
Product Description

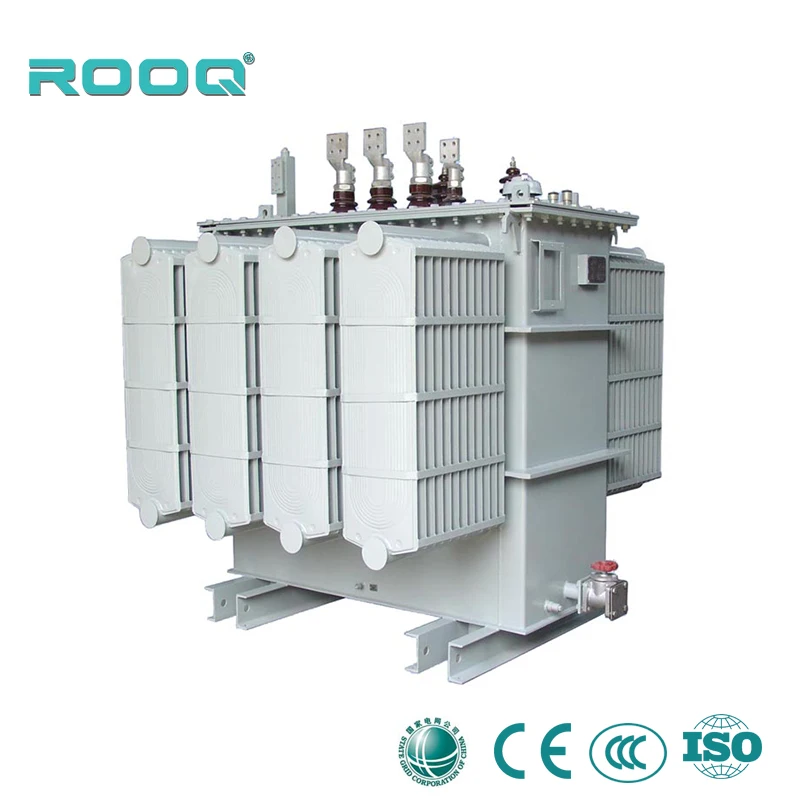

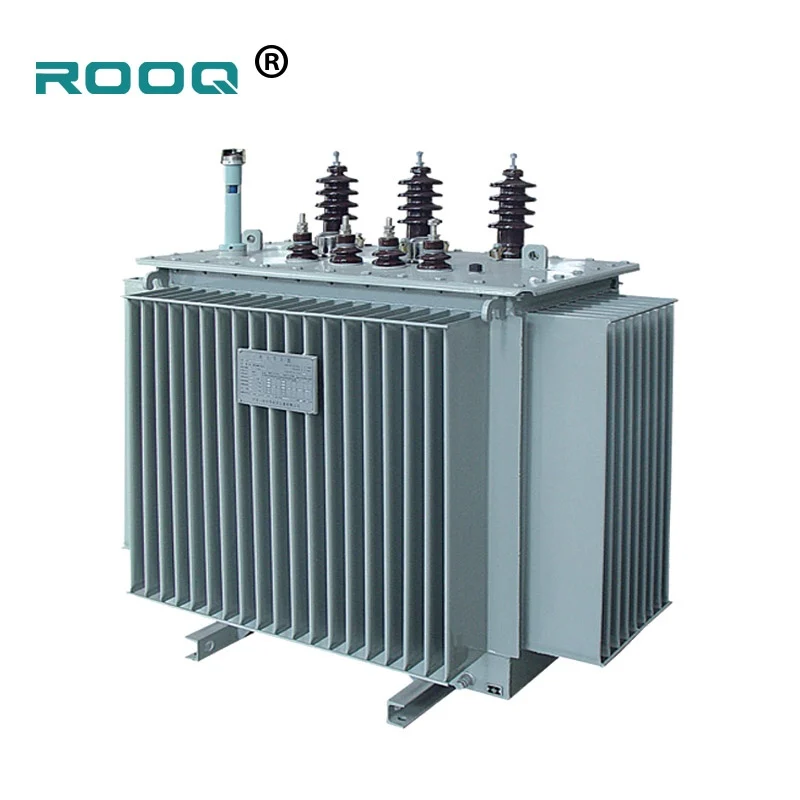

Oil Cooled Power Transformer 5000KVA 33KV / 11KV with high quality

Specifications

Low loss
Long usage life
ISO standards
High efficiency
Original equipments manufacturer

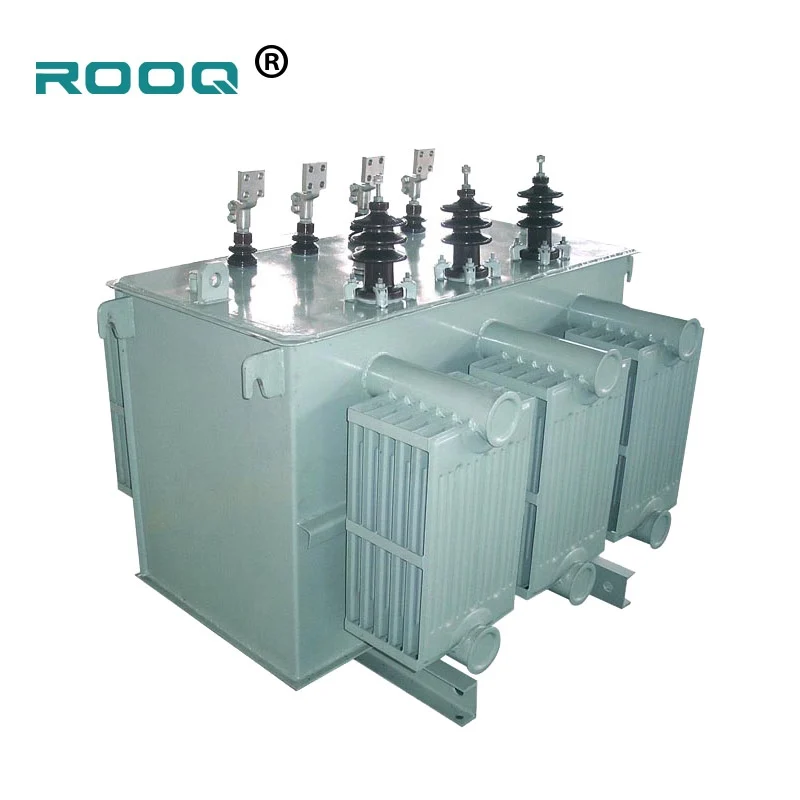

Oil immersed type Power distribution transformer

The three-phase oil-immersed distributing transformer applies new type insulating structure and makes short-circuit resistance strong. The iron core is made up of cold-rolled silicon-steel plate of high-quality. high voltage winding group is made up of high-quality oxygen-free copper liner lines and it adopts multilayered drum type structure. All fasteners have been processed with special treatment to prevent As high-tech product that promoted by the country, the product has many advantages such as high efficiency, low loss, its social benefits are remarkable that it will save much of electricity consumption and operating cost.

Characteristics

1. S11 series power transformer 5000 kva core uses the high quality cold-rolled steel coil, USES the high quality anaerobic copper into and beautiful outlook, safety of operation. S9 series S7 series transformer and compared, and the annual average no-load loss is reduced by 10% and the average load loss is reduced by 20% and save energy obviously, widely used in industry and agriculture, urban and rural power grid.
2. High reliability, performance level advanced, economical index is reasonable.
3. The core of the level 3 juncture when, surface coating cured paint, in order to reduce loss and noise.
4. Winding new structure, reasonable design oil way, adopt new insulation structure, improve mechanical strength and resistance to short.

Service environment

Suitable for indoor and outdoor application
Ambient temperature: +40°C--30°C
Relative humidity: ambient air relative humidity should be below 93%.
Altitude:≤1000m
Max wind speed: ≤35 m/s
Earthquake acceleration: horizontal acceleration≤0.3g
vertical acceleration≤0.15g
Special conditions: customized products are available.

Packing & Delivery

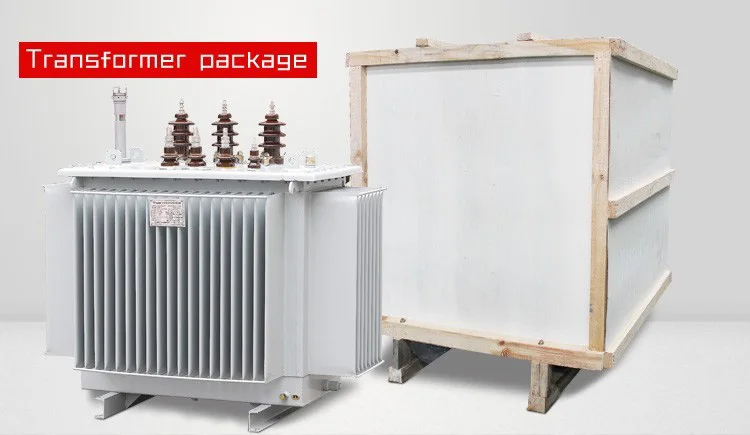

Packaging Detail: plywood case
Delivery Detail:10-30days

Rated capacity
(KVA)
Load loss
(KW)
No-load loss
(KW)
No-load current
(%)
Impedance
voltage(%)
Oil weight
(kg)
Total
weight
(kg)
Dimension
(mm)
Install size
(mm)
10
0.26
0.09
3.2
4
45
172
915x450x935
400x400
20
0.44
0.1
3.0
4
57
230
915x450x975
400x400
30
0.63/0.060
0.13
2.3
4
65
275
930x587x995
400x400
50
0.91/0.87
0.17
2.0
4
80
360
995x595x1035
400x400
63
1.09/1.04
0.2
1.9
4
87
415
1020x75x1050
400x400
80
1.31/1.25
0.25
1.9
4
95
470
1035x750x1095
400x400
100
1.58/1.50
0.29
1.8
4
105
545
1040x760x1145
550x550
125
1.89/1.80
0.34
1.7
4
120
640
1080x770x1210
550x550
160
2.31/2.20
0.4
1.6
4
135
745
1120x785x1230
550x550
200
2.73/2.60
0.48
1.5
4
160
880
1210x810x1270
550x550
250
3.20/3.05
0.56
1.4
4
200
1035
1270x825x1420
550x550
315
3.85/3.65
0.67
1.4
4
235
1220
1310x840x1490
550x550
400
4.52/4.30
0.8
1.3
4
260
1405
1365x1010x1525
550x550
500
5.41/5.10
0.96
1.2
4
295
1655
1395x1025x1590
660x660
630
6.2
1.2
1.1
4.5
360
1975
1515x1060x1625
660x660
800
7.5
1.4
1.1
4.5
430
2355
1850x1180x1780
660x660
1000
10.30
1.7
1.0
4.5
520
2715
1890x1350x1840
820x820
1250
12.00
1.95
1.0
4.5
585
3335
1845x1420x1890
820x820
1600
14.5
2.4
0.8
4.5
660
3855
2295x1400x1980
820x820
2000
18.00
2.6
0.7
4.5
795
4580
2365x1420x2020
820x820
Certifications

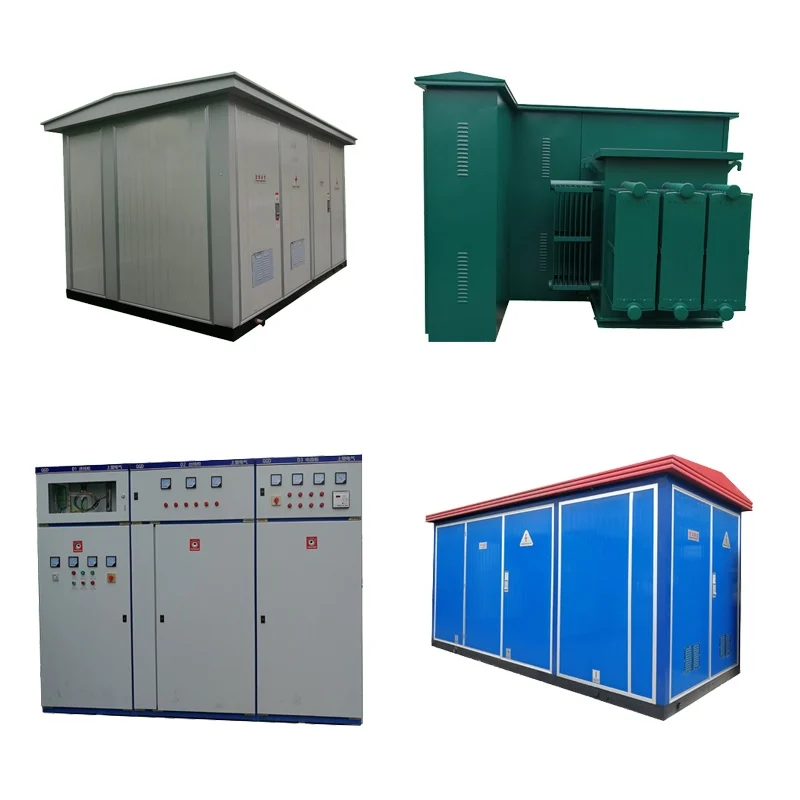

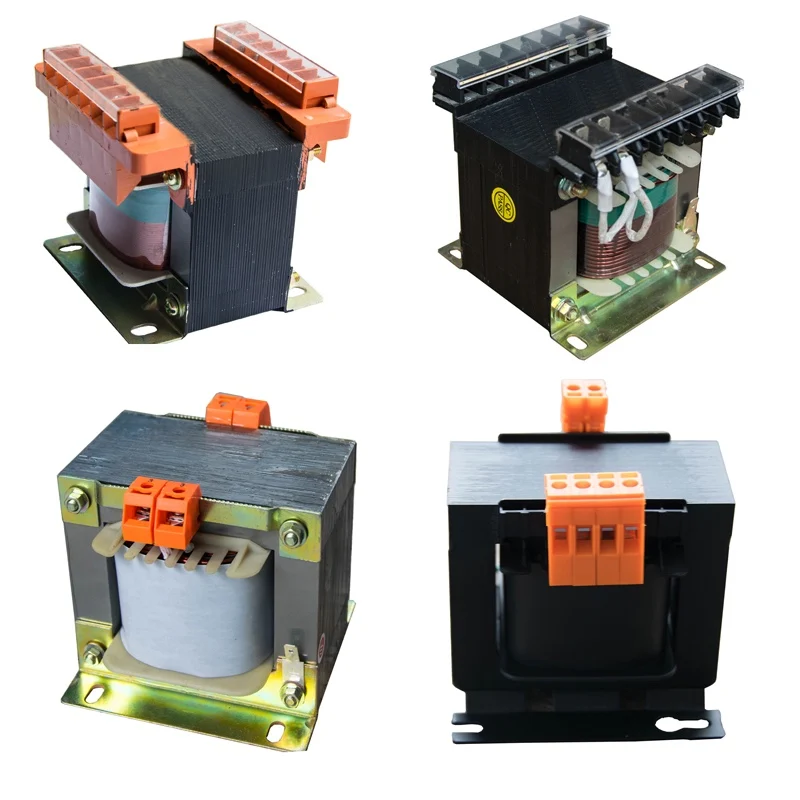

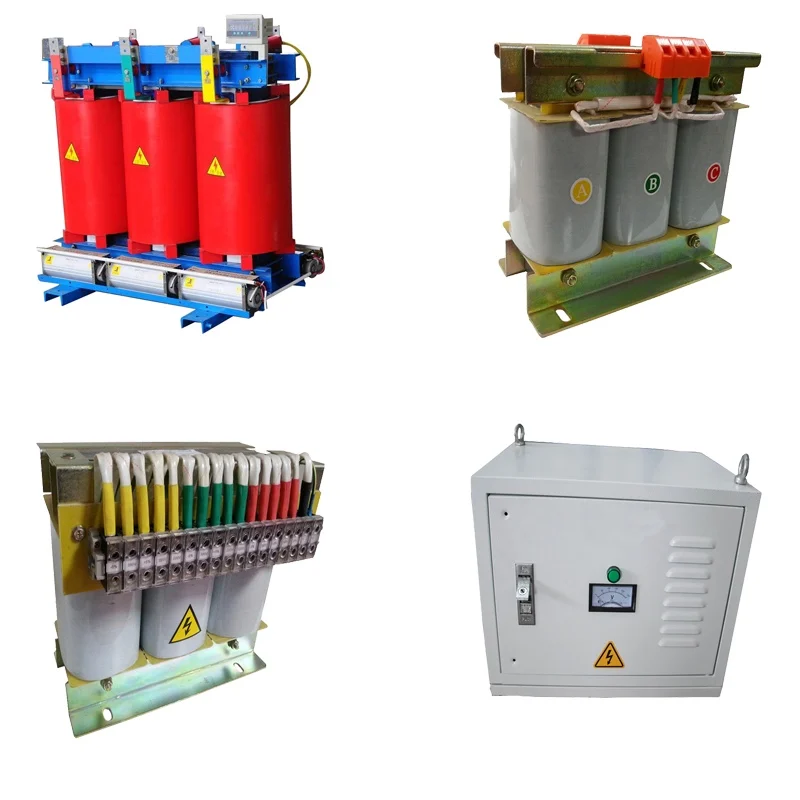

More Transformers

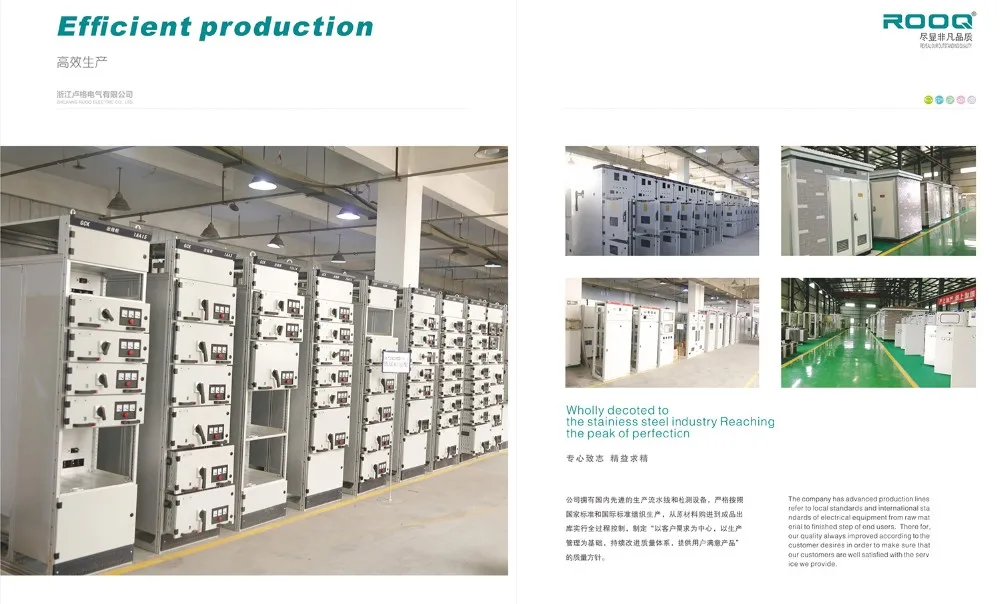

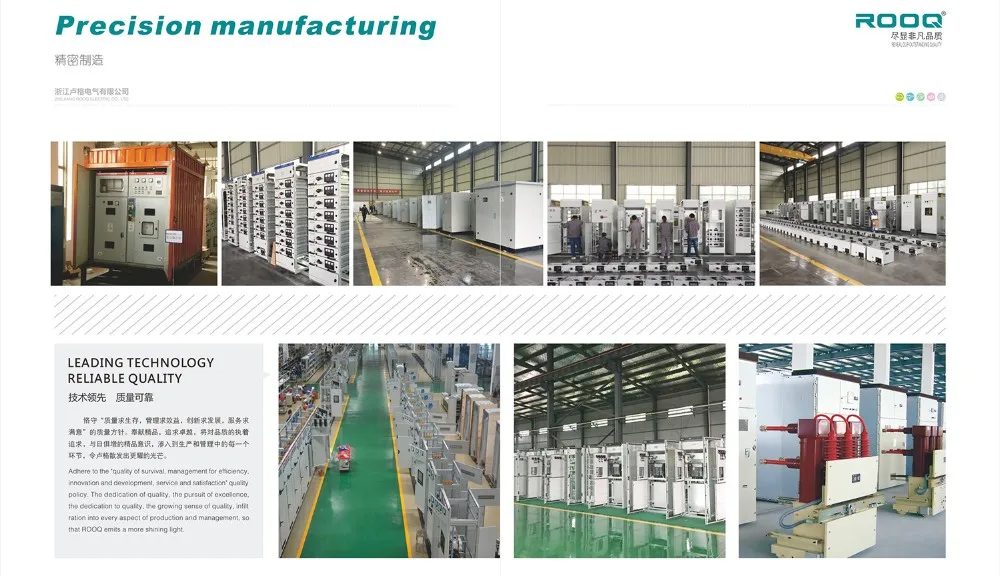

Our Company
