2016 Motorcycle timing chain and sprocket kits timing chain

Supplier: Qingdao Yingjunda Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr legolas zhang
Price: $0.15 / >=10 meters
Min. Order: 10 meters

Click here to contact

Product details

Single volume:	1 cm;	SurfaceTtreatment:	Self-colo,Blacked,HDG,Galvanized etc.;
Size:	U2 or U3;	Type:	Motorcycle Chain;
Brand Name:	YJD;	Brand:	YJD;
Name:	timing chain;	Certification:	BV;
Fuction:	Drad Chain;	Material:	carbon steel;
Single gross weight:	0.02 KG;	Warranty:	no;
Delivery Port:	Qingdao;	Production Place:	China;
Condition:	New;	Place of Origin:	Shandong China;
Selling Units:	Single item;

timing chain

1. 2016 motorcycle timing chain and sprocket kits timing chain

1.Material:carbon steel

2.Strcture:welded link chain

3.Inexpensive and quality assurance

4.Size: 12mm-152mm

5.Grade:U2 or U3

6.Surface: Black tarred,Hot Dip Galvanized, self-colour.

7.Certificate: LR, ABS, DNV, BV, NK, GL, RINA,CCS.

2. Technical paramater

Dia. (mm)	Outside Length (mm)	Outside Width (mm)	U2		U3		Weight (KG/27.5M)
Dia. (mm)	Outside Length (mm)	Outside Width (mm)	Proof Load (KN)	Breaking Load (KN)	Proof Load (KN)	Breaking Load (KN)	Weight (KG/27.5M)
16	96	56	66.2	132.3	92.42	184.83	138.14
17.5	105	61.25	78.89	157.78	110.55	221.1	165.8
19	114	66.5	93.6	187.2	130.32	260.64	194.9
20.5	123	71.8	108.64	217.27	151.7	303.42	227.13
22	132	77	125.4	250.9	174.4	349.4	262.29
24	144	84	149.9	298.9	207.9	415.8	312.26
26	156	91	175.4	350.8	244	488	366.76
28	168	98	203.8	406.7	283	566	423.36
30	180	105	234.2	467.5	324.9	649.8	486.85
32	192	112	265.6	531.2	369.6	739.3	554.7
34	204	119	299.9	599.8	417.3	834.6	628.08
36	216	126	336.1	672.3	467.8	935.7	701.54
38	228	133	374.4	748.7	521.3	1042.5	781.92
40	240	140	414.5	829.1	577.6	1155.2	861.17
42	252	147	457.7	915.3	636.8	1273.6	950.94
44	264	154	502.7	999.6	698.9	1398	1053
46	276	161	548.8	1097.6	763.9	1527.8	1142
48	288	168	597.8	1195.6	831.7	1663.5	1245
50	300	175	648.8	1293.6	902.5	1805	1348.5

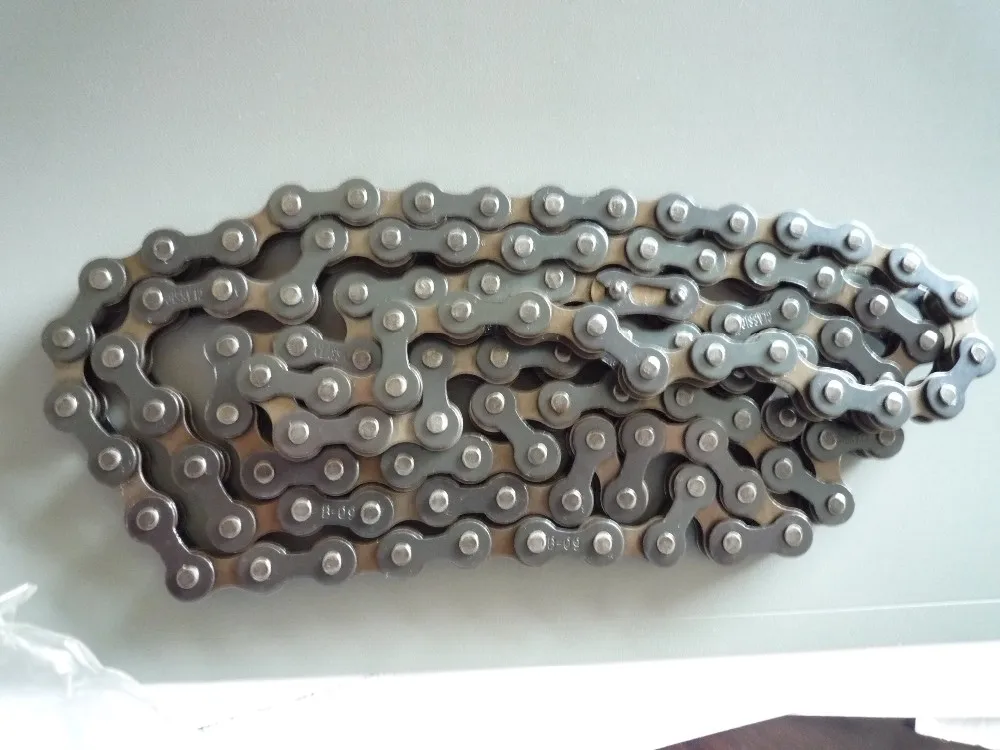

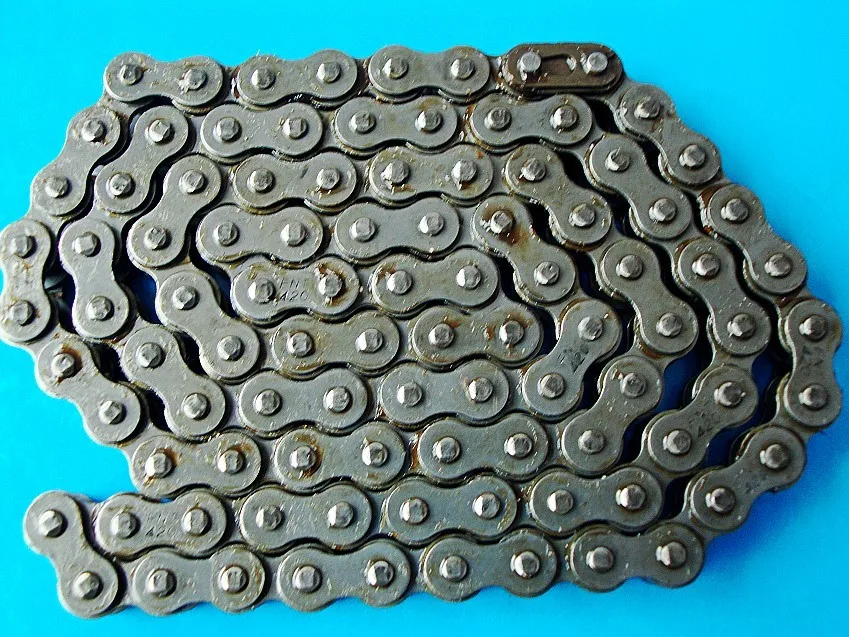

3.kinds of pictures

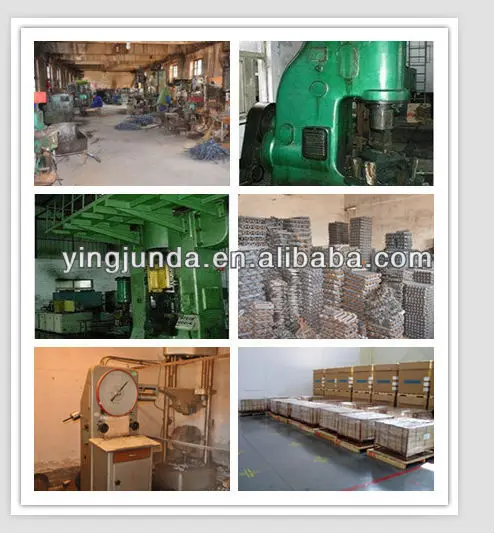

Qingdao YING JUNDA Machinery Co., Ltd. is a professional manufacturer of rigging hardware with well-equipped testing equipments and strong technical team. More than thirty five years, the company has been engaged in designing and making in shackles, turnbuckles, swivels, thimbles, hooks, bolt & nut, links, load binders, rings, wire rope clips, chains, winch & winch bar, steel cables and other rigging parts. Meanwhile, JING JUNDA accumulates extensive experience in rigging design and research and can provide OEM and ODM service. So far, the company built the largest scale manufacturing base for rigging hardware in Qingdao, China.

YING JUNDA factory covers an area of 18000 square meters and occupies the most advanced testing equipments and quality-control system. There are about 300 working people and 3 production lines, which can meet bulk orders requirements and can make sure fast delivery time.

Relying on wide variety, good quality, novel designs, reasonable prices, fast delivery time and good service, bulk products have been purchased and extensively used in North America, Europe, Australia, Southeast Asia, South Asia, Central Asia, South America, Africa and other regions, and have been highly praised by customers around the world.

Why choose us?

1. Reliable quality make you never worry about quality issues.

2. Most competitive price help you get more market shares.

3. Good after-sale service, all questions will be replied within 12 hours.

4. One stop source, all related products requirement can source from us.

5. Convenient transportation and fast delivery, about 300 working people and 3 production lines. All available shipping ways could be applied, by express, air or sea.
