Assembly electric wire kit for car, cable with power controller, for professional installation of monitoring equipment

Supplier: Mielta Technology
Region: -, China
Contact: Marina Berg
Price: $20.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Size:	10 m, 7 m, 4 m;	Car Make:	by request;
Brand Name:	Mielta Technology;	Port:	Tambov, Russia;
Packaging Detail:	export packaging;	Voltage:	5 - 55 V;
Place of Origin:	Tambov Oblast Russian Federation;	Payment Terms:	T/T;
Usage:	transport and agricultural machinery;	OE NO.:	by request;
Warranty:	1 Months;	Supply Ability:	1500 Piece/Pieces per Month;
Weight:	395 g;	Model Number:	KMK-5705-02;

Product Description

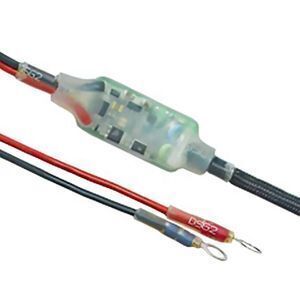

Assembly electric wire kit for car, cable with power controller

The assembly kit is designed for fast and professional installation of monitoring equipment in transport and agricultural machinery. It is made of a strong cable in synthetic braiding, equipped with terminals for connection to the on-board battery. Has a power controller KPA-4601-03.

Voltage	5-55 V
Current consumption	Load turned on – less than 10 mA
Load turned off – 0,1 mA	Optional
Load current	Continuous - 1.5 A
Short-term - 2 A (30 sec)	Voltage from 0 to 36 V, the input resistance is 30 kΩ, the bit width of 10 bits
Impulse – 3 A (1 sec)	3.3 В, input resistance: 20 kΩ, Protected frequency up to 10 kHz, counter 1000000
Electronic fuse actuating current	4-5 А
Electronic fuse response time	4 ms
Resettable fuse actuating current	3,5 А
Resettable fuse response time	10 s (5 A load current)
Turn-off voltage	12.1 V for single accumulator battery
24.2 V for two accumulator batteries	Built-in
Switch-off voltage	12.5 V for single accumulator battery
25.0 V for two accumulator batteries	4 MB, 10000 points
Signal output	Optoelectronic transistor with 4.7 kOhm pull-up resistor
Signal output current	+2/-20 mА
Ingress protection	IP65
Operation temperature	from -40 to +60 °С
Length	10 m, 7 m, 4 m
Clips diameters	10 mm, 8 mm
