Brand Name: | shenzong; | chain: | with code; |
Use: | Other Trailers; | Customized: | Yes; |
Payment Terms: | L/C,T/T,Western Union,MoneyGram,in cash; | Model Number: | SZHT-1; |
Size: | 5925 x 2290 x 2600mm; | Color: | single or mixed; |
Max Payload: | 1900 KGs; | Model Number: | SZHT-2HAL-L500; |
Place of Origin: | Shandong China; | Port: | qingdao; |
Body Panel: | galvanized sheet (1-1.5mm); | Standard: | ADR'S and so on; |
Supporting Wheel: | Swing-able; | Tyre: | 205R14; |
Packaging Detail: | loading in bulk fixed on the floor of container; | Empty Weight: | 1900kg; |
Supply Ability: | 200 Piece/Pieces per Month; | Axles: | Two special trailer axles 50*50; |
Delivery Detail: | 20-30days after deposit in advance; | OEM No.: | SZHT-1; |
High quality 2 horse float made in China
horse transport trailer 3 horse float made in China

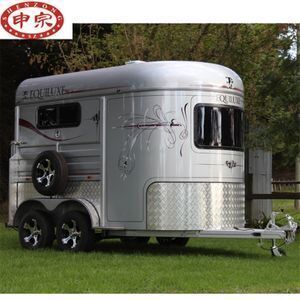

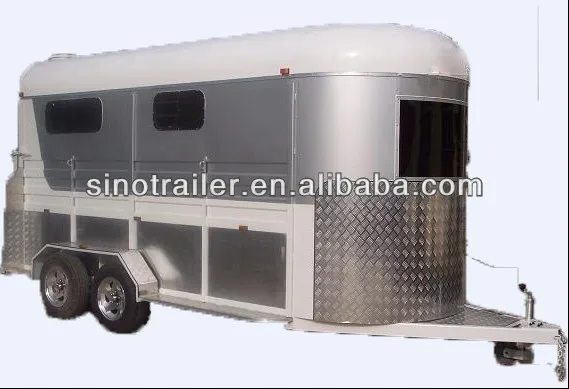

1.Product Show
2. Detailed Parameter
modelNO. | 2HAL-S100 Standard two horse trailer with angle load |
Overall Dimensions | 4110 x 2270x2590mm |
body dimension | 3260x1980 x 2230mm |
Internal Dimension | 3235 x 1930 x 2155mm |
Chassis | hot-dipped galvanized RHS 4mm |
Frame | galvanized RHS(2.5mm) |
Body | Galvanized(iron) sheet(1.0mm-1.5mm) |
Roof | 3mm glass Fibre Reinforced Plastic |
Wheel/Tyre | alloy wheels 185/70R14C |
Spare Wheel | none |
Suspension | 6-leaf Plate spring suspension |
Axles | 2*45*45mm solid axle |
Brake system | one axle electric brake with manual hand brake |
Front window | 1*mould front |
Side window | 2*slide open with flyscreen |
side Light | 2LED light(on the mudguard) |
Tail Lights | two tail group(two red and one brown ) |
Horse Divider | soft cushion |
Decorative Front panel | aluminium checkered plate 1.2mm |
Mudguard | protected by aluminium checkered plate |
Pedal Plate | decorate with aluminium checkered plate |
External Tie Hooks | 2*recess galvanized ringes |
Jockey wheel | Swing-up jockey wheel |
Roof Vents | two vents |
cupboard | none |
saddle rack | back |
rug rack | yes |
floor | 18mm plywood and 10mm rubber |
Tailgate/Ramp Door | 18mm plywood and 10mm rubber |
Horse area kickboard | 18mm plywood and 10mm rubber |
Taillight Mounting Plate | Aluminium checkered plate |
breakaways system | available |
Roof Lined With Marine Carpet | available |
fence yard | 6 piece |
