Single package size: | 70X34X60 cm; | Power supply: | AC 220V±10%,50/60Hz; |
Environmental temperature: | -40~+50; | Keyword: | 3 phase relay teste; |
Model Number: | ZCAR-702; | Warranty: | 1 Year; |
Color: | Blue; | Place of Origin: | China; |
Selling Units: | Single item; | Package Type: | Wooden Box; |
Size: | 400*300*180mm3; | Brand Name: | KvTester; |
Product Name: | Protection Relay Tester; | Single gross weight: | 41 KG; |
Weight: | 22KG; |

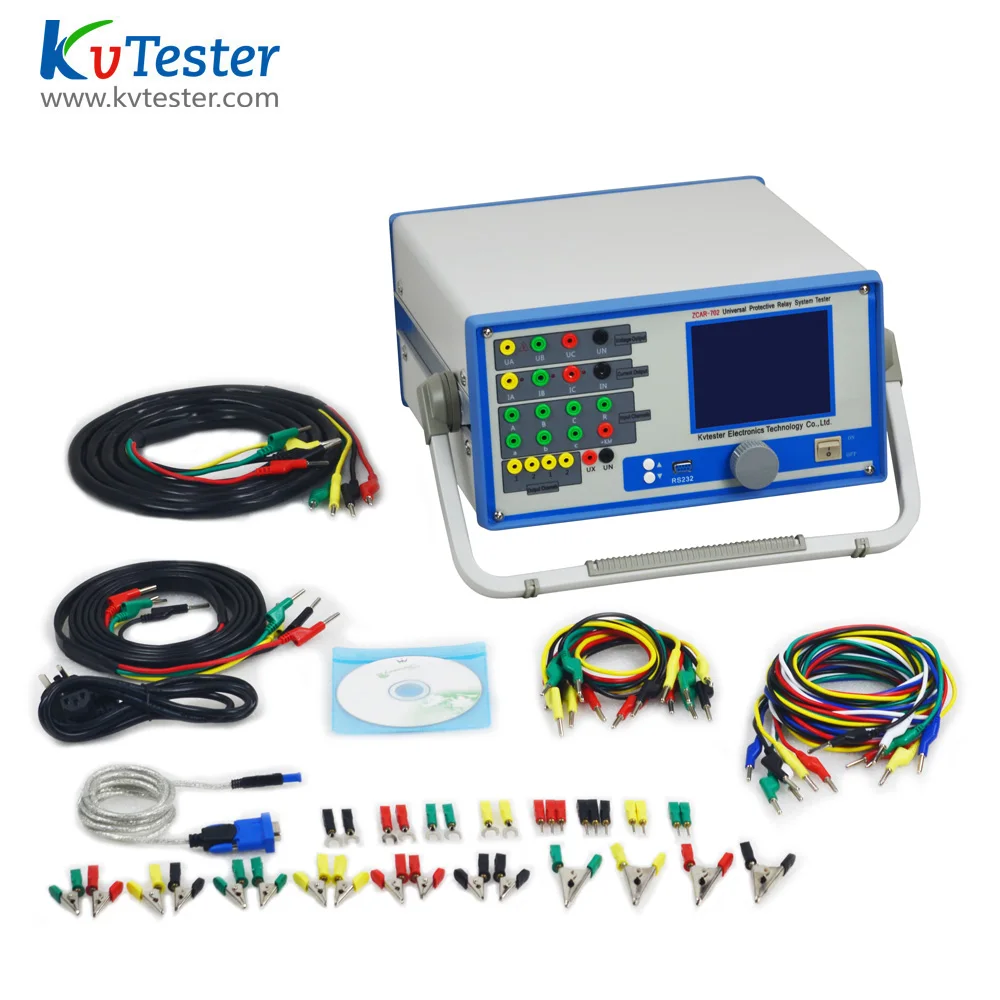

1.Product Introduction

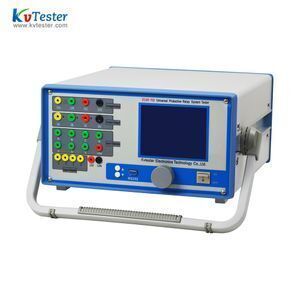

ZCAR-702 Protection Relay Test is operated by the convenient and flexible rotation mouse through the large LCD screen and all English display. It can complete the most testing work, including all sorts of relay and miccomputer protection test, and can simulate all kinds of complicated instantaneity, permanent, transform failure for the test.
2.Prodcut Features
1.The standard output of 4 phases of voltage and 3 phases of current
2.The stand-alone operation is convenient
3.Dual operation model, connect computer for work
4.Strong function of software
5.The amount of switch quantity contacts is rich
6.Large LCD screen
7.Self-protection
8.Independent DC power output
9.Cost-effective
3.Product Technical Parameter
Alternating current output | Output accuracy | 0.5 magnitude |
Phase current output (effective value) | 0~40A | |
Three parallel phase current output (effective value) | 0~120A | |
Phase current value with long time under permission (effective value) | 10A | |
Phase current maximum power output | 400VA | |
Three parallel phase current maximum power output | 1000VA | |
Three parallel phase current maximum work time | 10s | |
Frequency range (base wave) | 20~1000Hz | |
Harmonic frequency number | 1~20 time | |
Direct current output | Output accuracy | 0.5magnitude |
Current output | 0~±10A/each phase, 0~±30A/every three parallel | |
Maximum output of load voltage | 20V | |
Alternating current output | Output accuracy | 0.5 magnitude |
Phase voltage output (RMS) | 0~120V | |
Line voltage output (RMS) | 0~240V | |
Phase voltage/line voltage power output | 80VA/100VA | |
Frequency range (base wave) | 20~1000Hz | |
Harmonic frequency number | 1~20 times | |
Direct voltage output | Output accuracy | 0.5 magnitude |
Phase voltage output amplitude | 0~+160V | |
Line voltage output amplitude | 0~+320V | |
Phase voltage/line voltage power output | 70VA/140VA | |
The switch quantity and time measurement | Switch parameters input (7ways) | Empty contact: 1~20mA, 24v Power contact access: "0": 0~+6V; "1": +11V~+250V |
Switch parameters output (2couples) | DC: 220V/0.2A AC: 220V/0.5A | |
Time measurement | Measuring range: 0.1ms~9999s Measuring accuracy: 0.1ms | |
Volume and weight | Appearance and size | 400mm×300mm×180mm |
Weight of a single machine | 22kg | |
Working environment | Supply power | AC 220V±10%,50/60Hz |
Environmental temperature | -10℃~+50℃ |
