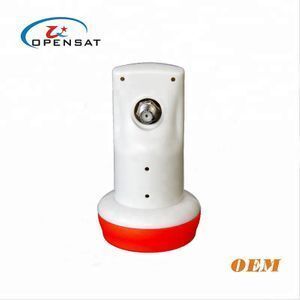

Single Universal Ku Band Lnb

Product details
Place of Origin:Guangdong China (Mainland);Port:Zhongshan;
Model Number:OP-2001;Brand Name:Opensat;
Type:universal;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Product name:Ku band single LNB;Supply Ability:500000 Piece/Pieces per Month;
Packaging Detail:Inner gift box packing and outer carton 100 pieces per carton or 150 pieces per carton Carton Size : 68*33*24 CM;
Product Description

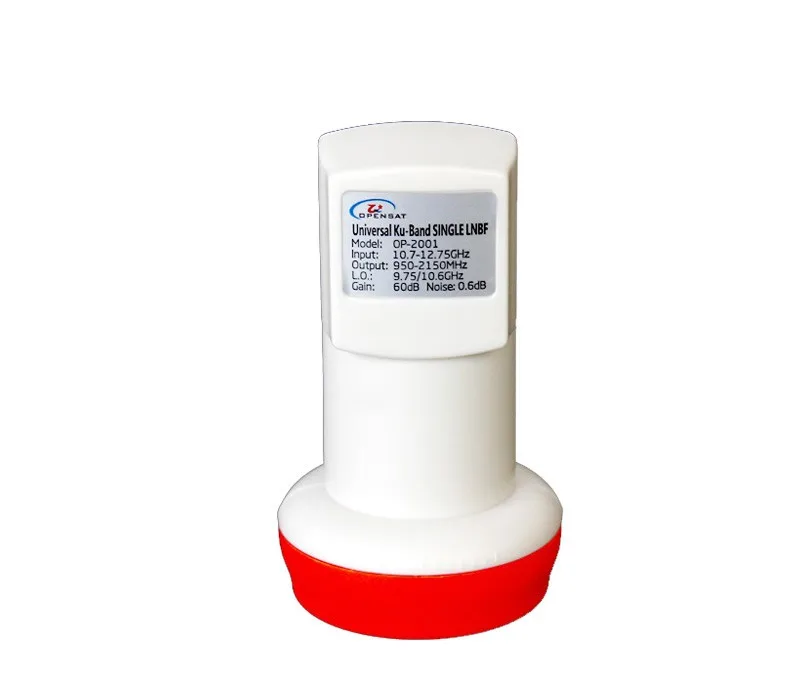

Ku-band Universal Single Output LNB

Input RF Freq Range
Low Band: 10.7 - 11.7GHz
High Band: 11.7 - 12.75GHz
Ouput RF Freq Range
Low Band: 950 - 2050MHz High Band: 1100 - 2150MHz
Output VSWR
2.0 (TYP)
Output Connector Type
75 ohm Female F connector
Local Oscillator
Low Band: 9.75GHz
High Band: 10.6GHz
L.O. Phase Noise
Max: -60 dBc/Hz @ 1KHz
Max: -80 dBc/Hz @ 10KHz
Max: -100 dBc/Hz @ 100KHz
Local Oscillator Stability
Max: +/- 2 MHz
Conversion Gain
58-65dB
Gain Flatness
+/-5 dB over full band
Noise Figure
0.6dB
Cross-pol isolation
Min: 20dB
Image Rejection
Min: 40dB
DC Current Consumption
Max: 100mA (TYP)
Polarization Selection
V : 11~14V DC
H : 16~18V DC
Band  Selection
Low Band:  0 KHz
High Band: 22 KHz
Operating Temperature
Min: -30℃  Max: 70℃

FEATURES

* High gain and low noise figure
* Low power consumption

* Superior Phase Noise performance, DVB-S2 (HDTV) compliant
* Excellent Cross Polarization Isolation

* High Quality with Ultimate Reliability

* Water proof protection

About Us

Established in year 2011, OPENSAT specializing in developing and manufacturing Ku Band LNB , C band LNBF , DiSEqC Switch, Satellite Finder, Satellite multiswitch, and other satellite TV equipments .
Our mission is to providing high quality products and good service for our customer to get sustainable development.


* More than 160 employees
* 2000 Square workshop
* 3 Assembly Line
* Strong R&D team
* Advanced equipments
* 100% Full Inspect
* Production Capacity 300K pcs per month

Packing & Delivery

Packing

Shipping

Our Service

1,    12 months quality guarantee to all of our products

2,    Free sample is available for test

3,    All inquiries will be replied within 36 hours

4,    After sale service and technic supports
