12inch 18inch 24inch Satellite dish Actuator HARL-3618

Supplier: Anhui Risesat Electronics Co., Ltd.
Region: Anhui, China
Contact: Ms Balte Z
Price: $6.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

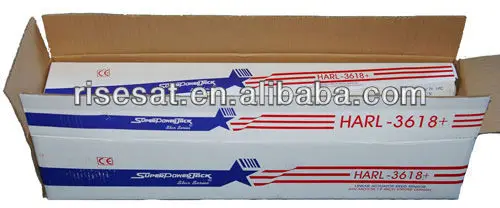

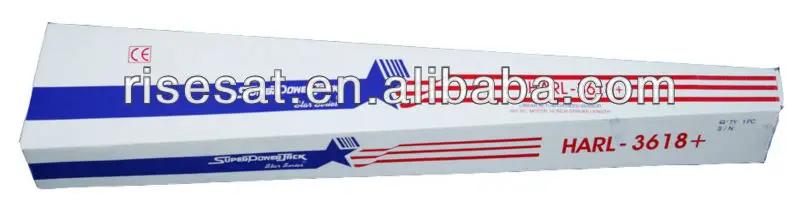

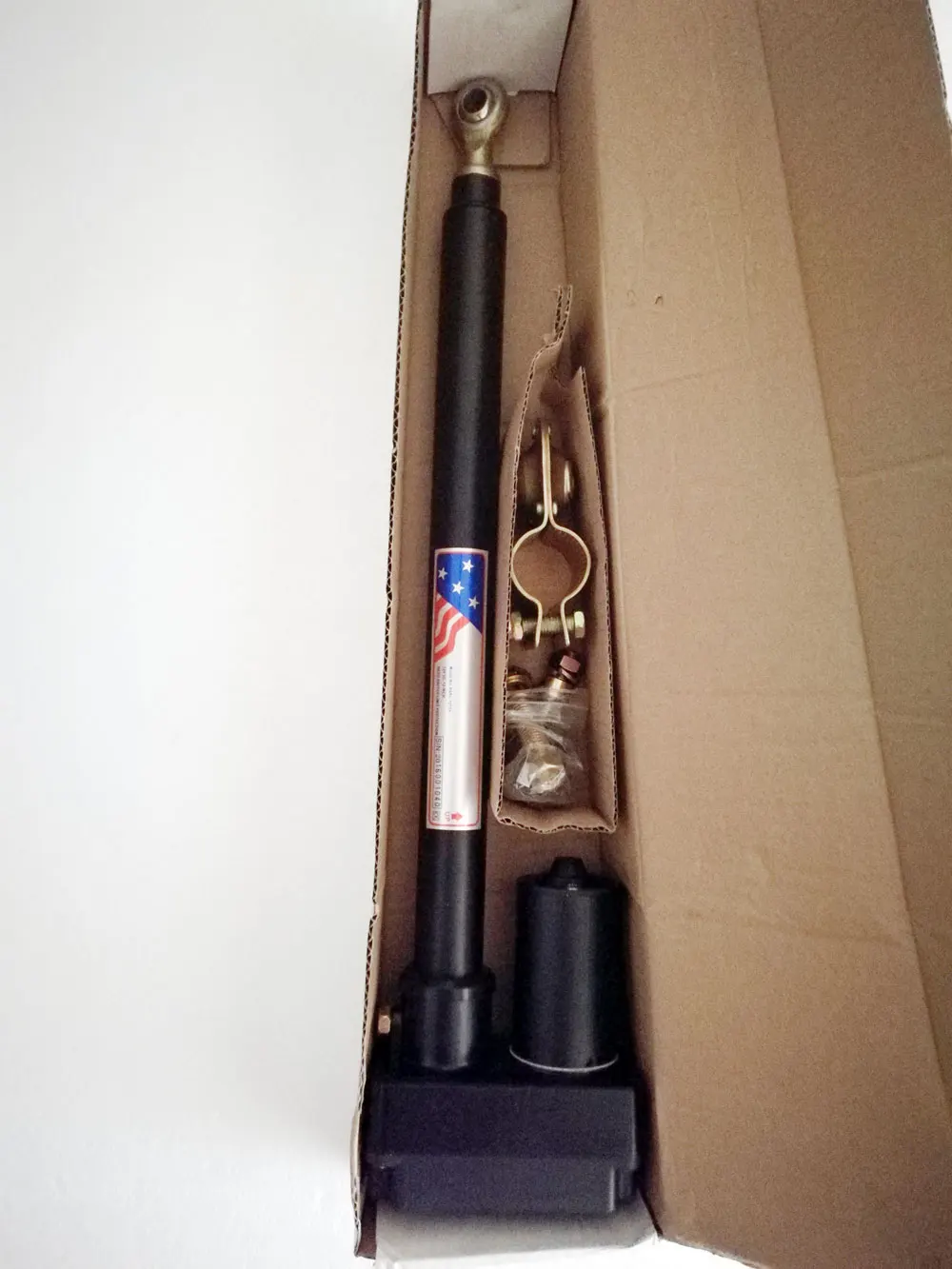

Packaging Detail:	Carton, Pallets;	Stroke:	12", 18", 24";
Port:	SHANGHAI;	Supply Ability:	100000000 Piece/Pieces per Month;
REED SENSOR:	YES;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Brand Name:	RISESAT;	Model Number:	HR;
Place of Origin:	Anhui China (Mainland);

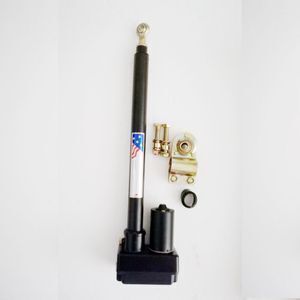

Satellite dish Actuator HARL-3618

Feature / Benefits

Adjustable stroke

Reed sensor

Acme screw

Self-locking Water & dust resistant Enhanced antirust quality

High performance & service life

Heavy duty bracket and static load capacity

ACME Screw Type
Max. Load: 3500N
Motor Voltage: 24/36V DC
Max. Speed: 50mm/sec
Standard Stroke: 18/24/36 inch
Adjustable Limit Switches
Duty Cycle: 10%

Specification:
Model	HR
Input	24/36VDC
Load Capacity	3500N
Strock Length	450/600/900mm
Drive	ACME
Full Load Speed	5 mm / sec
Duty Cycle	10%
Temperature	-26C~65C(-15F~150F)
Limit Switch	Adjustable
Sensor	Reed Switch Sensor/hall/pot/ Photoelectric
Static Load	8000N
