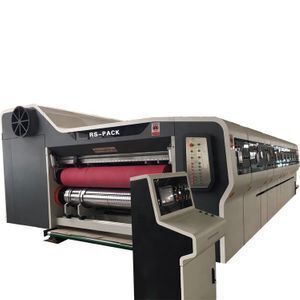

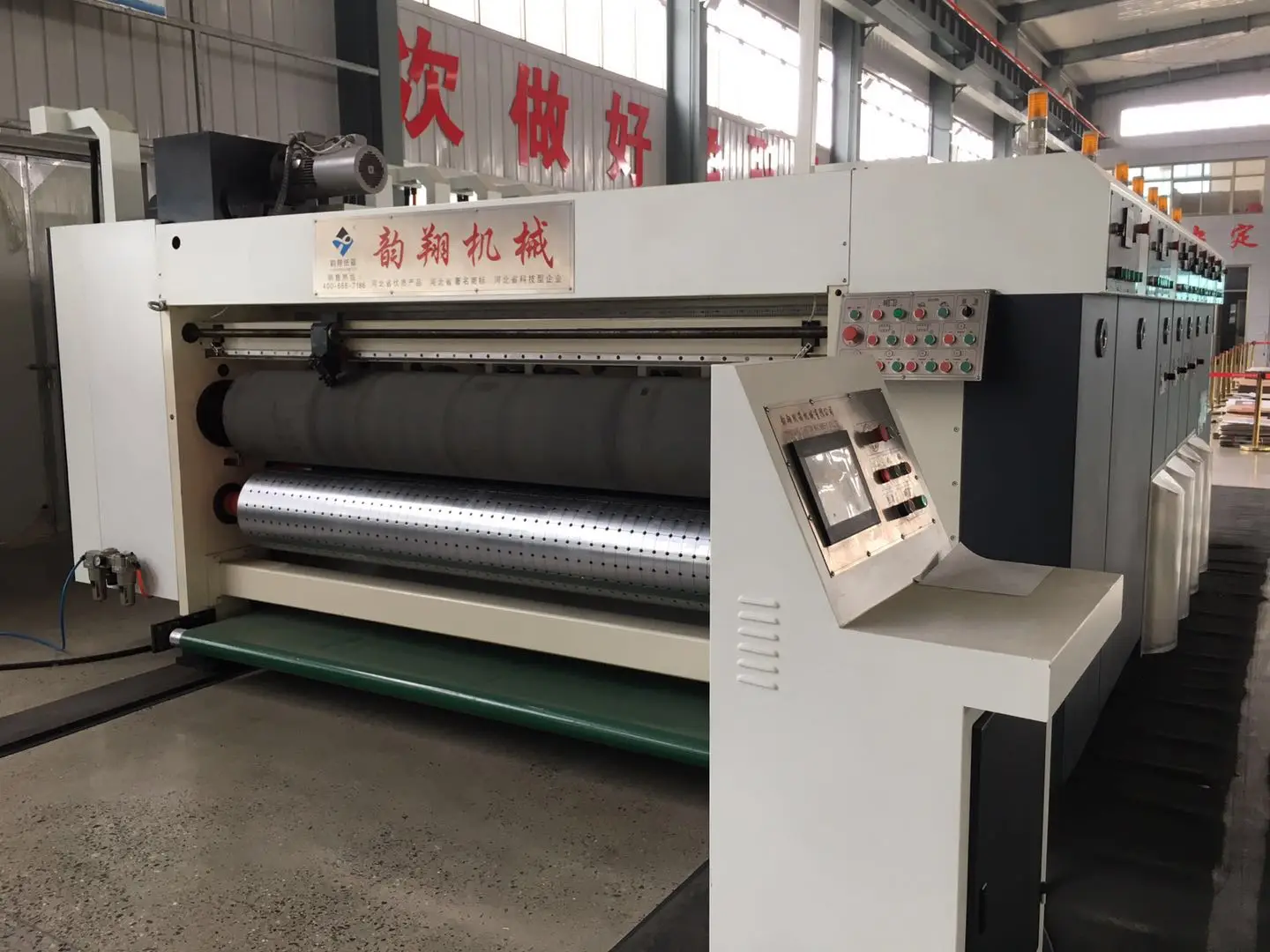

high speed carton box auto feeder printer slotter

First, the whole performance:

1. The machine is composed of paper feeding, printing, slotting and die cutting. It can complete printing, crimping, grooving, cutting and drilling of three-layer and five-layer corrugated cardboard at a time.

2. The transmission system adopts helical gear transmission with large helix angle, low noise, enhanced gear strength, and improved gear transmission stability. All transmission gears are made of 40Cr alloy steel, precision grinding, superhard processing, closed spray lubrication, long-term guarantee of the machine's transmission accuracy.

3, each unit clutch electric alarm bell, when the clutch continues to alarm, to ensure the safety of operators. Clutch motor with constant torque clutch can buffer each unit in the wrong operation.

4. After each unit is closed, each group is pneumatically locked and is equipped with a total locking device, so that the units can be locked together with the bottom rail. When the cylinder is not locked, the main motor cannot be started; when the main motor is running, the locking cylinder cannot be opened. After each unit is separated, the transmission system automatically brakes to keep the original position of the gear fixed.

5, each unit has an automatic zero system, try to send a small amount of cardboard can be adjusted to the correct size, reduce cardboard waste.

6, the whole shape beautiful, soft colors. Modular design allows you to increase or decrease each unit.

7. Bearings adopt brand-name bearings manufactured by well-known domestic manufacturers such as NSK, Harbin, and Wanxiang.

8. The main motor adopts variable frequency motor.

9, contactors, relay buttons, etc. are using well-known domestic brands Zhengtai, Schneider low-voltage electrical appliances.

10. Pneumatic original: The cylinder adopts Zhejiang "East special" famous brand cylinder, and the solenoid valve adopts Shanghai "Sono" or Guangzhou "Yadeke" famous brand products.

11, the machine uses all key-free connections to ensure connection accuracy and reliability

12, the machine feeds, prints, grooving, die cutting part of the processing technology.

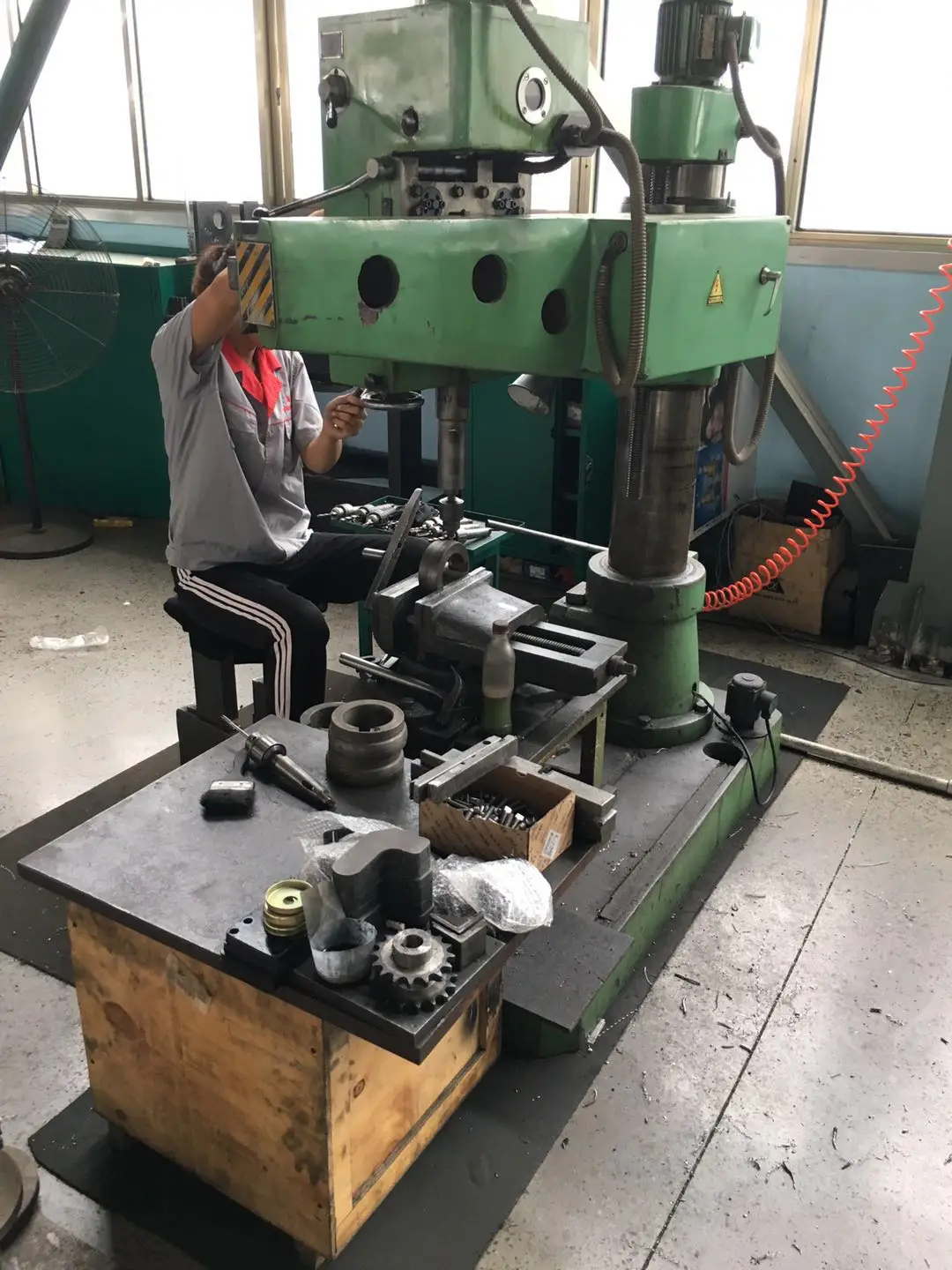

Side Wall Casting - Artificial Aging - Rough Planing - Fine Planing - Large-scale Machining Centers Integral Precision Machining - Quality Inspection - Storage

Gears: Forging - Roughing - Conditioning - Finishing - Hobbing - Heat Treatment - Grinding Inner Holes and Planes - High-precision Grinding Machine Grinding - Special Gear Inspection - - Quality Inspection - Storage

Shafts: Roughing carburizing tube bore (welding head) - Welding the first shaft plate - Coarse car outer circle - Do static balance - Welding second shaft plate - Annealing - Finishing car - Make dynamic balance - coarse grinding - fine grinding - hard chromium plating - quality inspection - storage.

Second, computer control and operation department

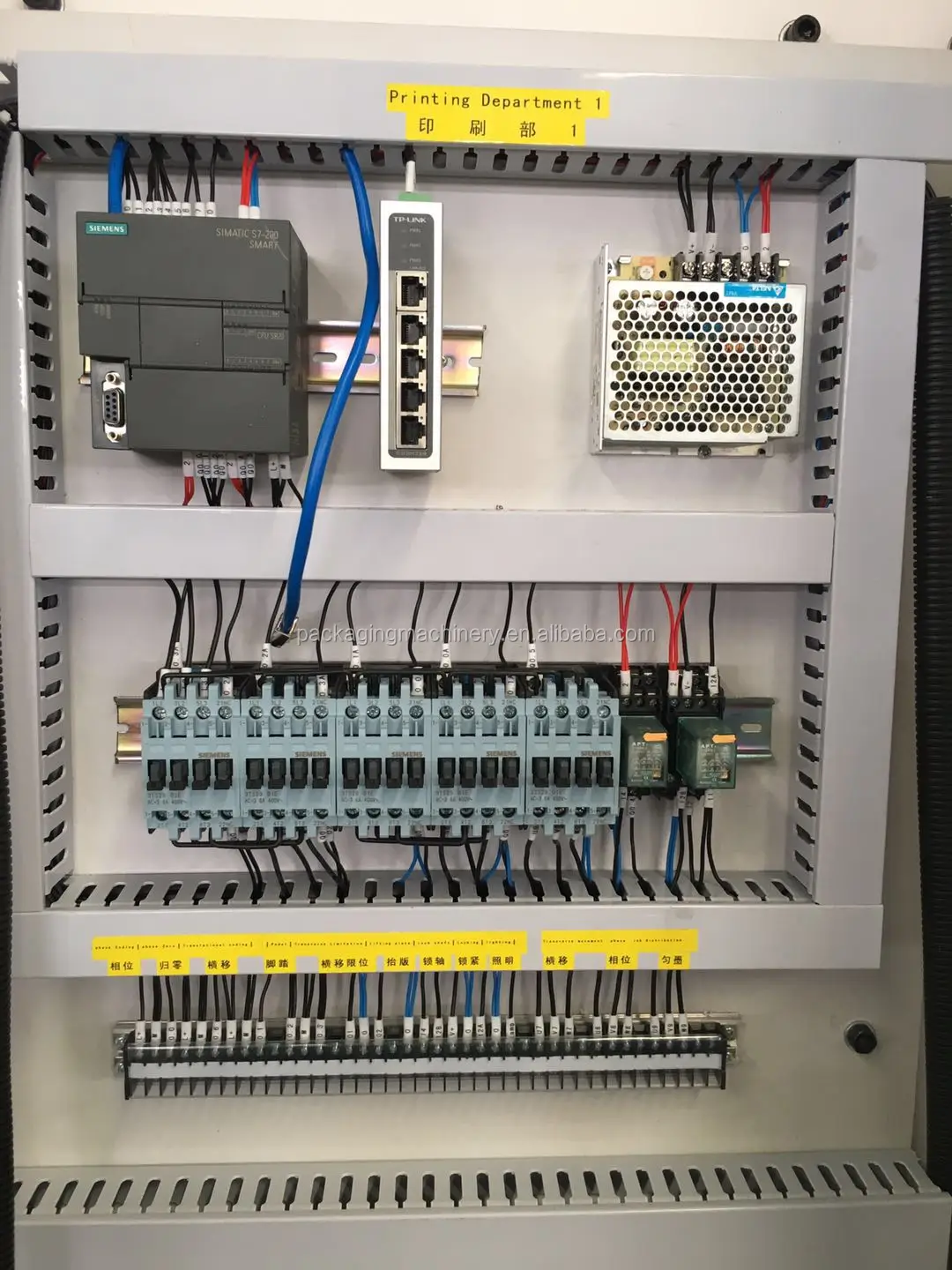

The paper feed section, printing section, slotting section, and die cutting section all adopt PLC man-machine interface control.

1, memory zero (wipe version memory): the machine in the work process, if you need to open the machine to wipe or a small version of the change, etc., after the machine is closed automatically restore the original position.

2. Controllable anilox roller lifting: When a certain group does not need to print temporarily, it can be controlled to make the group of anilox rollers not to need to be lowered, so it is not necessary to clean the ink roller.

3, position zero: the whole machine can be zero plate position, so that the plate position can be in place once.

Third, the main technical parameters Model: GYJKM-2800-4-A type
