Brand New Surveying Equipment Laser Theodolite Construction Theodolite

Product details
Field of view:1°30';Image:Erect;
Place of Origin:Chongqing China;Brand Name:Dadi;
Supply Ability:100 Set/Sets per Week;Packaging Detail:standard exporting package;
Resolving power:3.3'';Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Port:Chongqing;Magnification:30X;
Model Number:GLD-2;

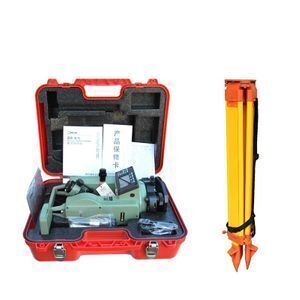

Brand New Surveying Equipment  Laser Theodolite Construction Theodolite



The GE-L series laser theodolite with built-in diode, the laser can be seen up to 200-300 meters away outside in daylight. The clear laser spot can also be seen up to 100 meters through eyepiece. It is convenient to focus and adjust the laser brightness. The laser device is integrated with telescope, resistant to dust, rain and other harsh elements. All standard functions of electronic theodolite are available in it.



Model

GD2A-L

Telescope



Length

165mm

Objective lens aperture

φ45mm

Magnification

30X


Erect

Field of view

1°30'

Resolving power

3.3''

Shortest sighting distance

1m

Additive constant

0

Stadia proportion constant

100

Angle measurement



Minimum reading

1''/5''

Accuracy

2''

Display



Display

Graphic lattice LCD on both sides

Illumination

Provided

Compensator



Tilt sensor

A Provide / B unprovided

Accuracy

3''

Compensating range

±3'

Laser plummet



Level sensitivity



Plate level

30''/2mm

Circular level

8'/2mm

Data output



Output interface

RS232C

Power supply



Rechargeable battery

1800mAh Ni-MH

Battery working time

10-20h

Others



Waterproof class

IP45

Tribrach type

Detachable

Working temperature range

-20℃~+50℃

Dimension

150X165X335mm

Weight

5kg
