Applicable Industries: | Hotels,Restaurant,Home Use; | Certification: | ce; |
Machinery Function: | peeling machine; | Raw material: | Fruit,Vegetables; |
Brand Name: | Chuangyuan; | Application fields: | Fruit processing plant,Vegetable processing plant; |
Place of Origin: | china; | Weight: | 53kgs/63kgs; |
Dimension(L*W*H): | 570*430*850mm /700*500*890mm; | After-sales Service Provided: | Free spare parts; |
Voltage: | 110/220/380V; | Warranty: | 1 year; |
Single gross weight: | 53 KG; | Single package size: | 57X43X85 cm; |
Power(W): | 1400w; | Selling Units: | Single item; |

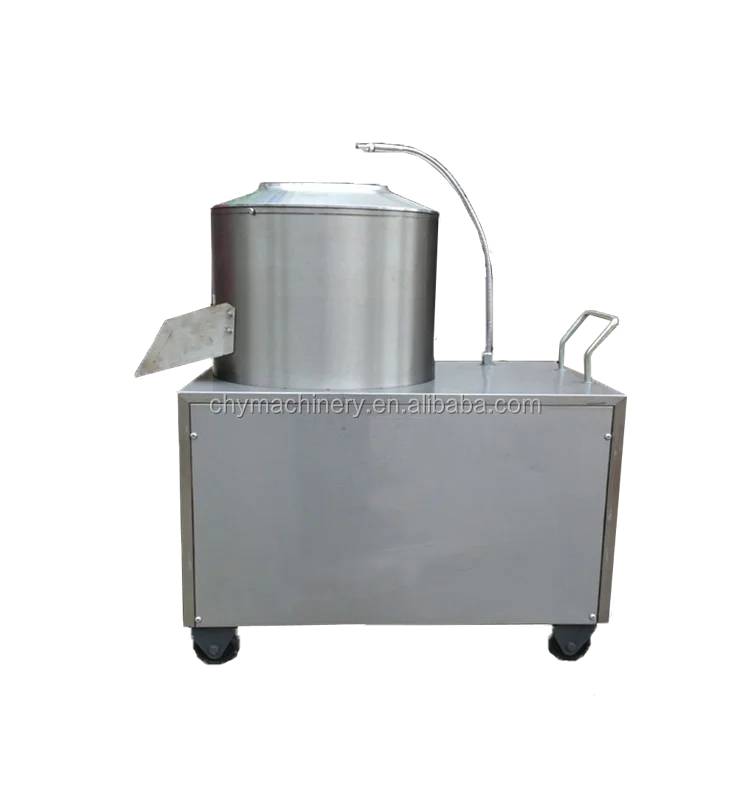

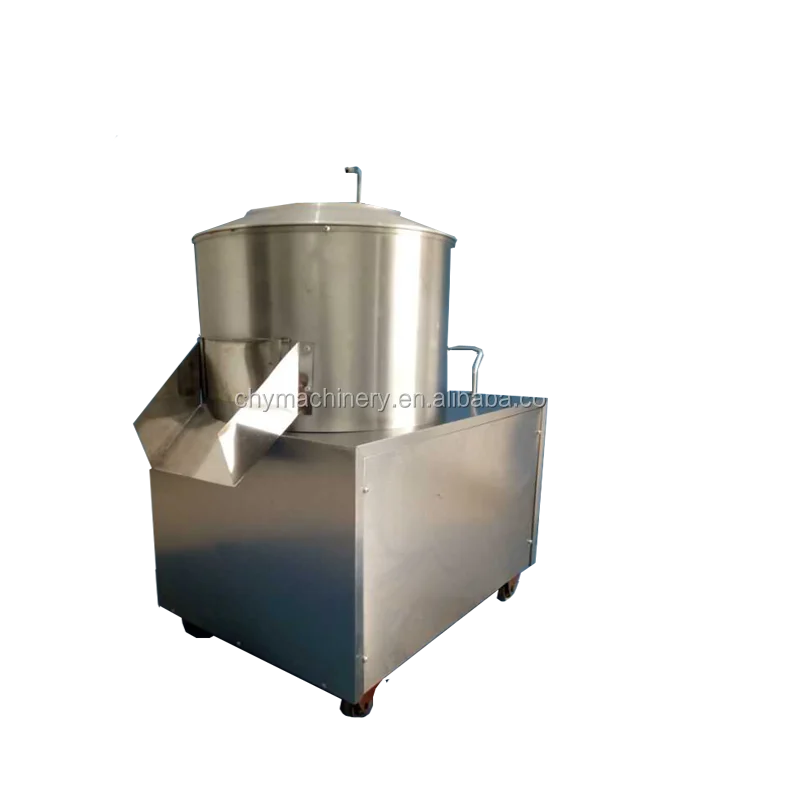

Potato peeler machine
Overview
The product is centrifugal peeling and friction peeling technology. It is used for peeling and cleaning vegetables such as potato, taro and water chestnut. The product structure is reasonable, firm and durable, easy to operate, very suitable for hotels, schools, hotels, enterprise canteens, food processing plant use. The peeling machine is clean, sanitary, low skin cracking rate, high production efficiency, simple and convenient operation, it is an ideal potato peeling equipment.
Product parameter
Model | YQ-350 |
Size | 57x43x85CM |
Net weight | 45kg |
Power | 1400w |
Voltage | 110V 220V 380V |
Production | 150-220KG/H |
Model | YQ-450 |
Size | 70x50x89CM |
Net weight | 55kg |
Power | 1400w |
Voltage | 220V 380V |
Production | 300-500KG/H |
Instructions
1, Turn on the power, start the switch (such as equipped with three-phase motor, you need to see whether the direction of rotation of the cylinder within the cylinder is marked with the direction of rotation of the arrow on the cylinder, the inconsistency will be three-phase power of any two Phase transfer can be re-connected)with a hose to the water inlet and tap water switch connected to the sewage discharge can be connected according to the situation, put the container or directly row sewer.
2,before starting the machine, potatoes will be put from the mouth.YQ- 450 20-30 kg each time is appropriate
3,3. open the water inlet switch, flush water into the rotary drum, adjust the discharge amount of the metal intake pipe appropriately, and start the machine switch.
4,Machine work about 2 minutes or so, turn off the power switch and the water switch, depending on the potato peeling situation, if the potato skin has been off the net, you can open the cylinder door, start the power switch, potatoes in the dial plate rotation, Automatic removal.
5. When the machine is in use, if any abnormal situation (such as into the hard body into the tube), should quickly turn off the power switch, to be troubleshooting, restart, the machine work properly.
Matters needing attention
1. Before the machine starts, carefully check whether there is debris in the cylinder.
2. When the machine is working, the hand is not allowed to be put into the cylinder
3. Before cleaning and dismantling, first disconnect the power supply, so that the machine stops running.
4. In order to ensure safety, grounding must be reliable at the grounding mark.
5. bearings replace calcium base grease every 3 months.
Guarantee Machine: 1 years
Packing & Shipping
Potato Peeling Machine Package is wooden box. If you want to get package picture, Hope you can contact me, I will send it to you immediately. Thanks!
