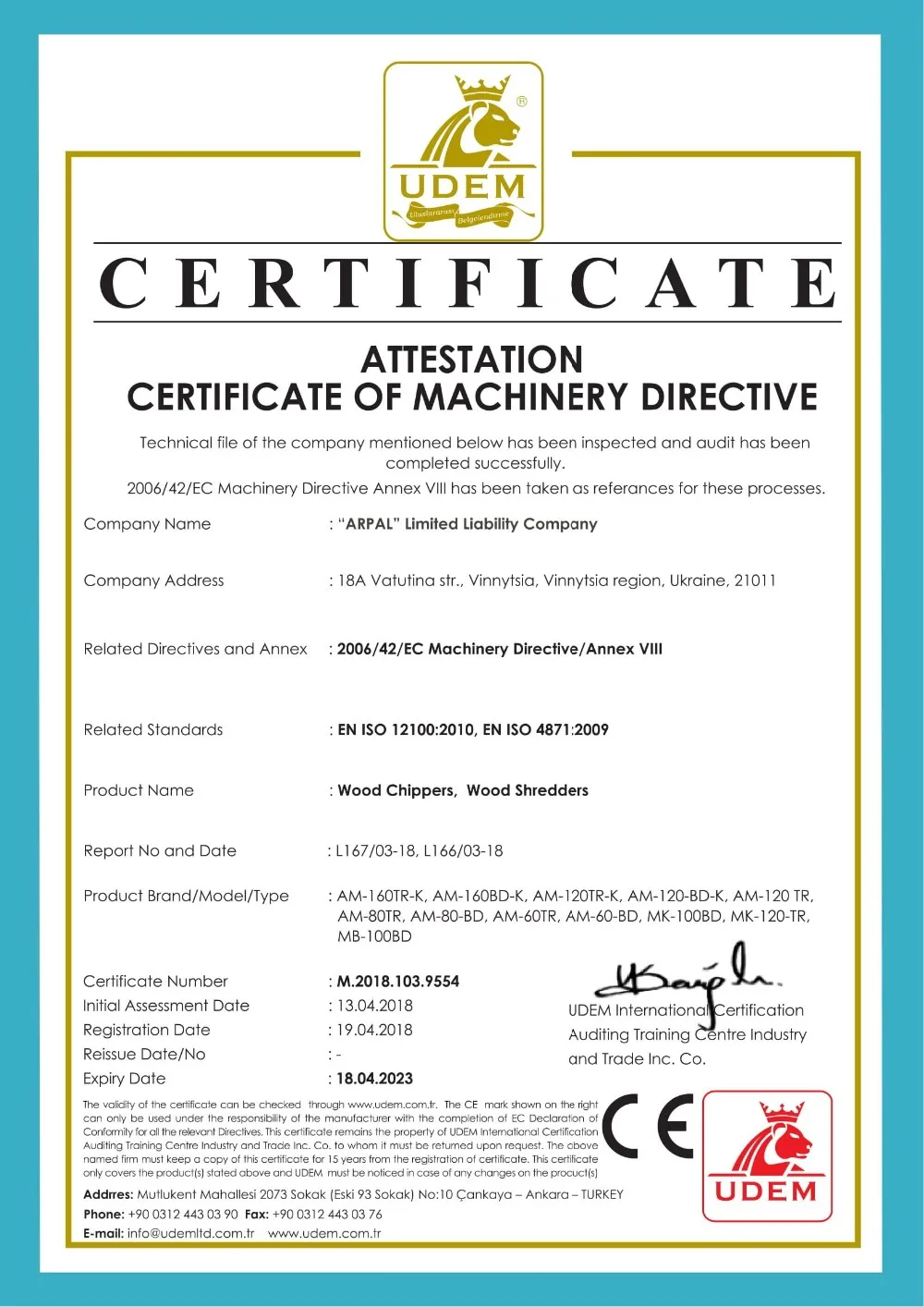

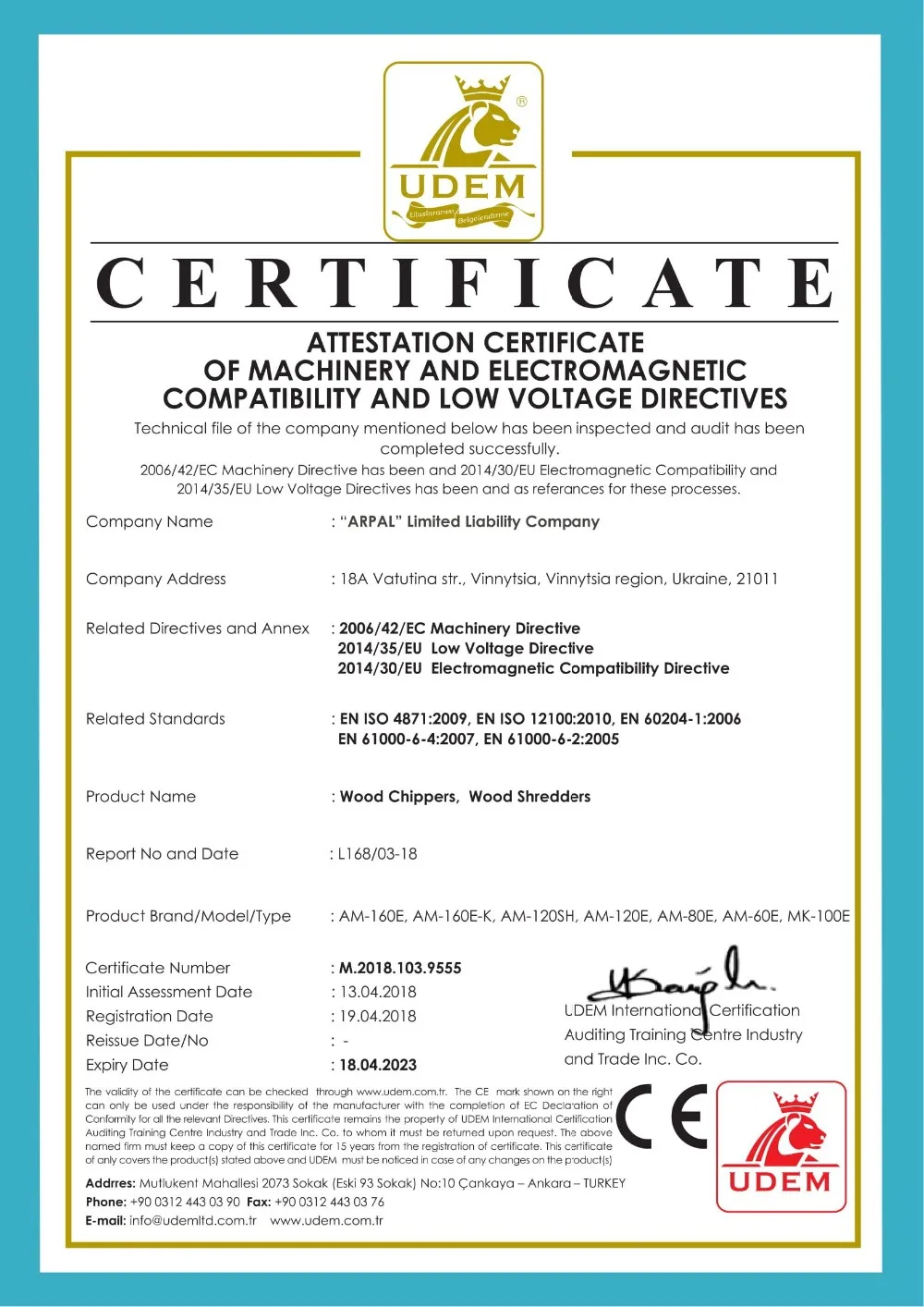

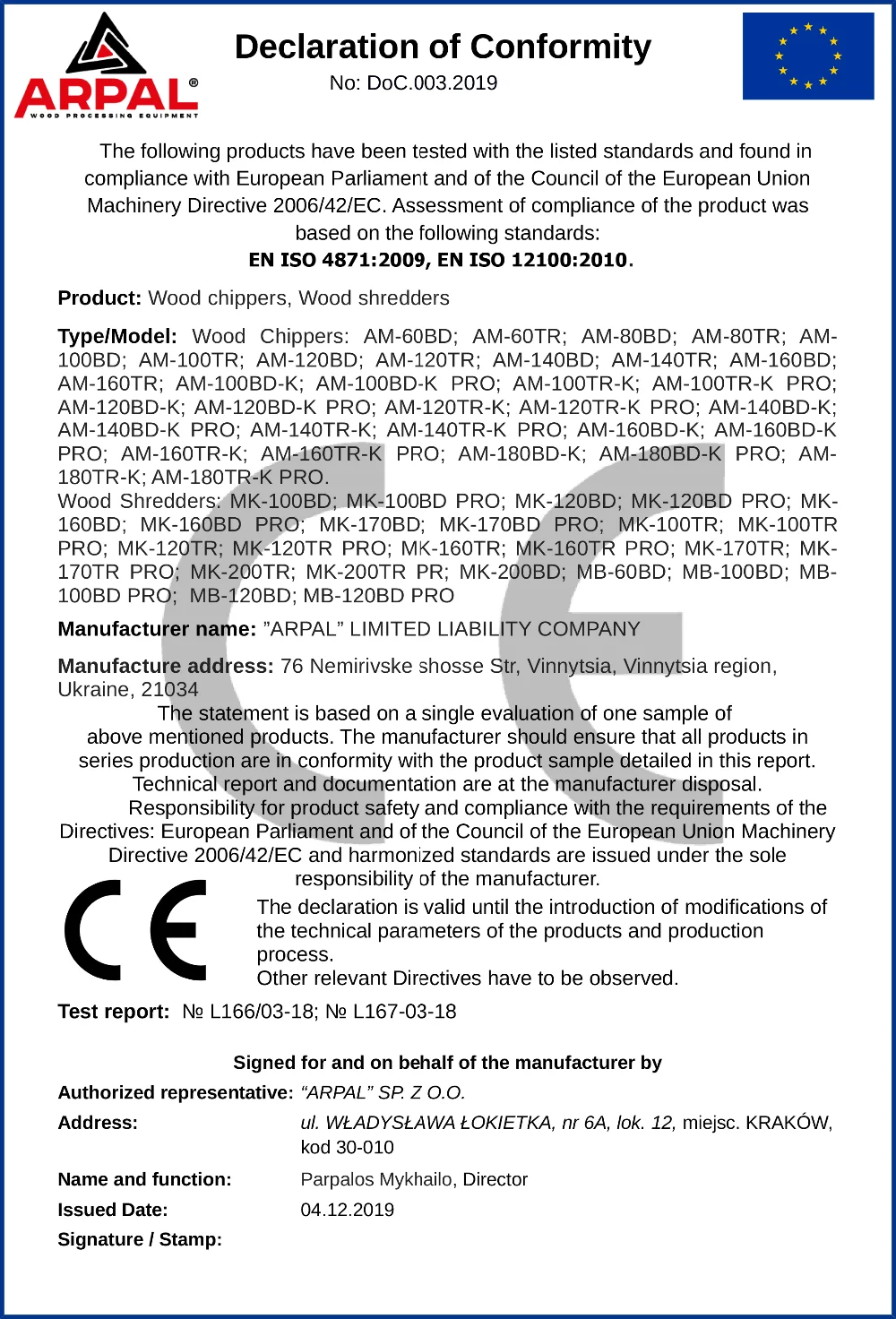

Wood chipper, gasoline garden chipper CE approved, pro wood chipper shredder ARPAL AM-120BD MAX

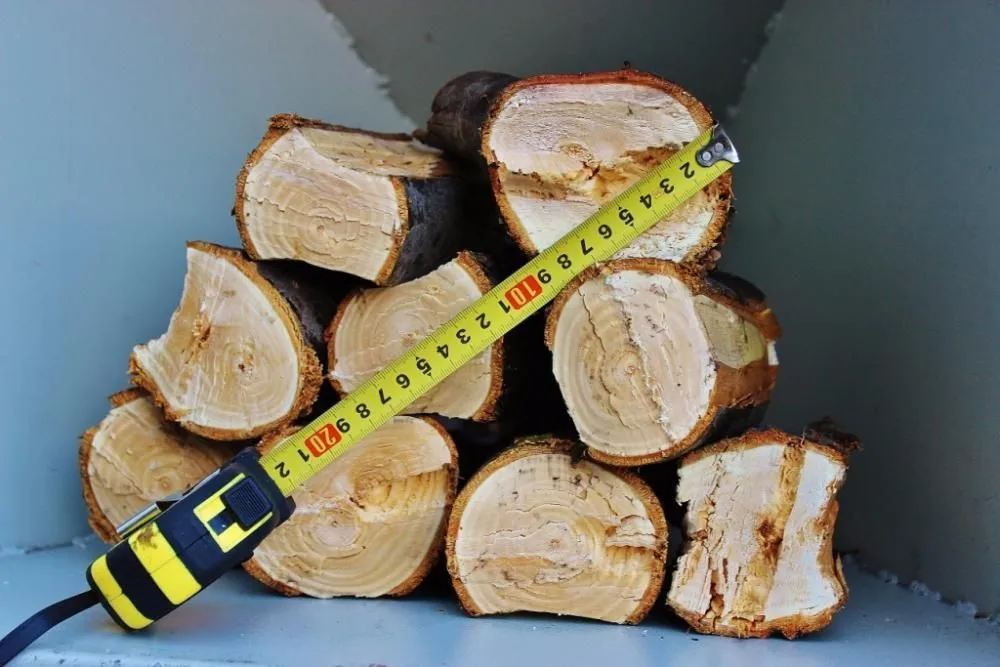

The wood chipper AM-120BD MAX is designed for processing and utilization by cutting branches, laths, boards, slats and other wood waste. The shredder of the branches turns the raw material into pieces with a length of 9 ... 18 cm, this size is not regulated but depends on the diameter (thickness) of the raw material. The chopper AM-120BD MAX is able to cut branches up to 12 cm in diameter, depending on the moisture and wood species. Chopped branches are ideal fuel for pyrolysis and solid fuel boilers, fireplaces, stoves and other heating appliances, as well as for the production of charcoal.
The productivity of wood chipper AM-120BD MAX is 6 cubic meters of ready products per hour. Productivity directly depends on the quality of raw material preparation and the number of personnel involved in the work. The grinder of branches AM-120BD MAX is equipped with a gasoline engine of the brand WEIMA with a capacity of 16 hp. fuel consumption of which is only 800 g / h. This engine is one of the most high-quality on the territory of Ukraine, service centers are located in each region. The engine is protected against overload by a special friction clutch of our design. The engine has a separate warranty from the manufacturer for a period of 12 months.
The working element of the chopper is knives. The AM-120BD MAX grinder has 6 knives, the knives are made of AISI 5140 steel, have a double angle of grinding and necessarily pass the heat treatment process on a modern HDTV installation. Cutting knives are inserted into the milled groove of the working shaft, this technology significantly reduces the load on the fixing bolts of the knives.

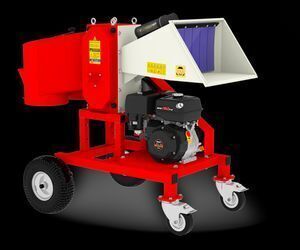

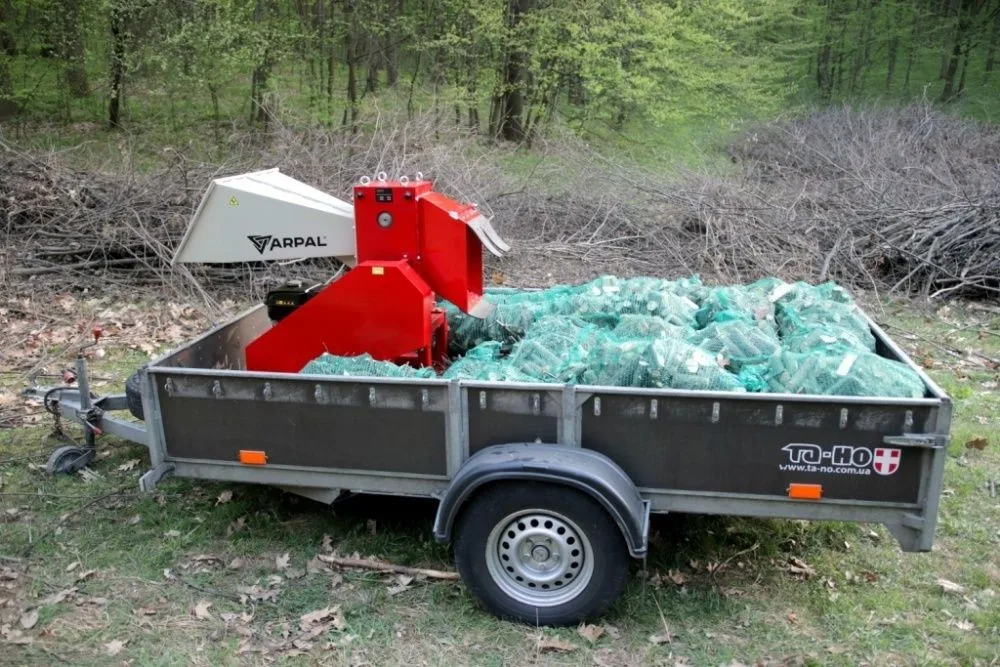

Wood chipper AM-120BD MAX is installed on a rigid frame from a profile pipe that is equipped with wheels for the convenience of moving the shredder branches through the territory. Two pneumatic wheels and two turning wheels with a brake are mounted on the frame for the convenience of maneuvering and fixing the chopper in place. On the wood chipper AM-120BD MAX, an outlet hopper is installed that can pack finished products into sacks. The unloading hopper has two fasteners under the mesh and a slide switch which allows you to select the desired direction of discharge.
This design allows you to significantly accelerate the process of packing chopped firewood. For the AM-120BD MAX chopper, standard mesh sizes of 50x80 cm are suitable. You can order a complete set with a direct output hopper, for the shipment of crushed raw materials in mound. The AM-120BD MAX branch chopper is equipped with a special safety knob which is located on the edge of the input hopper and serves for an emergency stop of the chopper branches during operation. Also, the input hopper is equipped with a curtain made of transparent PVC to protect the operator from chips during operation

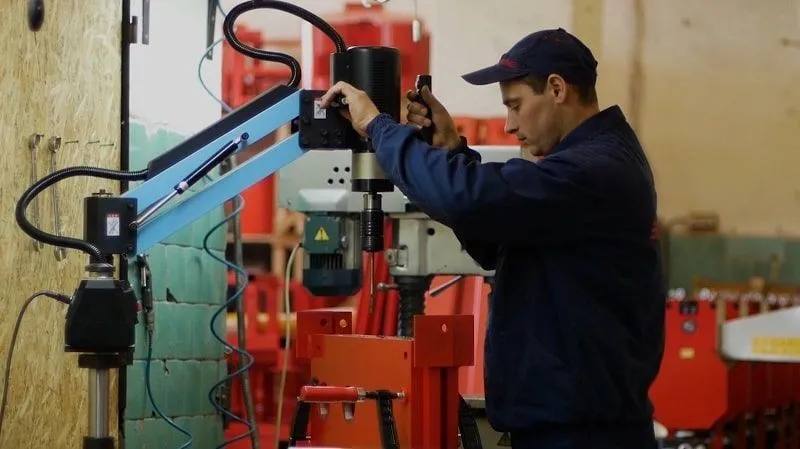

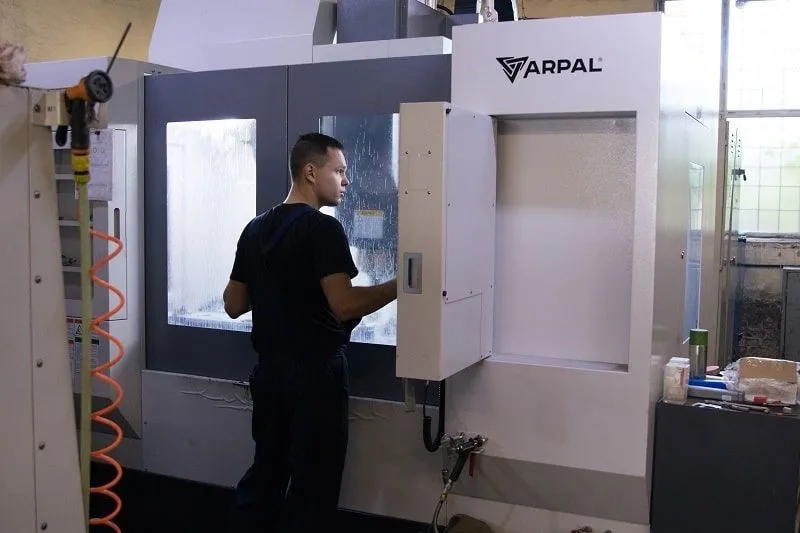

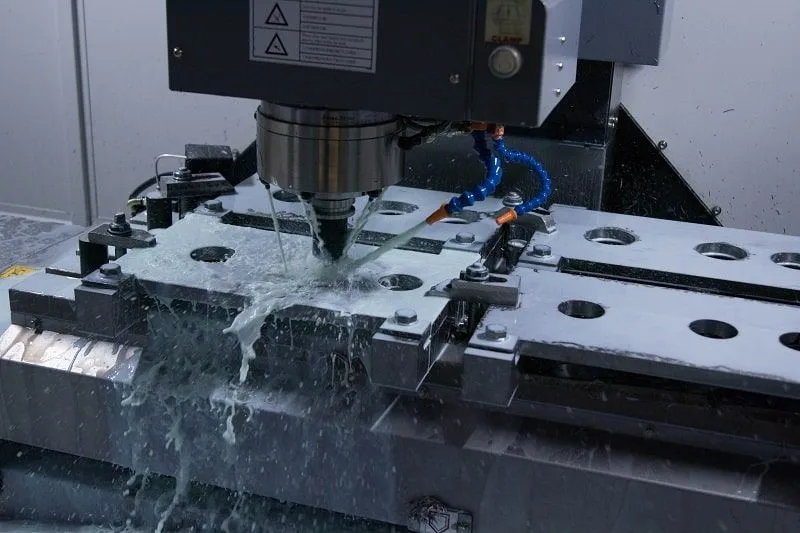

The wood chipper AM-120BD MAX is completely produced at our enterprise. We control the quality of all stages of our production, all landing surfaces are obligatory grinding. Quality control of welded joints is carried out. Before painting, all constructions are stripped. The shredder is covered with powder paint, which significantly extends the life of the constructions.
We are confident in our products; therefore, we provide a 36-month guarantee for the AM-120BD MAX. In addition, we, as a manufacturer, produce both guarantee and post-warranty maintenance of the wood chipper AM-120BD MAX.
By purchasing a wood chipper from us you get a reliable assistant on the way to your energy independenc
