Packaging Detail: | dental floss pick making machine will be packed by wooden case; | Supply Ability: | 100 Set/Sets per Month; |
Opening Stroke: | 180mm; | Platen Size: | 520*370; |
Max. Shot Weight(PS): | 65, 75, 90g; | Condition: | New; |
Clamping Force: | 35tons; | Screw Speed Max: | 0-205rpm; |
Injection Pressure: | 1750, 1552, 1325kg/cm; | Brand Name: | Zhenhuan; |
Voltage: | 380V; | Port: | Ningbo; |
Place of Origin: | China; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Warranty: | one year; | Weight: | 1.5 tons; |
Dimension(L*W*H): | 1.6 x 1.2 x 2.7m; | Screw Stroke: | 120mm; |
Machine Weight: | 2000kg; | Nozzle Contact Force: | 2.5tons; |
Power(W): | 9kW; | Screw Diameter: | 28, 0, 32mm; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |

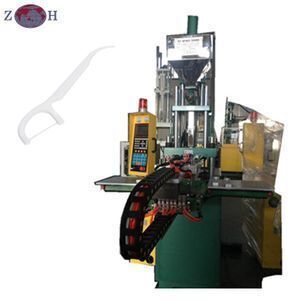

Full Automatic dental floss pick making machine
I Description of dental floss pick making machine
This production line is specialized for floss pick with full automatic.
The machinery includes one set of injection machine, one set of mold, and one set of automatic tool for process product, and pay-off stand for wires.
Capacity: around 80,000/day. One worker for packing floss picks can operate 3 sets of machine. This production line can save about 15 -18 workers than traditional production mode.
II Features of dental floss pick making machine
1- Electronic control with Chinese and English, LCD display screen.
2- High precision temperature control system. Temperature for working is stably.
3- Screw and cylinder is specialized for floss pick process.
4- Full automatic from feeding, counting and cutting wires
III Technical data of dental floss pick making machine
MODEL | Unit | ZH-300 | |||
Injection system
| Screw Diameter | mm | 28 | 30 | 32 |
Injection Pressure | kg/cm | 1750 | 1552 | 1325 | |
Max. Shot Weight(PS) | g | 65 | 75 | 90 | |
Max. Shot Weight(PS) | OZ | 2.2 | 2.5 | 3 | |
Screw Stroke | mm | 120 | |||
Screw Speed Max | rpm | 0-205 | |||
Nozzle Contact Force | tons | 2.5 | |||
Nozzle Retraction Stroke | mm | 140 | |||
Number of Temperature Control | - | 3 | |||
Material Hopper Capacity | L | 15 | |||
clamping system | Clamping Force | tons | 35 | ||
Platen Size | mm | 520×370 | |||
Distance Between The Bare | mm | 350×200 | |||
Min. Mold Height | mm | 150/210 | |||
Opening Stroke | mm | 180 | |||
Max. Opening Daylight | mm | 350/400 | |||
Ejector Force | tons | 1.5 | |||
Ejector Stroke | mm | 95 | |||
Hydraulic and power system | Max. Hydraulic Pressure | kg/cm2 | 150 | ||
Pump Output | L | 41 | |||
Oil Reservoir Capacity | L | 150 | |||
Cooling Water Consumption | L/h | 600-800 | |||
Pump Motor Power | kw | 5.5 | |||
Barrel Heating Power | kw | 3.5 | |||
Total Power | kw | 9 | |||
Others | Machine Weight | tons | 2 | ||
Machine Dimension (L×W×H) | m | 1.6×1.2×2.7m | |||
Shipping Weight | tons | 1.5 | |||
Shipping Measurement(L×W×H) | m | 1.8×1.5×1.5m | |||
Video link | https://youtu.be/j5uo96JIllM |
If you have any questions, please contact us freely
Cherie Mao
Phone number: +86-13485105931( Whatsapp)
Skype: yuexuanmao
Wetchat or QQ: 329177765

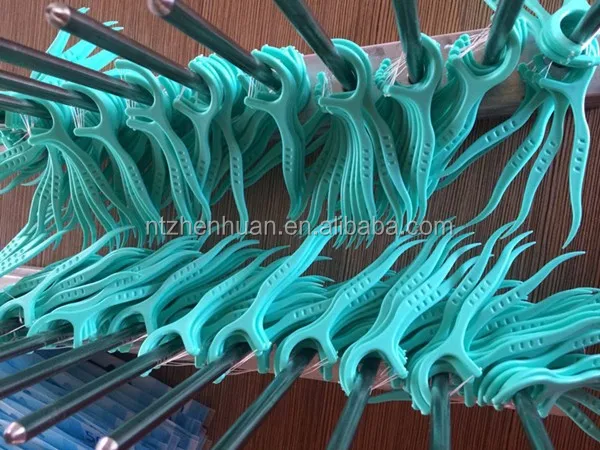

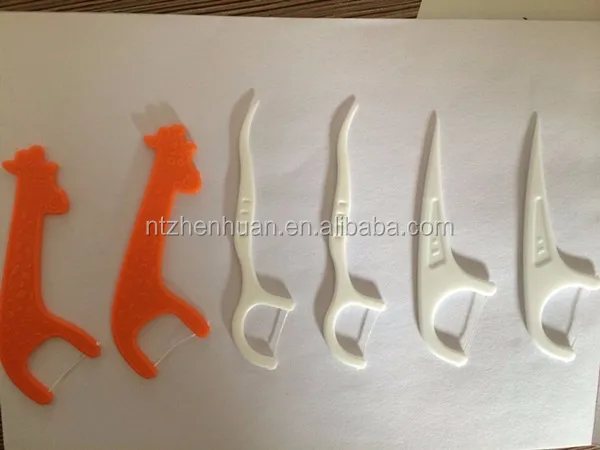

II Photos of dental floss pick making machine
We are established on 2004, more than 12 years experiences on providing dental floss pick making machine solutions. We are certified by SGS, TUV and BV on our credit and profession.
