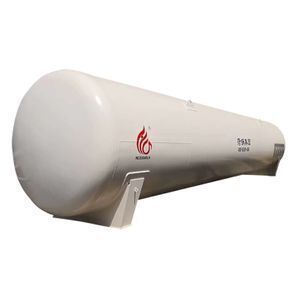

Lar/Lin/Lox/Lco2 /LNG Cryogenic Storage Gas Tank

Product details
Supply Ability:100 Set/Sets per Month lng rank, lng storage tank,cryogenic tank for lng;Diameter:DN2916mm;
Certification:ISO9001/ISO14001;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Port:Qingdao,Tianjin,Shanghai Port;Pressure:0.8/1.2MPa;
Color:white or other;Medium:LNG;
After-sales Service Provided:Field installation, commissioning and training, Field maintenance and repair service, Online support;Length:14929mm;
Packaging Detail:Liquid oxygen/nitrogen/argon/LNG cryogenic storage liquid tank package: 1.one set 5cbm LNG tank can be packed into one 20GP 2.One set 10cbm LNG Tank can be packed into one 20GP 3.20cbm to 50cbm LNG Tank should be packed into flat rack or in bulk ship 4.60cbm to 100cbm natural gas cryogenic tank should be packed into bulk ship;Warranty:1year;
Size:also can customized;Weight:21760kg;
Name:Lar/Lin/Lox/Lco2 /LNG Cryogenic Storage Gas Tank;Condition:New;
Structure:horizontal or vertical type vessels;Brand Name:Heguo;
Place of Origin:Shandong China;Capacity:60CBM;
OEM:Available;Type:cryogenic vacuum storage tanks;
Dimension(L*W*H):14929 x 2916 x 2916mm;

Lar/Lin/Lox/Lco2 /LNG Cryogenic Storage Gas Tank



Technical Parameters of Low Temperature Tanks



Type

Model

Capacity

(m3)

Pressure

(MPa)

Dimensions

(mm)

Weight

(kg)



LNG



Cryogenic



Tank

CFL-5/0.8

10

0.8

Φ1916*5070

3100

CFL-10/0.8

15

0.8

Φ2316*5810

4600

CFL-20/0.8

20

0.8

Φ2416*8940

7700

CFL-30/0.8

30

0.8

Φ2920*8570

14200

CFL-50/.8

50

0.8

Φ3220*11320

17100

CFL-60/0.8

60

0.8

Φ3020*14460

21100

CFL-100/0.8

100

0.8

Φ3424*17530

34500

CFL-60/1.2601.2Φ3320*1273024600
CFL-100/1.21001.2Φ3224*1862041000
CFW-60/1.2601.2Φ3220*1344023650



+

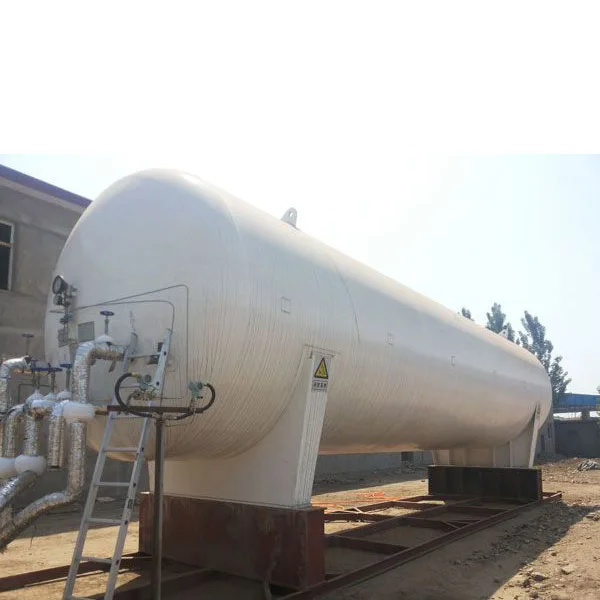

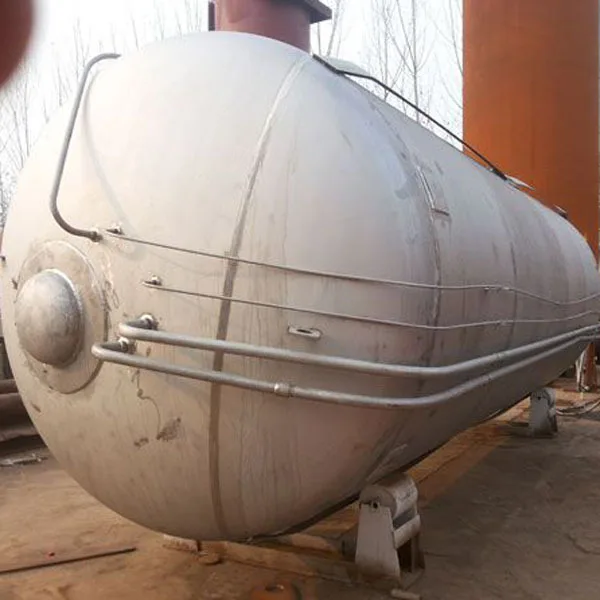

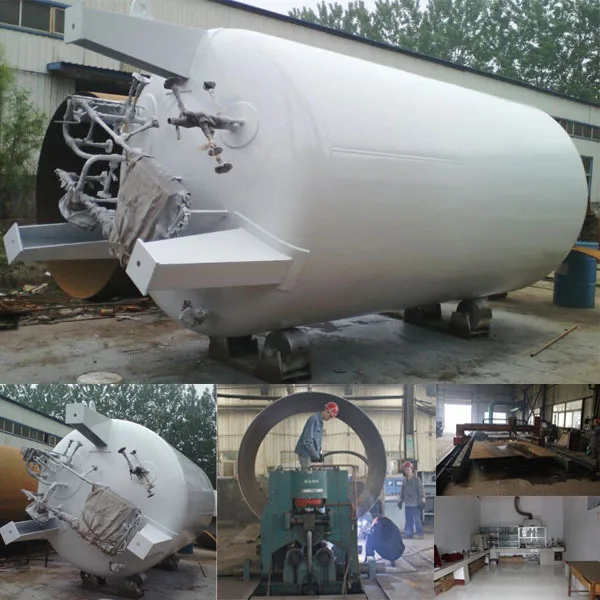

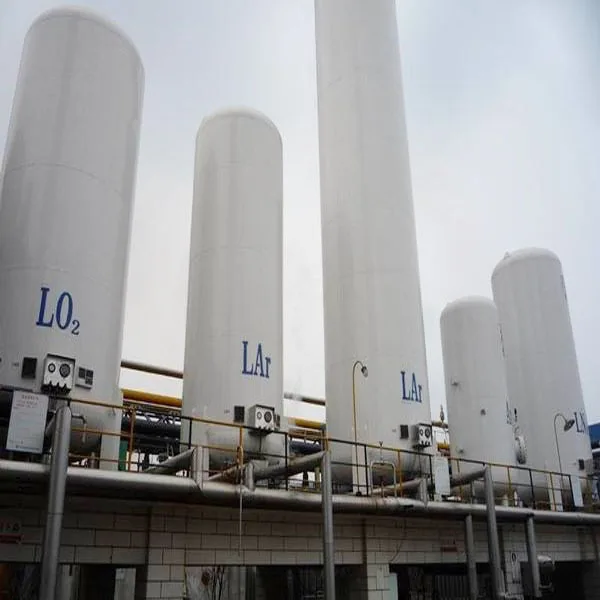

Cryogenic tank(Liquid Oxygen/Nitrogen/Argon Tank)

Vacuum insulated cryogenic storage tanks introduction:



Universal tanks are engineered for maximum flexibility and minimum cost. The new

design makes installation a process saving time and resources. Our optimized piping

design makes operating and maintaining a tank very easier. Readily accessible

valves and controls provide ample clearance, facilitate operation and simplify

maintenance procedures. Wider space and superior performance meet the flow

requirements of a complete range of gas and liquid applications.



Vacuum insulated cryogenic storage tanks have the following

features:

  • Simple tube structure
  • No need to replace the insulation material regularly
  • Excellent insulation and low static evaporation
  • Tank inter layer passes strict leakage test
  • Convenient system operation and small area requirement.

Applications


Vacuum powder insulation cryogenic tanks are used to supply liquefied oxygen,

nitrogen, argon and other liquefied gases.

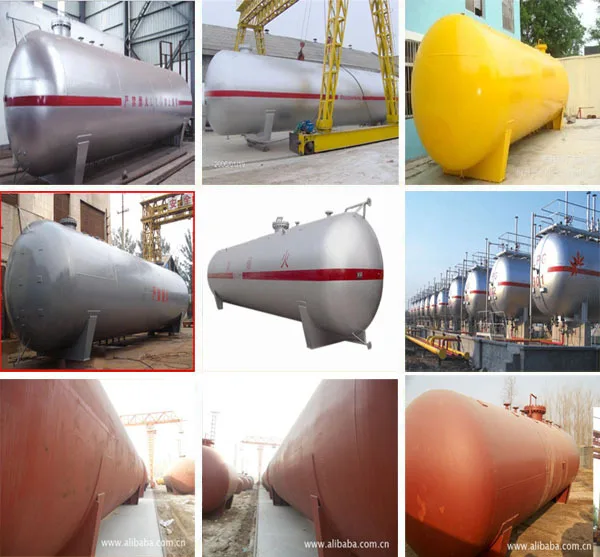

Cryogenic Pressure Vessels

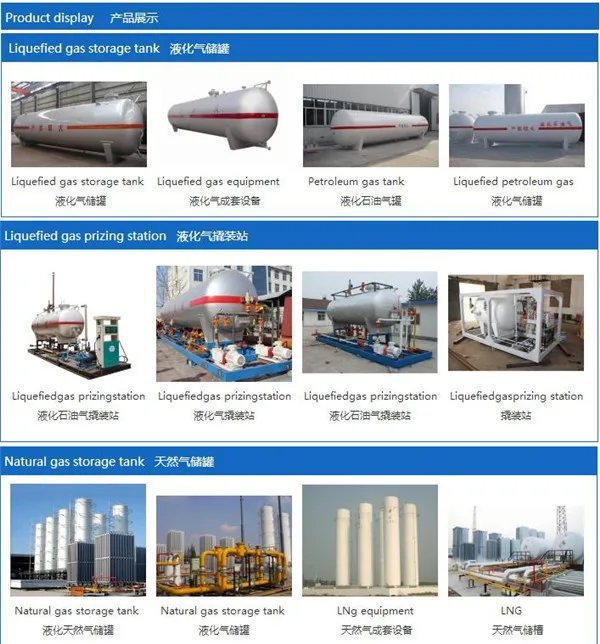

Pressure Vessels Type

  • Liquefied Petroleum Gas Tank(LPG)
  • Non-standard chemical tanks
  • Liquefied Natural Gas Tanks (LNG)
  • Cryogenic tanks--Oxygen,Nitrogen,Argon
  • Stainless steel pressure vessels
  • Complete Non-Standard Chemical Equipments

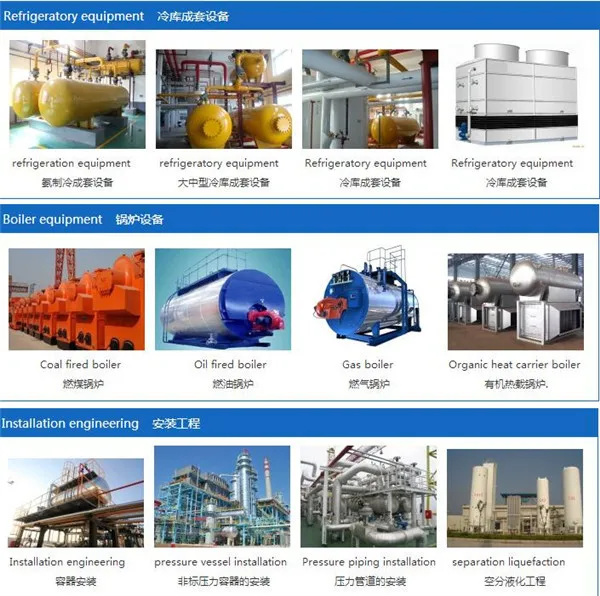

  • Heat Exchanger,Refrigerator Auxiliary Equipments

+

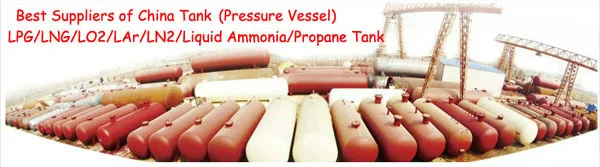

Our advantages of Pressure Vessels
  • the biggest tanks production base of China
  • High quality steel materials
  • Perfect quality assurance system
  • Complete welding process
  • More than 30 years experiences
  • Advanced technology and equipments
    • Heat treatment
    • Blanking
    • Joining
    • Welding
    • Pressure testing
    • Blasting process
    • Painting

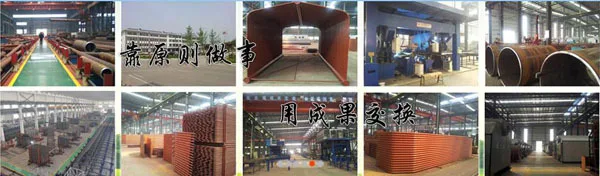

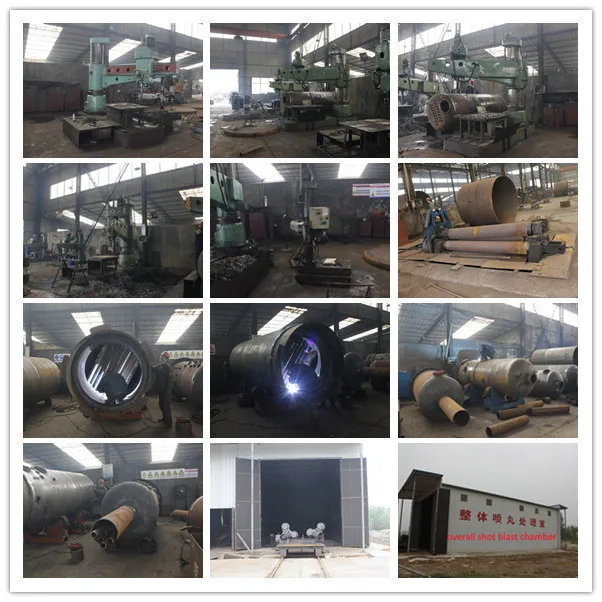

Factory Area

  • Production equipments

We have complete production lines of pressure tanks. Equipments of every

productionprocesses, such as blanking, joining, welding, heat treatment,

pressure testing,blasting process, painting are advanced. It guarantee quality

and ensure timely delivery.

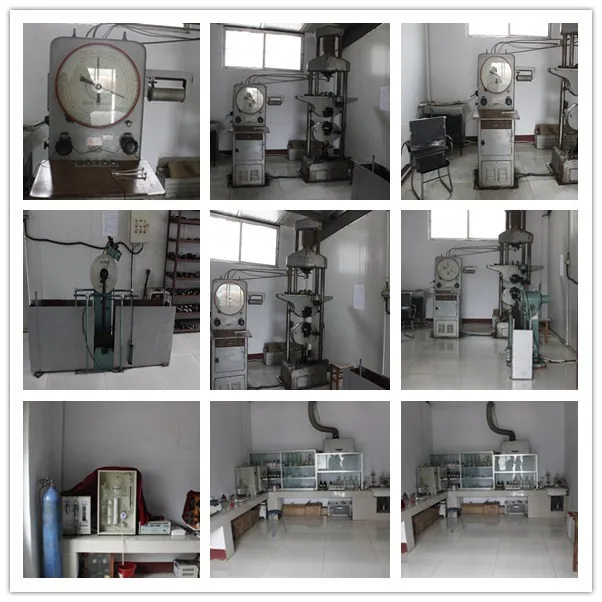

  • Testing equipment

Detection of strict quality assurance

Advanced processing and testing equipment, strict testing technology

and professional technical talents are keys of getting accurate results.

Accurate testing is guarantee of quality assurance.

  • Certifications
