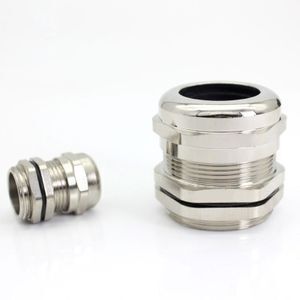

Customized High Quality IP68 Waterproof Brass Metal Cable Gland

Click here to contact

Product details

Brand Name:	JXLJQ;	Protection Level:	IP68;
Type:	Nickel Brass;	Certificate:	RoHS ISO9001 CE TUV;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Size:	PG7-PG63;
Protection Degree:	IP68(with Sealing);	Supply Ability:	14000 Piece/Pieces per Week;
Usage:	Lock Cable Tight;	Feature:	Weather Proof;
Factory Report:	ISO90001;	Working Temperture:	Static State:-40 -110 Dynamic:-20 -80;
Material:	Brass;	Port:	Ningbo Port;
Packaging Detail:	Export standard carton;	Model Number:	Metric size;
Place of Origin:	Zhejiang China;

Brass Cable Gland - Metric thread
Product Code	Thread AG	Applicable cable range(mm)	Thread O.D.(mm)	Mounting Hole Diameter (mm)	Thread length GL(mm)	Spanner Size (mm)	Std, Pkg (pcs)
JX-M12A-MG	M12*1.5	3-5.3	12	12-12.3	8	17/17	10
JX-M12B-MG	M12*1.5	4.5-7.8	12	12-12.3	8	17/17	10
JX-M16A-MG	M16*1.5	4-7	16	16-16.3	9	22/22	10
JX-M16B-MG	M16*1.5	6-10	16	16-16.3	9	22/22	10
JX-M20A-MG	M20*1.5	5-8.8	20	20-20.3	9.5	24/24	10
JX-M20B-MG		7-12	20	20-20.3	9.5	24/24	10
JX-M20C-MG		9-14	20	20-20.3	9.5	26/26	10
JX-M25-MG	M25*1.5	12-16	25	25-25.4	12	32/32	10
JX-M32A-MG	M32*1.5	16-22	32	32-32.4	12.5	41/41	10
JX-M32B-MG	M32*1.5	18-25	32	32-32.4	12.5	41/41	10
JX-M40A-MG	M40*1.5	21-25	40	40-40.4	15	50/50	10
JX-M40B-MG	M40*1.5	24-30	40	40-40.4	15	50/50	5
JX-M50A-MG	M50*1.5	26-32	50	50-50.4	15	60/60	2
JX-M50B-MG	M50*1.5	31-41	50	50-50.4	15	60/60	2
JX-M63A-MG	M63*1.5	40-46	63	63-63.4	15	73/73	2
JX-M63B-MG	M63*1.5	44-51	63	63-63.4	15	73/73	2
JX-M75A-MG	M75*1.5	50-56	75	75-75.6	15	85/88	1
JX-M75B-MG	M75*1.5	56-66	75	75-75.6	15	85/88	1
JX-M90A-MG	M90*1.5	58-68	90	90-91	20	102/106	1
JX-M90B-MG	M90*1.5	66-77	90	90-91	20	102/106	1
JX-M100A-MG	M100*1.5	58-68	100	100-101	25	116/120	1
JX-M100B-MG	M100*1.5	66-77	100	100-101	25	116/120	1
