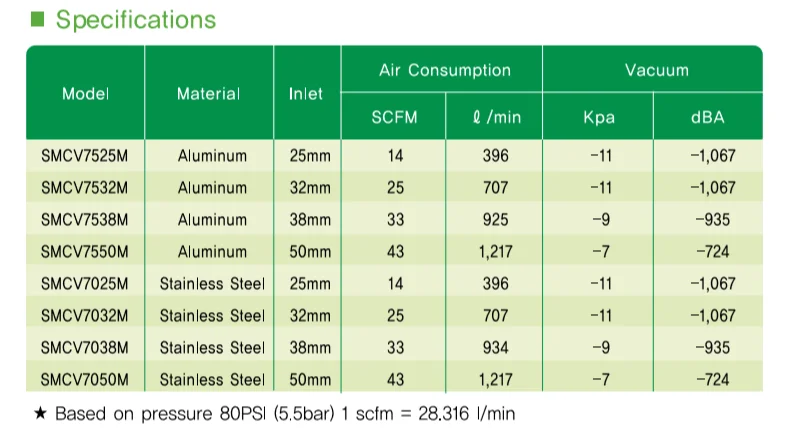

Payment Terms:	T/T;	Model Number:	SMCV-7525M;
Port:	INCHEON;	Supply Ability:	2000 Unit/Units per Month;
Material 2:	Stainless Steel;	Place of Origin:	South Korea;
Certification:	CE,IOSO9001;	Brand Name:	Seyang Mechatronics Co.,Ltd.;
Packaging Detail:	Package Type : Carton;	Type:	other;
After-sales Service Provided:	Online support;	Warranty:	More than 5 years;
Condition:	New;	Material 1:	Aluminum;
Applicable Industries:	Manufacturing Plant;	After-sales Service Provided:	No overseas service provided;

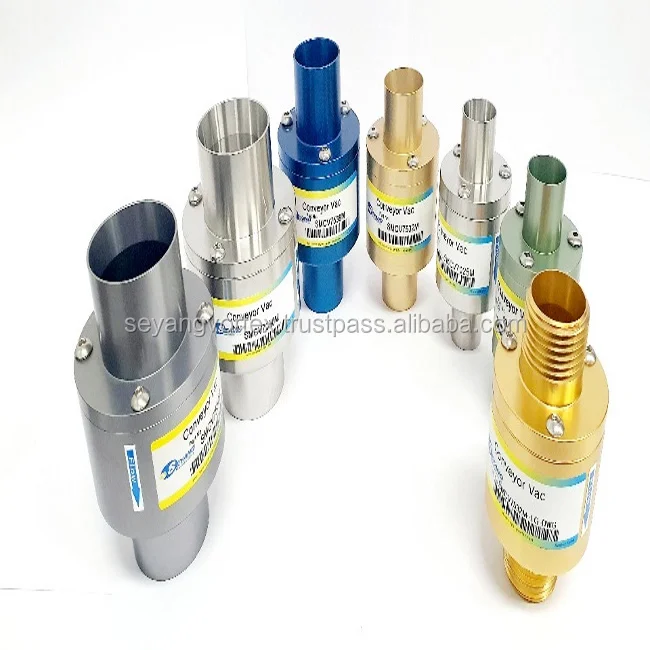

Vortex Air Conveyor Vac (Self Compensating)

What is the Seyang Vortex Air Conveyor Vac?

Seyang Vortex Conveyor Vac is a product that can transfer parts strongly and quickly within the range of compressed air (3~9.9Kgf/cm²). No electricity or moving parts are required. It is suitable for transferring parts in indusstrial sites. In addition, it can transfer a large quantity of parts because its internal duct is large compressed to the outer diameter of the apprerance. It is made out of aluminum or stainless steel and four types are arranged.
So, you can select approppriate specifications suitable for your industrial site.

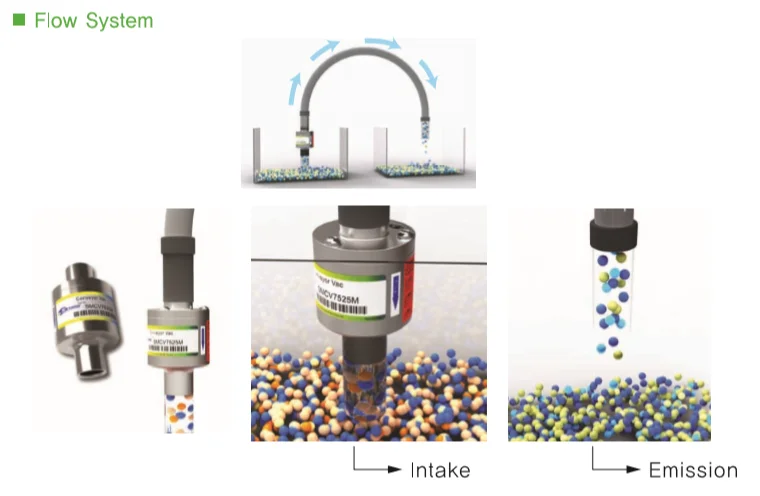

Seyang Vortex Air Conveyor Vac can transfer a latge quantity of products easily from a distance. As soon as compressed air of the proper pressure is input to the air inleet of Vortex Air Conveyor Vac.
Strong vacuum is generated and transfer operation is performed. This is trouble-free and safe. Only one thing to note is that you should not do intake and vacuum areas or regions where chemicals exit or explosion may occur when using Vortex Air Conveyor Vac. Vortex Air Conveyor Vac. Air Conveyor Vac is a trasnfer device fast, inexpensive and safe.

Product Description

Uses

Parts transfer
Plastic parts transfer
Cleaning of residues such as paper
Plastic resin of injuection products
Chips feed
Transfer of powder and sawdust
Transfer of dry food
Hopper filing
Removal of fiber dust
Cleaning around the air transfer conveyor line
Emission of smoke generated in shipyard and welding work

Benefits

Immediate ON/OFF

Return on investment (Eneragy sasving)

Maintenance-free
Meet OSHA requirements

CAUTION : The Seyang Mechatronics Vortex air conveyor vac is NOT recommended for us with volatile or hazardous liquids or chemicals since a state of vacuum amy lower the ignition point.

Packaging & Shipping

Selling unit : Single item

Package Type : Carton

Lead Time : 1-3 working ays depends on the order quantity

Send by DHL,TNT/FEDEX,UPS

FAQ

Q1. What kind of your company is it?

We’re the manufacturer integrated with R&D, production and sales.

Q2. How about your technical conditions and production capability?

Complete process documents and equipments, mass production.

Q3. What is the delivery time?

Delivery time depends on the order quantity, normally is 1-3 working days after 100% payment.

Q4. Do you have a warranty?

Yes, we gives a 10 Year Warranty against defect in workmanships and materials on all compressed air products from the date of purchase. Defective products must be returned freight paid for repair or replacement at our option.

This warranty applies under conditions of normal use,but does not apply to defects that result from intentional damage, negligence,unreasonable use or exposure

Q5. Can you supply customized product?

Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
