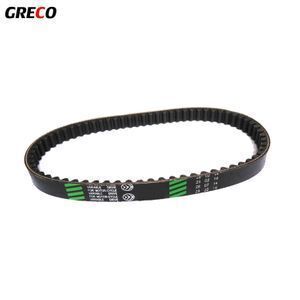

Normal quality CR material scooter drive belt 23100-KWN-901 pcx 125 belt for Honda pcx 125

Product details
Gross weight per batch:28 KG;Model:Honda pcx125;
Selling Units:Multiple of 200;Material:Rubber;
Quality:Normal quality;Warranty:5000 - 8000 km;
Package size per batch:65X38X25 cm;Key word:Honda pcx 125 belt;
Package Preview:https://sc02.alicdn.com/kf/HTB1JkwCoFkoBKNjSZFEq6zrEVXaZ.jpg_640x640.jpg;Part #:23100-KWN-901;
Brand Name:SANZHU;Delivery Detail:0 days after payment;
Place of Origin:Zhejiang China (Mainland);Color:Black;
Standard:ISO9001;Surface treatment:Polish;
Type:Drive Belt;Type:drive belt;
Product Discription

Advantage

1, High quality standard ATV/ CTV drive belt;
2, Quality with the requirements of standard ISO9001:2008;
3, Material: Rubber EPDM + Kevlar Aramid;
4, Oil & heat resistant, anti-aging, anti-ozone,chap-proof;
5, Each one taking force symmetrically;
6, With tooth on both side to have a stable transmission;
7, OEM replacement belt;
8, ODM accepted.

Type
Top Width, mm
Thickness, mm
Angle
VS 17
17
8
30
VS 18
18
9
30
VS 20
20
10
30
VS 22
22
11
30


Sample of Marks:


CVT belts are measured in 3 dimensions. For example, here is what the numbers of a 669-18-30 belt actually mean,


Drive belt      669        18       30
       Type          Length      Width     Angle

* 669 = The Pitch Length of the belt in millimeters  Lw

* 18 = The Width of the belt in millimeters  H

* 30 = The Angle of the teeth on the interior of the belt   θ


Here do not indicate the thickness of 669-18-30, because this is one common seen size, the thickness is 8 mm,  thickness ( limit deviation +/- 0.5 mm ) and needn't marked on belts


Recommend drive belt

669x18x30    ( 23100-GAK-9010 )

728x18x30   ( 23100-KEB7-9000 )

743x20x30   ( 23100-GY6-901 )

816x22x30   ( 23100-KWN-901 )

828x22.5x30  ( 23100-KM1-671 )

835x20x30   ( PL20705 )

842x20x30  ( PL20708 )

906x22.5x30  ( 23100-KGG-9110 )

Detail Image
Suit for

  FOR HONDA

  * Honda pcx 125cc

  * SH 125

  * LEAD 125


  * Part number:

  23100-KWN-901

Packing & Delivery

Packing
There're different packages for your reference
1, Nylon bags, each belt with a nylon bag, nylon bag specification different from belt to belt, and charged, Package MOQ: 1000 pcs
2, Paper sleeve, each belt with a individual paper sleeve. Your own designed individual paper sleeve will be charged, Package MOQ: 5000 pcs
3, Individual color box, each belt with a box. Your own designed color box will be charged, Package MOQ: 1000 pcs

Delivery
There're diiferent deliver ways for your reference:
1, By sea [ The most cheappest way for delivery ]
2, By railway + truck [ " one belt, one road " country, save time and money ]
3, By air [ Quick ]
4, By Express [ We have cooperated with many international express, and can deliver goods to most area in the world ]

Our Company

     Taizhou Greco Rubber Belt Co.,Ltd  is founded in 2007, has a high degree of automation production equipment, supported by matched advanced testing facilities, as well as excellent technical talents, for the production of high-quality products to provide a strong protection. Our company is strictly in accordance with ISO90001: 2000 international quality system standard to organize production. Since the market has been well received by customers.

    We are a professional drive belt manufacturer for cars and other machines, main products are: Automotive v belt, Classical wrapped v belt, V-ribbed belt, Auto timing belt, Motorcycle v belt, Variable speed belt, ATV drive belt, Industrial timing belt, Agricultural belt, Banded V belt ... We will be more energetic to meet new challenges, and constantly improve ourselves, welcome new old customer presence, dedicated to serve you for a better future!

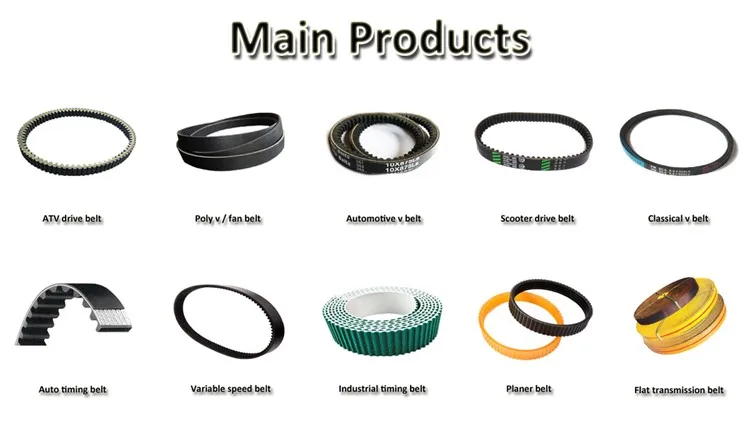

Main Products
Our main products are drive belts for Cars, Trucks, ATV / UTV, Snowmobile, Motorcycle/ scooters, golf kart, industrial machines, argricultural machines ...

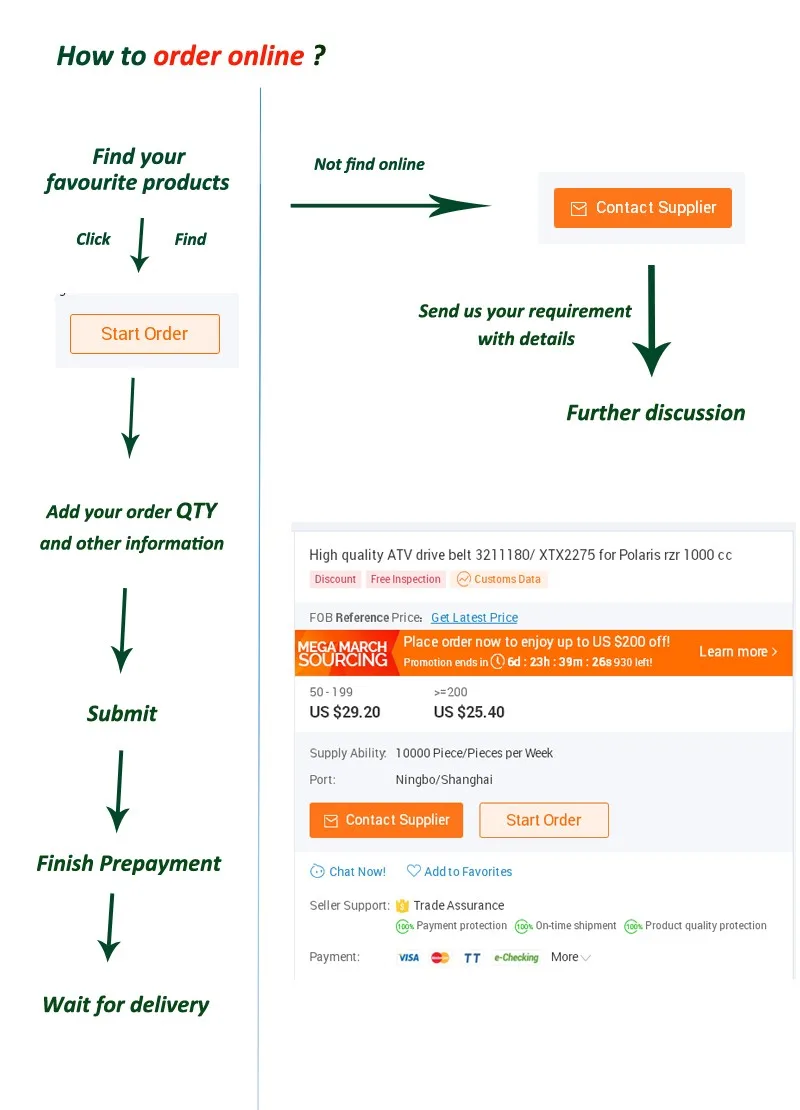

Buying Guide
FAQ

Q: Are you a trading company or manufacturer ?
A: We are a manufacturer and have our owned two factories.

Q: What's your main products?

A: Our main products are drive belts for cars, trucks, scooter, ATV, industrial machine, such  as:

    (1).  Automotive v belt, automotive fan belt / ribbed belt, auto timing belt

    (2). Scooter drive belt, cvt drive belt

    (3). ATV / UTV / Snowmobile drive belt

    (4). Industrial timing belt


Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.
or it is 15-35 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but the cost of freight is not included.

Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance.
Payment>=3000USD, 30% T/T in advance ,balance before shippment.


Q: Can you print our own logo or brand on my ordered belts?
A: Your own logo and brand is acceptable to be printed on your belts, but with the following advanced requirements:
(1) Your order is over 200 pcs ( for ATV drive belt only )
(2) Please send us an authorization to print your logo or brand on your belts;
(3) Please provide the design of your logo or brand

If you have other question, please feel free to contact us.
