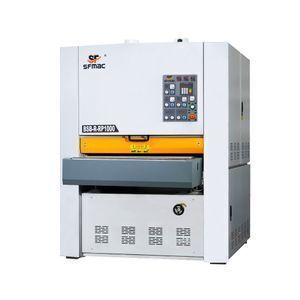

BSB-R-RP1000 Planing wood sanding brush machine

Product details
keywords:sanding brush machine;Warranty:one year;
Port:Qingdao;After-sales Service Provided:Video technical support;
Applicable Industries:Furniture factory, wood board factory;Packaging Detail:Stretch Film or Wooden Packing;
Payment Terms:L/C,D/A,D/P,T/T,Western Union;Sanding head:Two heads;
Sanding type:Planing wood sander;Brand Name:Sefe;
Sanding width:1000mm;After-sales Service Provided:Engineers available to service machinery overseas;
Place of Origin:Shandong China;Sanding thickness:3-110mm;
Supply Ability:2000 Set/Sets per Year sanding brush machine;Sanding length:≥450mm;
Condition:New;

BSB-R-RP1000 Planing wood sanding brush machine

Product Description



The series characters:



1. The sanding machine is used for thickness planing and fine sanding of various boards such as solid wood boards, block boards, chipboards, medium density fiber board finger boards, and composite materials.

2. Has two heads,one spiral tool.

3. Sanding width between 30mm to 1000mm.



Characters:

1. Max. working width is 1000mm

2. Has two sand heads,one spiral planer.

3. Feeding belt automatic entering

4. Protector for sanding belt breaking down and loosen

5. When power cuts, transmission bed descending automatically to protect the board safe.

6. Former sand frame is adjustable steel rollers, the fixed thick roller and sanding pad effectively combine

7. Elevating conveyor bed microcomputer controlled, small errors, fast and flexible

8. Light, electricity, gas integrated design and reliable operation

9. Advanced balancing testing fixed thick rolls, steel rolls and pulleys, makes the machine run more smoothly.



Type:BSB-R-RP1000

Technical specifications

Max.working width

30-1000mm

Working thickness

3-110mm

No.1 sanding belt speed

20m/s

No.2 sanding belt speed

18m/s

Sanding belt size

1020*2000mm

Conveyor   speed

4-16m/min

Total power

43.93kw

Working pressure

0.55MPA

Consumption of compressed air

6500m3/h

Overall dimisions

2000mm*1800mm*2100mm

Net weight

2900kg







Standard spart parts



Optional spart parts



Packaging & Shipping



Company Information




Company Information

Qingdao Sefe Trading Co., Ltd. is a subsidiary of Sefe Woodworking Machine Manufacturing Company.

With more than 30 years of experience in woodworking and metalworking, Sefe card sanding machines are well-known brands in the Chinese market, including wide belt sanding machine, paint sanding machine, water sanding machine, double-sided sanding Machine, planing wood sanding machine, heavy-duty inclined sanding machine and sanding machine production line.
