Name: | Pillow Packaging Machine; | Packaging Type: | Bags,Film,Foil; |
Automatic Grade: | Automatic; | Condition: | New; |
Place of Origin: | Zhejiang China; | Weight: | 500kg; |
Application: | Chemical,Commodity,Food,Machinery & Hardware,Medical,Textiles; | Packaging speed: | 5-220bag/minute; |
Film Width: | 260mm; | Driven Type: | Electric; |
Type: | Multi-Function Packaging Machine; | power: | 2.4KW; |
Certification: | CE,ISO9001-2015; | Dimension(L*W*H): | 4200mm*850mm*1420mm; |
Key Selling Points: | Remote Monitoring; | Port: | Ningbo/Shanghai; |
Film Roll Diameter: | ≤380mm; | Brand Name: | HUAZE; |
Function: | Sealing,Slitting,Wrapping; | Local Service Location: | None; |
Packaging film thickness: | 0.025-0.07mm; | After-sales Service Provided: | Field installation, commissioning and training,Online support; |
Supply Ability: | 50 Unit/Units per Month; | Packaging Material: | Plastic; |
Warranty: | 1 year; | After Warranty Service: | No service; |
Packaging Detail: | Export wooden case; | Payment Terms: | L/C,T/T; |
Voltage: | 220V/50HZ; | Applicable Industries: | Food & Beverage Factory; |
Showroom Location: | None; |
Application:

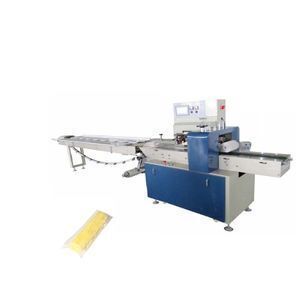

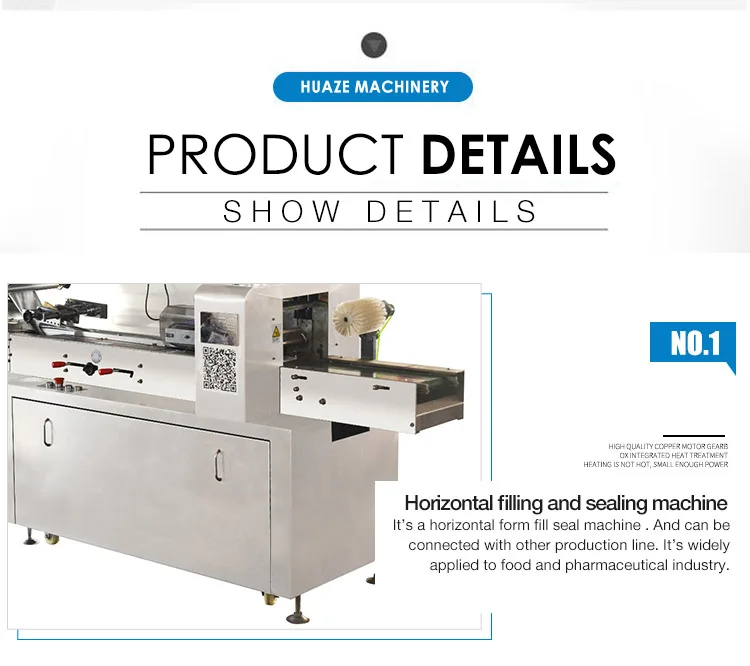

It’s a horizontal form fill seal machine.And can be connected with other production line.It’s widely applied to food and pharmaceutical industry.
Technical data: | ||

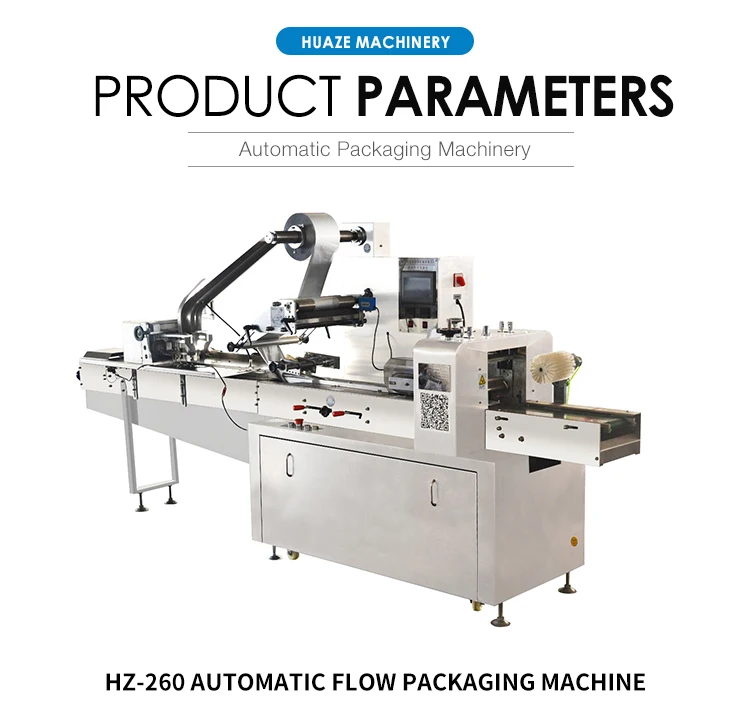

Model | HZ-260 | |
Film Width | 260mm | |
Packaging speed | 5-220bag/minute | |
Packaging film thickness | 0.025-0.07mm | |
Packaging size | Formed Bag Length | 60-230mm |
Formed Bag Width | 60-100mm | |
Product Height | 1-45mm | |
Power Requirements | 220V/50HZ | |
Film Roll Diameter | ≤380mm | |
power | 2.4KW | |
Outline size | 4200mm×850mm×1420mm | |
Weight | 500KG |
Features:
1.Dual frequency converter control,bag length can be set and cut precisely, saving time and film.
2.Imported touch screen,easy setting value of machine.
3.PLC controller system and touch screen display
4.Fault detecting, which is shown on the screen.
5.Import brand photoelectric sensor track color mark high sensitive.No need to set the length of bag,intelligent cutting length.
6. Side sealing by hob,much higher speed.
7.PID digital temperature controller for perfect wrapping.
8.The conveyor is stainless steel to meet food safety.
Type | HZ-260 | HZ-350 | HZ-450 | HZ-600 | HZ-800 |
Film roll width | 255mm | 350mm | 450mm | 600mm | 800mm |
Film roll diameter | 320mm | 320mm | 320mm | 320mm | 320mm |
Packaged length | 65-230mm | 60-220mm | —350mm | —500mm | 60--500 |
Packaged width | 30-100mm | 30-160mm | 30-200mm | 30-250mm | 30-250mm |
height | ≤45mm | ≤55mm | ≤65mm | ≤85mm | ≤100mm |
Production capacity | 40-230bag/min | 30-220bag/min | 30-220bag/min | 30-150bag/min | 30-150bag/min |
Electric supply | 220V,60HZ,1Φ | 220V,60HZ,1Φ | 220V,60HZ,1Φ | 220V,60HZ,1Φ | 220V,60HZ,1Φ |
Power | 2.4Kw | 2.5Kw | 2.6Kw | 2.8Kw | 3.0Kw |
Machine dimension(mm) | 4190*850*1420 | 4200*850*1520 | 4200*950*1520 | 4400*1100*1520 | 4400*1400*1520 |
Machine weight | 500KG | 550KG | 680KG | 750KG | 800KG |
Q1: ARE YOU THE MANUFACTURER OR TRADING COMPANY?
A1: We are the manufacturer, also we establish the trading company to make easy export.
Q2: HOW LONG IS THE DELIVERY TIME?
A2: It is depend on the quality. A few goods, we promise to send in 1-3days. Most have in stock. A big order, we promise to send in 7-15days.
Q3: HOW CAN WE GET THE SAMPLES? IS IT FREE?
A3:We provide free sample by express, but you need pay the express charge.
Q4: HOW ABOUT THE QUALITY?
A4: 100% Quality control in produce and before package.
Q5: HOW ABOUT THE AFTER-SALE SERVICE?
A5: Any feedback or comments are welcomed. We have engineers available to solve your application problems.
