Multifunctional hammer mill,maize hammer mill

Product details
Warranty:1 year;Capacity when use 8mm mesh:3000-4000kg/h;
Brand Name:furui;Specifications required:FR-1000;
Certification:CE/ISO;Material of the knives for Sawdust:45#Steel,Quenched;
Material knife of wood chips:H13 steel(4Cr5MoSiV1);Diameter of knife blade:600mm;
Place of Origin:Henan China;Power(W):75kw;
Packaging Detail:1.export standard wooden case packing 2.shockproof packing 3.Or as your specific demand;Port:tianjin/shanghai/shenzhen/beijing/qingdao;
Number of Knife for Sawdust:48pcs;Feeding size for Sawdust ( L x W ):1030*800mm;
After-sales Service Provided:Online support;Payment Terms:L/C,T/T,Western Union,MoneyGram,trade assurance;
Condition:New;Supply Ability:100 Set/Sets per Month;
Dimension(L*W*H):1.7*1.42*2.2m;Voltage:380v;
Weight:1300Kg;Power of the fan ( kw):11kw;
Number of Knife wood chips:4 pcs;Feeding size for wood chips ( L x W ):26*19cm;

Multifunctional  hammer mill,maize hammer mill

Product Description

Introduction of hammer mill

It is hammer-shape pulverizer and  ordinary wood chip machine perfect union, and together the two machine function, make the function of the machine more powerful and application wider.

 Wood crusher is ideal equipment for producing various types of wood products. Wood pellets orbiomass briquettes production line also needs crushing equipment.

 Wood crusher is specially designed to crush branches, tree roots,slab scraps and so on for further production.It occupies little room which makes it quite a popularity in small size biomass fuel plants.

Features of hammer mill

1. To ensure security, the feed inlet of this machine adopts self-suction design to avoid serious damage to operators.

2. Low investment and energy consumption,

3. High output

4. High-quality finished products

5. Easy to operate and miantain



Technical paramcrusher of hammer mill

Model

FR-500

FR-600

FR-800

FR-1000

FR-1300

FR-1500

Feeding Size(mm)

500*280

600*300

800*350

1000*450

1300*450

1500*450

Crushing chamber size(mm)

500*500

600*600

800*700

1000*800

1300*800

1500*800

No. of hammer(pcs)

30/20

40/30

50/30

66/48

72/54

90/72

Hammer size(mm)

180*60*10

180*60*10

230*60*10

230*60*10

230*60*10

230*60*10

Blade size(mm)

220*180

220*180

240*200

240*200

260*230

280*230

Blade size(mm)

120*70*10

120*70*10

120*70*10

150*80*10

230*120*12

230*120*12

Power(Kw)

22-30

30-37

37-45

55-75

75-90

90-110

Fan power(Kw)

without

without

7.5

11

15

15

Capacity (Kg/h)

500-800

800-1200

1500-2000

2000-3000

3000-4000

4000-6000

Thickness of screen and steel plate(mm)

6/8

6/10

6/10

8/12

8/12

8/12

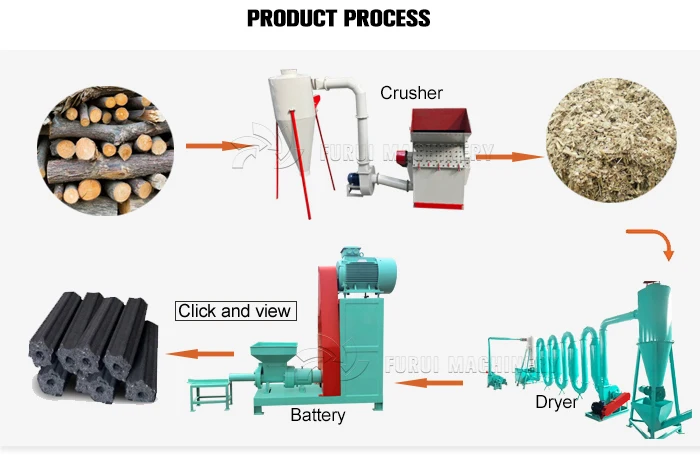

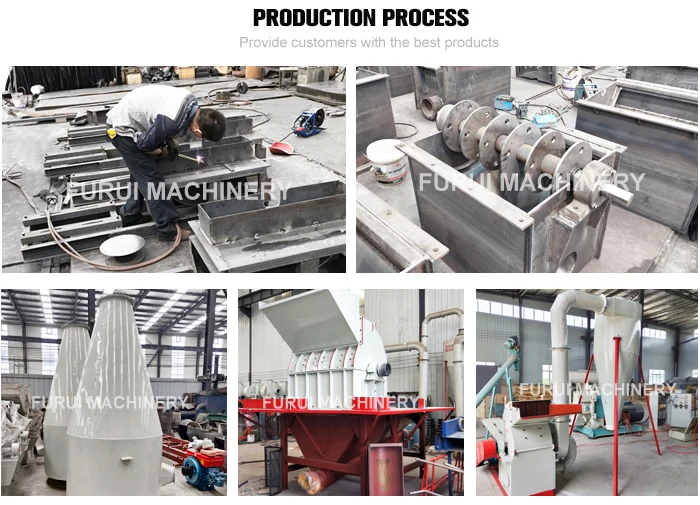

 Product  process  of  hammer mill



Our Services



1. After-sale service:

 We provide 12 months' warranty(After the warranty, we can provide life-long repair service).

2. Customization:

 We make customized diesel engine crusher plastic machine.

3. Design:

* Mechanical Design:  We make a good mechanical design to ensure they can operate without

any frictions, so that it can have a long service life.

* If you have some special scenes in your mind, you can draw it down and we can produce the your picturesAlso, we can make the movie scenes!

* Inspection: we have a strict Quality Inspection Department, and every machine would be tested before delivery.

We will serve you online in 24 hours!!! You  can contact with me if  you have any problems.
