Material: | Aluminum; | Rated current: | 16A; |
Package Preview: | https://sc01.alicdn.com/kf/HTB17vxJbkfb_uJkSmRyq6zWxVXaM.jpg_640x640.jpg; | Rated Voltage: | 220V -250V; |
Model Number: | WB-PDU-11, Israel DPU; | Single package size: | 52X5X5 cm; |
Package Type: | Standard Export Carton Box Of Israel Power Distribution Unit PDU; | Brand Name: | WebiT, Israel PDU; |
Certificate: | ISO9001:2015/CE/RoHS; | Single gross weight: | 1 KG; |
Place of Origin: | Zhejiang China; | Selling Units: | Single item; |
Product Name: | 6 Way Israel Power Distribution Unit; | Application: | Industrial; |
Color: | Black or White; |

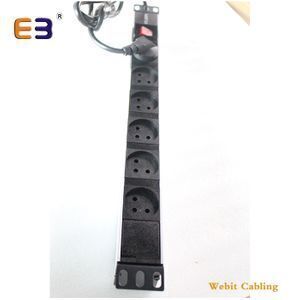

Aluminum Shell 6 Ways With Switch 19Inch Network Cabinets Application Israel Power Distribution Unit PDU
19" 1U/1.5U standard PDU socket or Vertical Mount
Aluminum-alloy shell,made from block burn PC,Guage:3G 14AWG+UL plug
According to customer request, we could add AC or DC display
Color: Black or silver
Children safty protect.
Curcuit breaker protection, and fused.
Rated current | 16A |
Rated load | 3500W |
Rated voltage | 250V |
Household voltage | 220V |
Number of sockets | 3 to 8 ways |
Size | 19" 1.5U\1U |
Shell material | Uninflammable PC module, Aluminium alloy shell |
Type of cable | 3G*1.5mm2*2m |
Type of plug | SI32 plug |
Degree of protection against electric shock | IP20 |
Provision for earthing | With earting contact |
Method of connecting the cable | Non-rewirable |
Type of connections | Welded-solder |
Degree of protection against electric shock | Normal protection |
Existence of shutters | With shutters |
Method of application-mounting | Portable type |
