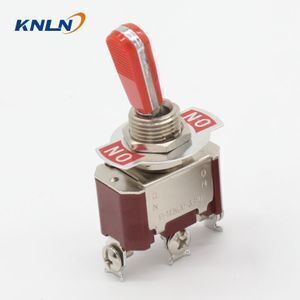

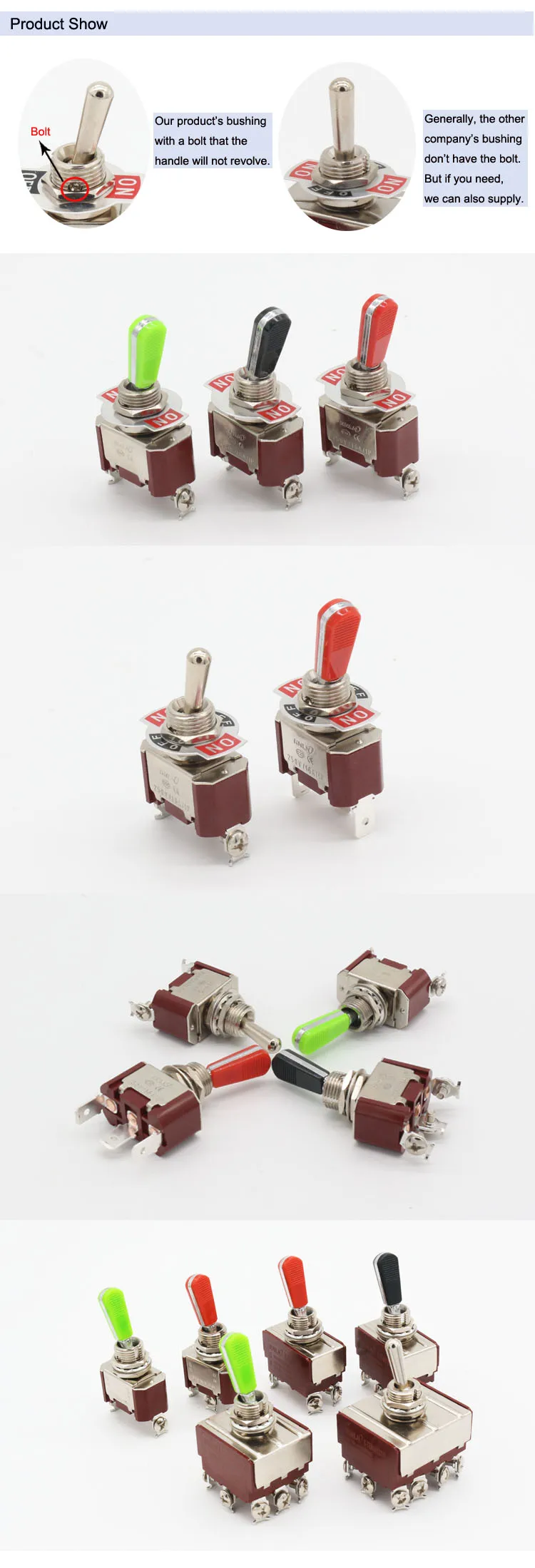

Factory Price Screw Terminal SPDT ON-OFF-ON Toggle Switch

Product details
Temperature Range:-25℃--+85℃;Certification:IECEE,CQC,CE;

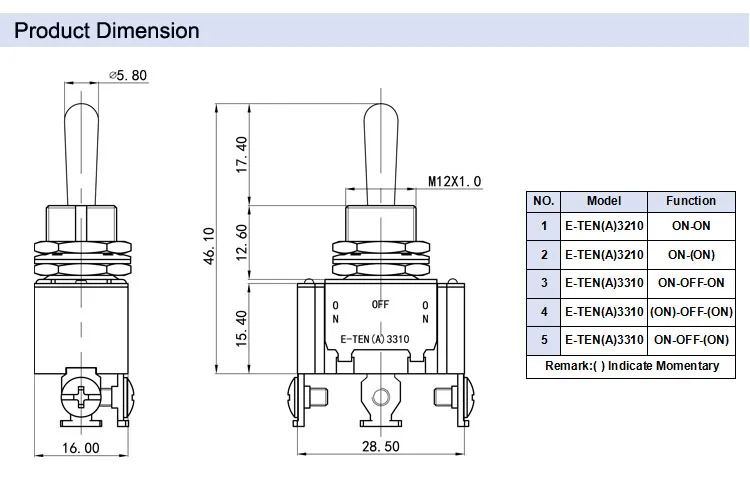

Max. Current:16A;Model Number:E-TEN(A)3210,3310;
Rated Load:16A 250VAC,20A 125VAC;Insulation Resistance:≥1000MΩ;
Port:Shanghai,Ningbo;Payment Terms:T/T;
Packaging Detail:10 pieces/Tray, 500 pieces/Carton;Brand Name:KNLN;
Material:Bakelite;Max. Voltage:250V;
Supply Ability:100000 Piece/Pieces per Month;Mounting Size:12.00mm;
Withstand Voltage:AC1500V/min;Place of Origin:China;
Contact Resistance:≤0.02Ω;Mechanical Life:50000;

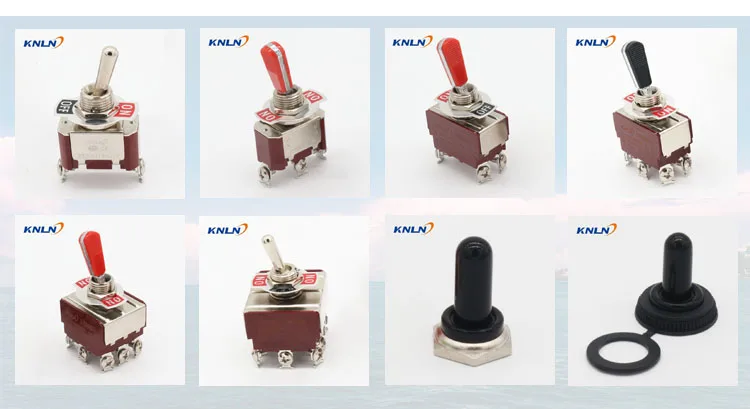

Other Products



High quality products with 16(10)A 250VAC// 20(12)A 125VAC  T125  5E4.



Please feel free to contact me, if you have any questions.



a
Rated Load:16A 250VAC,20A 125VACTemperature Range:-25℃--+85℃
Contact Resistance:≤0.02ΩInsulation Resistance:≥1000MΩ
Withstand Voltage:AC1500V/minOperating Force:2--15N
Life:50000 timesMaterial:Bakelite
