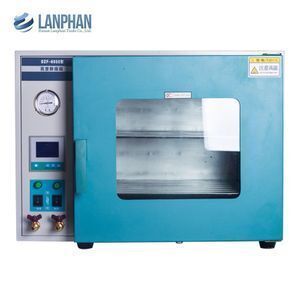

300 Degree 420l Blast Used Liter Ovens 50l 53l 90l Mini Lab Vacuum Drying Oven

Supplier: Henan Lanphan Technology Co., Ltd.
Region: Henan, China
Contact: Ms Mrs Liu
Price: $726.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Model Number:	DZF-6050;
Power:	1400W;	Temperature range:	RT+10-250 C;
Packaging Detail:	Enhanced plywood crate with plastic foam plate filled in;	Place of Origin:	Henan China;
Usage:	Vacuum drying;	Vacuum oven uniformity:	±1C;
Vacuum pump:	dual stage 4 CFM vacuum pump;	Supply Ability:	300 Set/Sets per Month;
Delivery Detail:	Shipped in 5 days after payment;	Classification:	Lab Drying Equipment;
Port:	Shanghai, Tianjin and Qingdao;	Brand Name:	Lanphan;
Temperature Resolution:	±0.1C;	Power Supply:	220V 50Hz;

Product Description

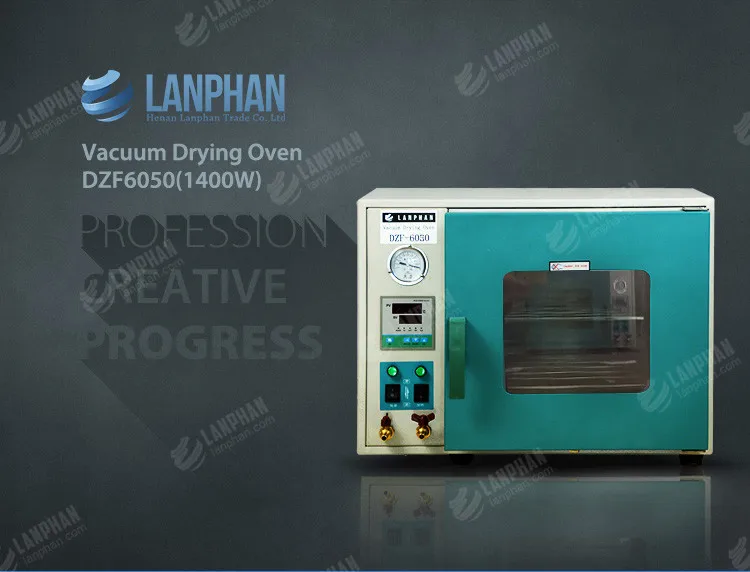

DZF6050 vacuum drying oven(1400W) is designed for drying heat sensitivity, easily decomposed and easily oxidizing material, especially for drying some complicated ingredient materials. Working room is made from stainless steel, its square shape has a wider using space than circular shape.

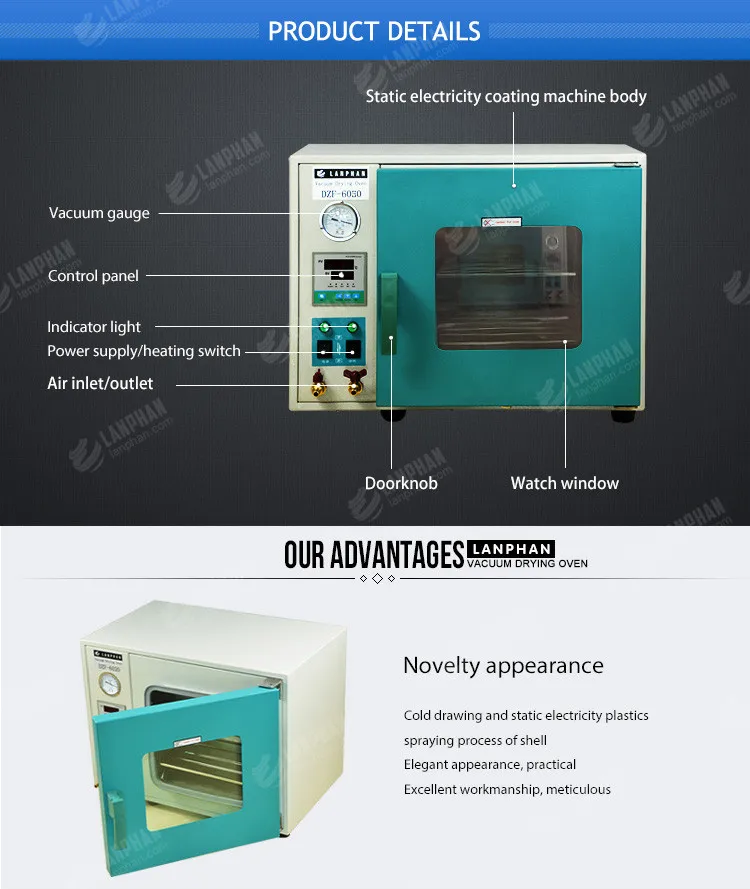

The built-in microcomputer processor make use of electric signal which is generated by feedback value on-off to control the heating element, through PID self-tuning(manual adjustment is available), amended parameter will automatic locking and the correct signal constants the temperature within setting range, after the temperature buffer is stable, temperature difference is lower than ±1℃ under normal pressure and vacuum pressure. Front panel's "vacuum meter" displays the vacuum degree of working room. Special purpose bleeder valve can pump air and do vacuum drying. Other switches and control device are also set in the front panel, which has the advantages of easy to operate, light weight, save electricity and high thermal efficiency, especially suitable for the drying process of a few sample.

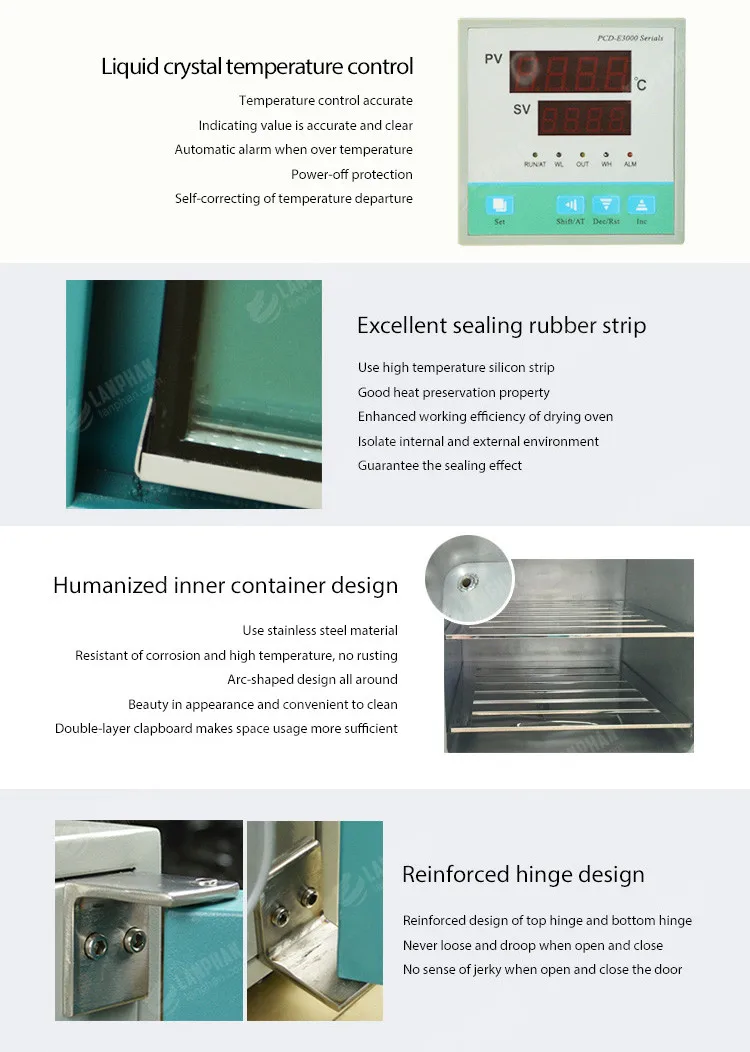

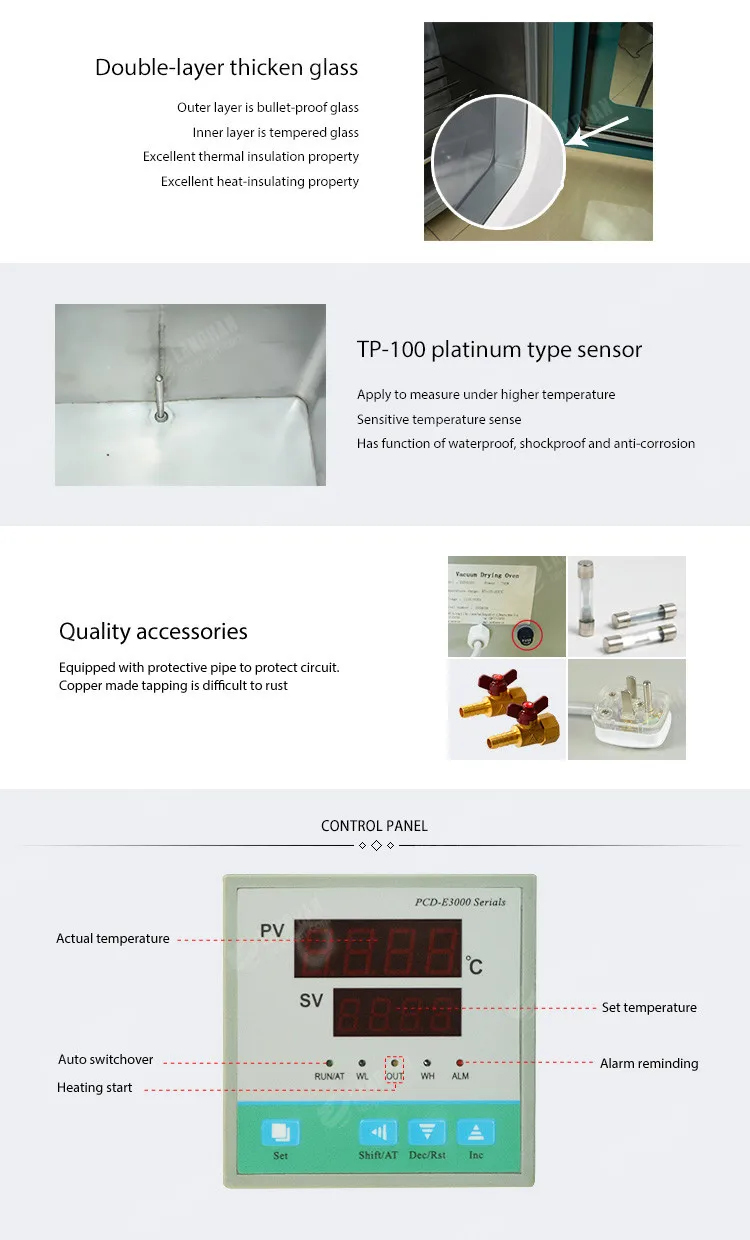

Product Features

1.DZF6050 vacuum drying oven(1400W)'s working room use high-quality steel plate or hygiene-grade stainless steel plate, strong anti-corrosion ability;

2.Double-layer bulletproof and temperature resistance tempered glass window makes you clear at a glance of your work;

3.Heat source use built-in S type anti-explosion resistance tube, safe and reliable, reduce 50% of the heating time, and the honeycomb type heat conduction window balance the heating of working space;

4.Microcomputer temperature control is accuracy and fast;

5.Touch key adjusted double-screen digital display panel makes it intuitional to set or read;

6.The close tightness degree of oven door is adjustable, compound silicon seal ring guarantee the high vacuum degree of the oven.

Spectifications

Specification

Working Voltage	220V 50Hz
Temperature Control Range	RT+10~200℃/RT+10~250℃
Constant Temperature Fluctuation	±1.0℃
Vacuum Degree	0.098Mpa
Temperature of Working Environment	+5~40℃
Input Power	1400W
Liner Size(mm)W×D×H	410×400×340
Shape Size(mm)W×D×H	710×580×530
Loading Bracket (Standard Equipped)	2
Liner Material	304 Stainless Steel(1Cr~18Ni9Ti)
Timing Range	1~9999min

Product Details

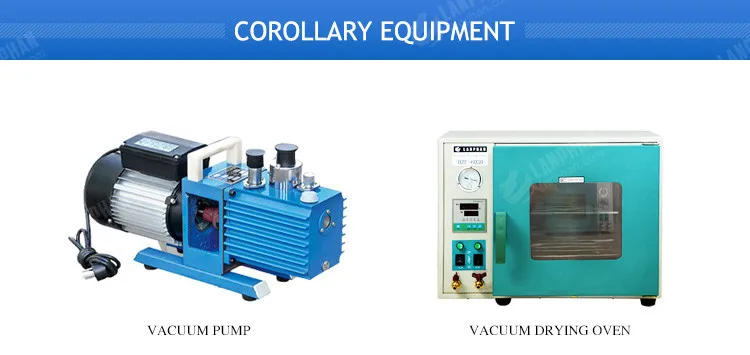

Vacuum Pump

If you order full set of vacuum pump and vacuum drying oven, we would give you a favorable industrial oven price.

Industrial and mining enterprises, colleges and universities, biological products, food processing, agricultural science, chemical pharmacy, medical units and powder drying and baking under vacuum condition in all kinds of laboratories. Especially suitable for the drying of heat sensitivity, easily decompose, easily oxidation material and complicated ingredient materials.

Our Services

1. 1 year warranty service and all life maintenance, free change for non-human damaged parts within a year;

2.Change of artificially damaged parts within warranty service period charges according to purchase(process) price;

3.Continue providing excellent technical service beyond the warranty service period, and customer enjoy a privilege of buying fittings at a lower price;

4.Remote control technical consult, install DVD for free.

5.Technical engineers are available for oversea training.

FAQ

1.What's the minimum order quantity?

One set at present.

2.What kind of payment term do you accept?

Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C.The exactly term with be discussed during the deal.

3.How will you delivery these goods?

It will be decided according to your quantity. Normally we will choose International Express, Air and sea.

4.How will package glass equipment?

We package these glass equipment in good and Non fumigation standard wooden case.

5.Do you have any discount?

Normally if you order full set of vacuum pump and vacuum drying oven, we would give you a favorable industrial drying oven price.

Advantages

The new generation vacuum drying oven of our company gathering many years of successful experience on oven heating, it breaks out the traditional technology and finds out a perfect heat conduction way. Since we are factory direct selling, our company will offer you a competitive price of industrial drying oven.

1.Temperature control use digital indicator which is easy to handle;

2.Continuously P.I.D. of temperature control is accuracy;

3.Pointer type vacuum meter is easy to read;

4.Cleanliness stainless steel working room;

5.Shell is made from high-quality cold rolled sheet steel and surface spraying plastics, durable in use;

6.Sealing strip of door use heat-resistance silicone rubber, which is environmental-friendly;

7.Has the function of over temperature alarm.

8.Drying oven manufacturer, factory direct selling, cheapest industrial oven price.
