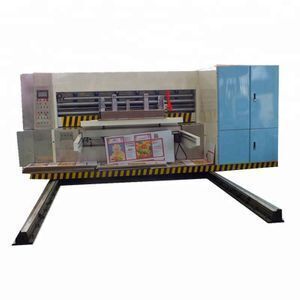

Corrugated Carton Automatic Printer Slotter Rotary Die Cutter Machine

Product details
Package Type:Wrapped with film;Single gross weight:3,000 KG;
Printing material:Steel;Type:carton paper making machine;
Application:Printing cardboards;Warranty:1 Year;
Package Preview:https://sc02.alicdn.com/kf/HTB1GcnRc56guuRjy0Fmq6y0DXXaa.jpg_640x640.jpg;Color:1-5 Color;
Single package size:400X320X200 cm;Work speed:150PCS/min;
Voltage:220V/380V/440V;After-sales Service Provided:Engineers available to service machinery overseas;
Gear:High precision grinding;Selling Units:Single item;



High speed automatic printing slotting die-cutting machine





Main Features:

1.Automatic computerized machine ,easy operation.

2.Color touch screen,save 999 groups orders.Automatically order's input, inquiry, delete and zero-clearing.The automatic / manual adjustment of phase, management of the parameters, up and down the plate, auto/semi-auto inking, automatic display of production and speed, and setting of the quantities.

3.All the drive rollers adopted high quality steel materials, hard chromium plating and the surface treated by lapping finish. The drive gears adopt high quality alloy steel, after heat treatment and lapping finish.

4.Interval of all the rollers is adjusted by high precise worm box. With three disk handle seat, convenient and swift.

5.Motorized electric numerical adjust the axial and vertical movement of the knife seat and height of the carton.

6.Speed difference compensation system is equipped with Die cutting unit, Axially conjunct moving of the cam type soft roller is 40mm, uniform wear and tear, raise the occupation of the gum cover, save the cost.

7.Suitable for 3/5/7 layer corrugated paperboard, as well E flute paperboard.

8.Main engine controlled by frequency converter, can save electricity for 30%.



Technical parameters:



Parameter

Unit

Model

SMYS-GZ

420-2600

SMYS-GZ

420-3000

SMYS-GZ

480-2800

SMYS-GZ

480-3200

Inner width

mm

2600

3000

2800

3200

Max. Paper size

mm

1300x2300

1300x2700

1500x2600

1500x3000

Max. Printing size

Mm

1250x2200

1250x2600

1500x2400

1500x2800

Interval feeding size

mm

1400x2300

1400x2700

1650x2600

1650x3000

Max. speed

Pcs /min

150

150

Economic speed

Pcs /min

0-120

0-100

Topping precision

mm

+-0.5

+-0.5

Standard plate thickness

mm

7.2

7.2

Cardboard thickness

mm

2-11

2-11

Min. slotting interval

mm

165x165x165x165

165x165x165x165

Max. slotting depth

mm

320

450





Exhibition photos



Shipping



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A:30-60Days

Q: What is your terms of payment ?

A:TT/LC
    If you have other questions, pls feel free to contact us as below:



   Tel:+86 188 3270 5582

   Whatsapp:+86 188 3270 5582

   Facebook:Charly Ma

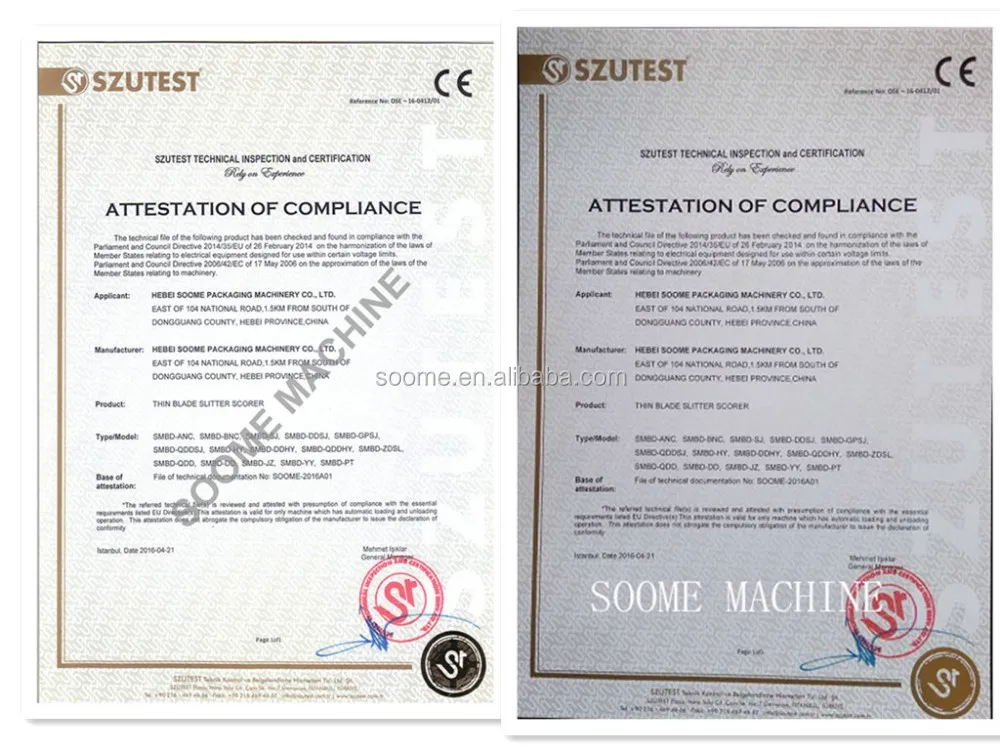

certification

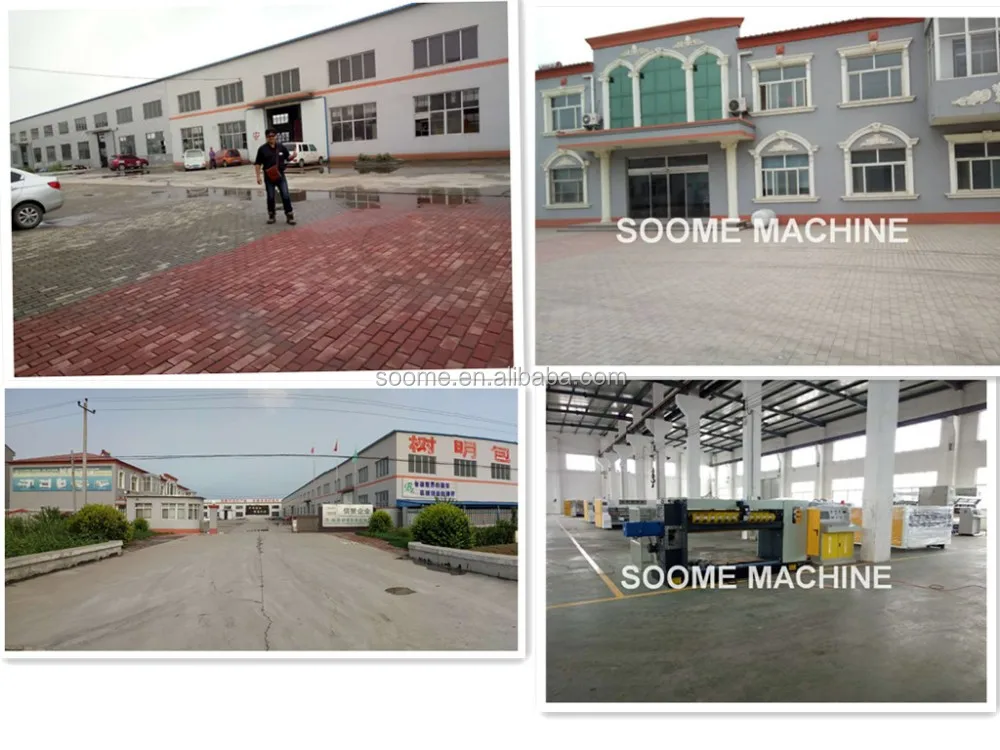

Foctory photos
