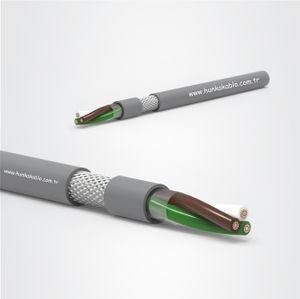

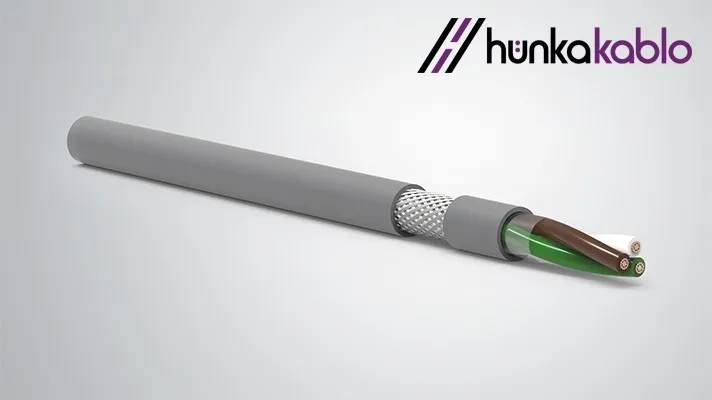

LIYCY Shilded Signal and Control Cable

Supplier: HUNDUR KABLO ELEKTRIK SANAYI VE TICARET LIMITED SIRKETI
Region: China
Price: $0.15 / >=3000 meters
Min. Order: 3000 meters

Click here to contact

Product details

Supply Ability:	400000 Meter/Meters per Month;	Port:	Istanbul Ports;
Application:	Construction;	Brand Name:	hunkakablo;
Conductor Material:	Copper;	Insulation:	PVC;
Model Number:	LIYCY;	Conductor:	Bare Copper;
Packaging Detail:	Standart Packing Types 100yards 100m 305m 500m 1000m;	Insulation Material:	PVC;
Place of Origin:	Turkey;	Payment Terms:	L/C,T/T,30% Advance + Balance Before Shipment;
Type:	Signal and Control Cable;	Jacket:	PVC;

Signal Cables

DESCRIPTION

- In places where electro-magnetic interference and influence exists
- Instrumentation and Control Engineering
- Industrial Electronics
- Computers and Office Machines
- Indoor Communication Systems
- Indoor Sound Systems
- Security Systems

With its flexible design it can easily be used in narrow spaces.
- These cables are not suitable for outdoor use.

LIYCY-OZ: Without green/yellow earthing core.
LIYCY-JZ: With green/yellow earthing core.

CABLE CONSTRUCTION

Conductor	Insulaton	Colour Code	Stranding
Electrolytic Copper	PVC Compound	DIN 47100	In layers of optimum pitch
Wrapping	Screen	Sheath	Sheath Colour
PES Tape	Tinned Copper Braid	PVC Compound	RAL 7001 Grey

Conductor Resistance		Insulation Resistance	Mutual Capacity		Impedance	Current Carrying Capacity		Operating Voltage
mm²	Ω/km	MΩxkm 0,22mm²/0,34mm²= 200 ≥ 0,50mm² = 20	mm²	pf/m	78Ω			0,22 ve 0,34 mm² = 250 V ≥ 0,50 mm² = 300/500 V
0,22	79		0,22	110		0,22	2,50
0,34	56		0,34	110		0,34	4,50
0,50	39		0,50	120		0,50	6,00
0,75	26		0,75	120		0,75	13,0
1,00	19,5		1,00	130		1,00	16,0
1,50	13,3		1,50	140		1,50	20,0
2,50	7,98		2,50	150		2,50	25,0

Test Voltage	Bending Radius	Temperature Range	Flame Retardant Test

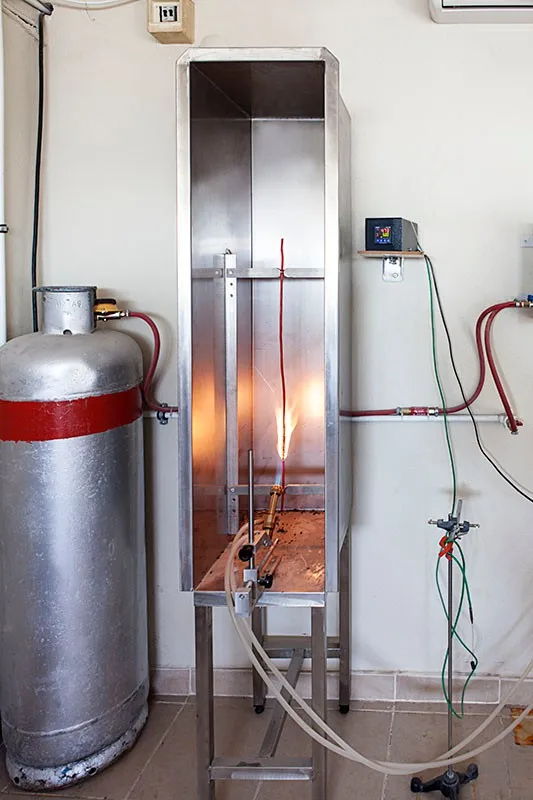

0,22 ve 0,34 mm² = 1200 V ≥ 0,50 mm² = 2000 V	10x Cable Ø	-30ºC+70ºC	IEC 60332-1-2 DIN EN 60332-1-2 EN 60332-1-2

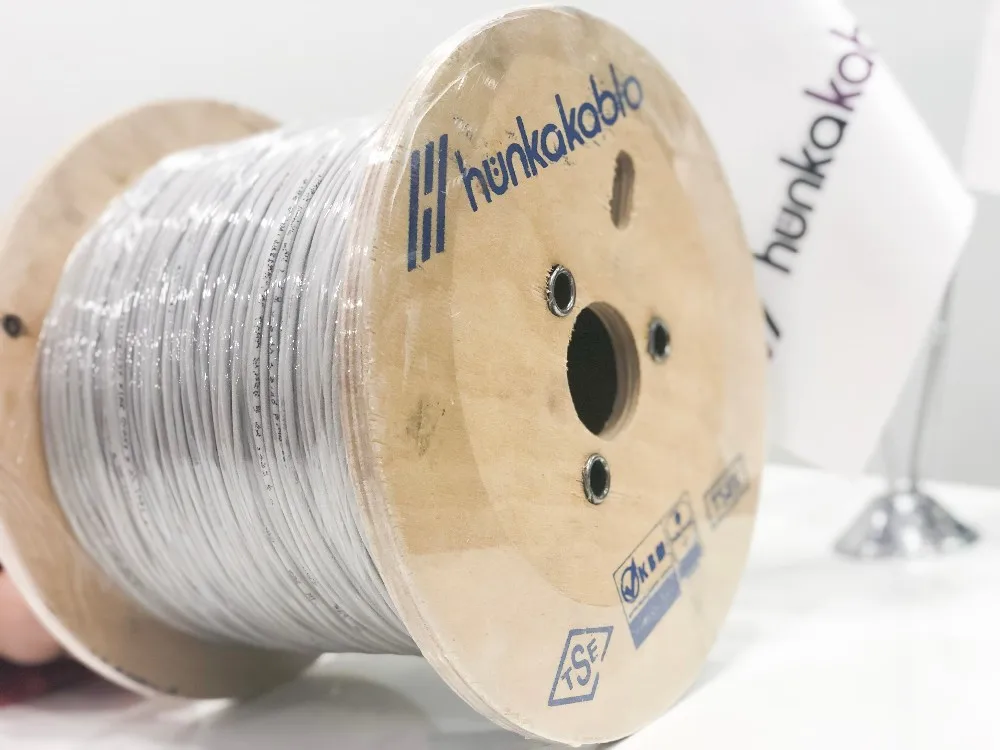

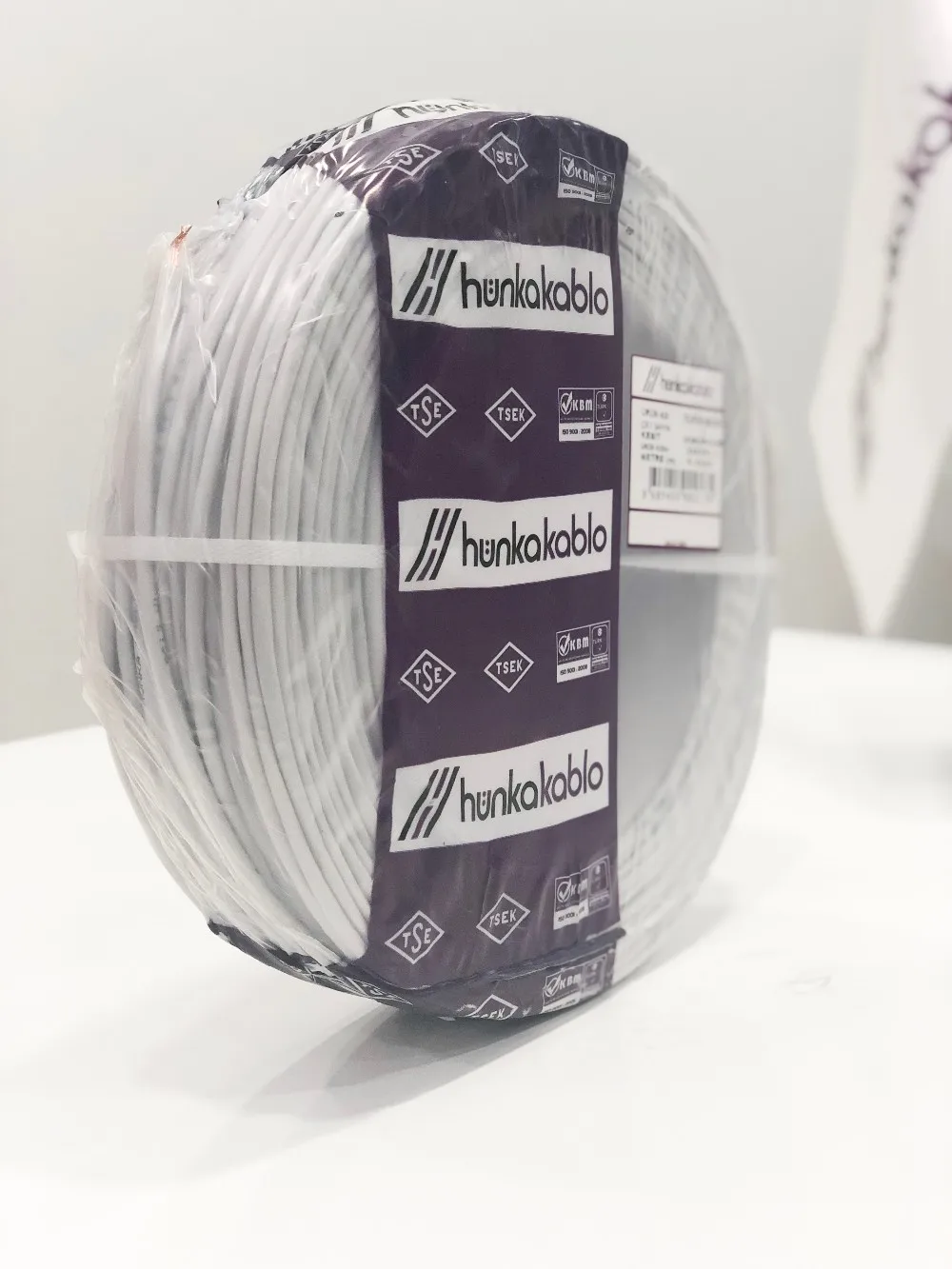

PACKING DETAILS

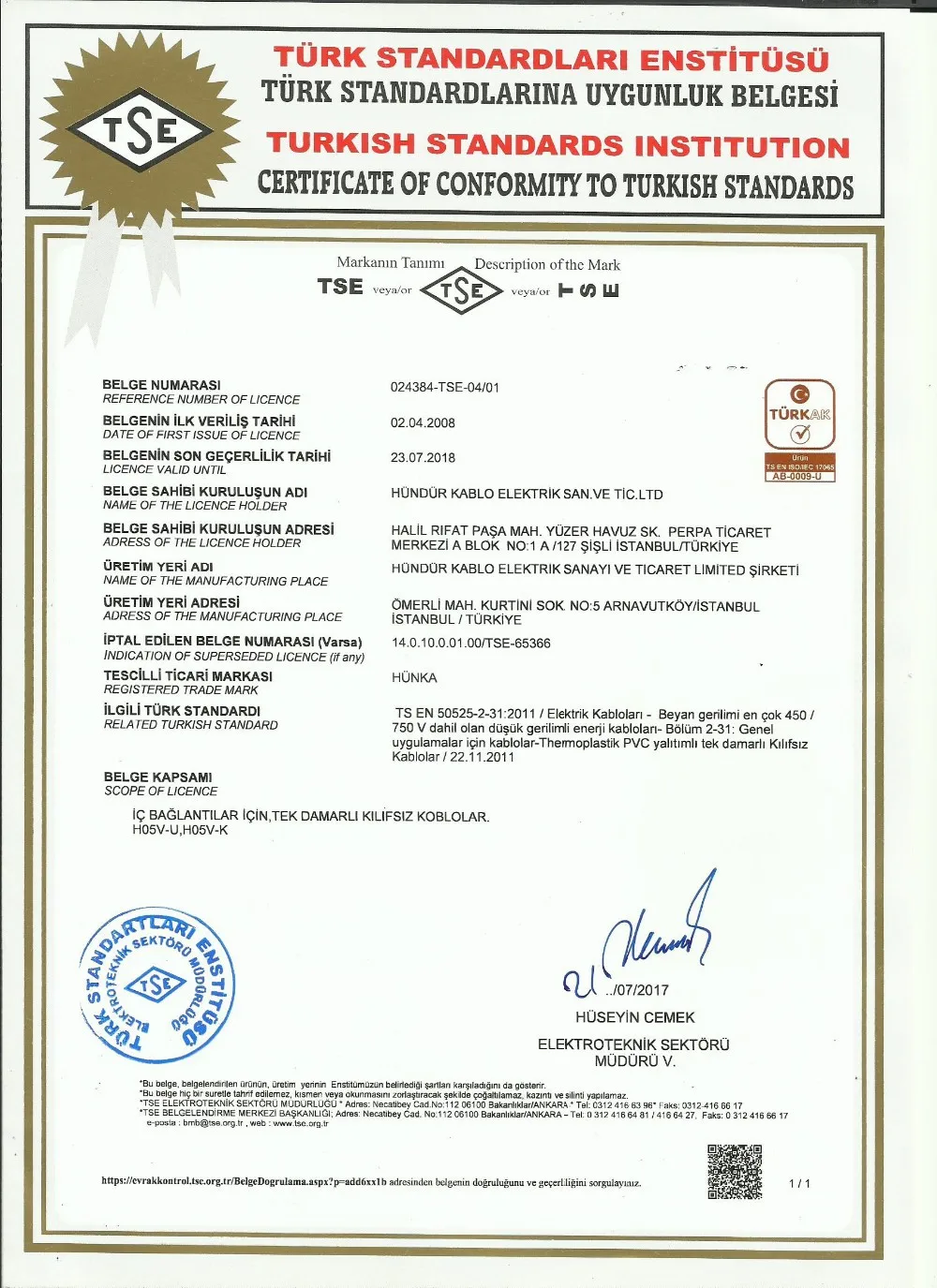

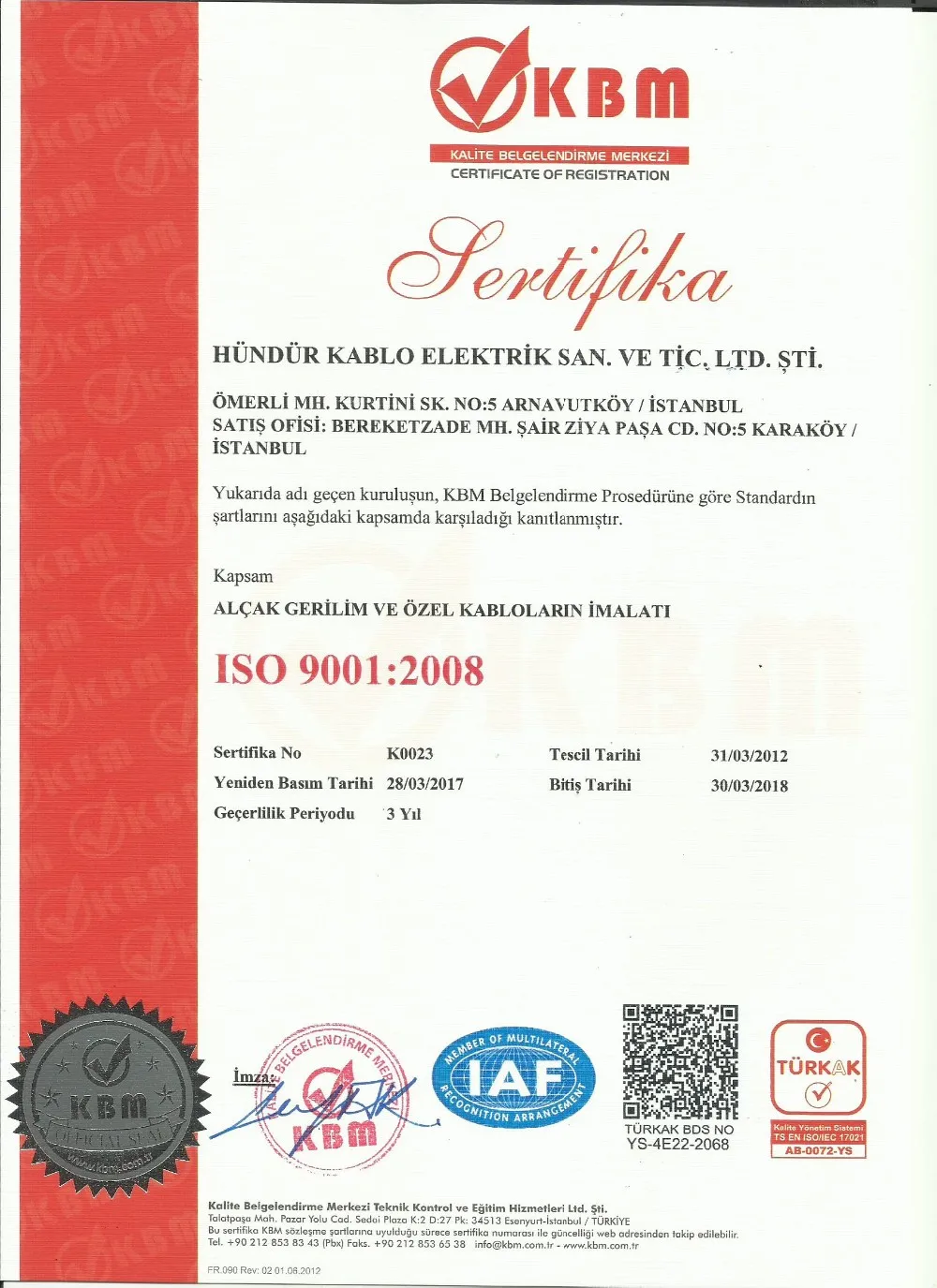

CERTIFICATIONS

WHY CHOOSE US

About Us

HÜNKA KABLO is enthusiastic about sharing its accumulation of knowledge of 30 years in the sector and its experiences and knowledges exceeding ten years during its manifacture with you our respectable customers.
