Port: | Qingdao,Tianjin,Shanghai,Ningbo,etc; | Payment Terms: | L/C,T/T,Western Union,MoneyGram; |
Application: | Automotive Industry,General Industry,Healthcare,Heavy Industry,Oil & Gas,Mining,Water Treatment; | Washers type: | Metric Plain washers; |
Packaging Detail: | 1.Self-styled pocket+carton+wooden pallet or case 2.According to customer's requirements.; | Supply Ability: | 5000000 Piece/Pieces per Month; |

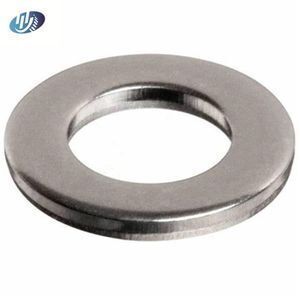

DIN125 stainless steel 304 316 oem design metal gasket flat washer shims flat washers
Metric DIN 125 Flat Washers are standard metric flat washers – a circular metal disc with a central hole. Typically used to distribute the load over a larger bearing surface either positioned below the head of a bolt or below the nut. This even distribution over a larger area reduces the chance of damaging the bearing surface. A washer could also be used if the outer diameter of a mating nut is smaller than the hole through which the screw is placed.
Product Description
Product name | DIN125 stainless steel 304 316 oem design metal gasket flat washer shims flat washers |
Material | Stainless steel 304 316 |
Size | M1.6-M64 |
Other size | Customized |
Measurement system | Metric UNF |
Surface treatment | Plain washing white |
Thread | Fine |
Shapes | semicircle, square right Angle, triangle, oblique triangle |
Brand name | Mingyang |
End treatment | Chamfer |
Thread direction | Right |
Place oforigin | Shandong,China(mainland) |
Used | construction and installation, mechanical parts connection, vehicles and ships, Bridges, tunnels and railways |

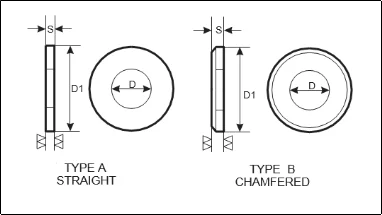

NOMINAL DAIMETRE | D | D1 | S | WEIGHT kg/1000pcs |
M3 | 3.2 | 7 | 0.5 | 0.12 |
M4 | 4.3 | 9 | 0.8 | 0.3 |
M5 | 5.3 | 10 | 1 | 0.44 |
M6 | 6.4 | 12.5 | 1.5 | 1.14 |
M7 | 7.4 | 14 | 1.5 | 1.39 |
M8 | 8.4 | 17 | 1.5 | 2.14 |
M10 | 10.5 | 21 | 2 | 4.08 |
M12 | 13 | 24 | 2.5 | 6.27 |
M14 | 15 | 28 | 2.5 | 8.6 |
M16 | 17 | 30 | 3 | 11.3 |
M18 | 19 | 34 | 3 | 14.7 |
M20 | 21 | 37 | 3 | 17.2 |
M22 | 23 | 39 | 3 | 18.4 |
M24 | 25 | 44 | 4 | 32.3 |
M27 | 28 | 50 | 4 | 42.8 |
M30 | 31 | 56 | 4 | 53.6 |
M33 | 34 | 60 | 5 | 75.4 |
M36 | 37 | 66 | 5 | 92 |
M39 | 40 | 72 | 6 | 133 |
M42 | 43 | 78 | 7 | 183 |
M45 | 46 | 85 | 7 | 220 |
M48 | 50 | 92 | 8 | 294 |
M52 | 54 | 98 | 8 | 330 |
M56 | 58 | 105 | 9 | 425 |
M58 | 60 | 110 | 9 | 471 |
M64 | 65 | 115 | 9 | 492 |

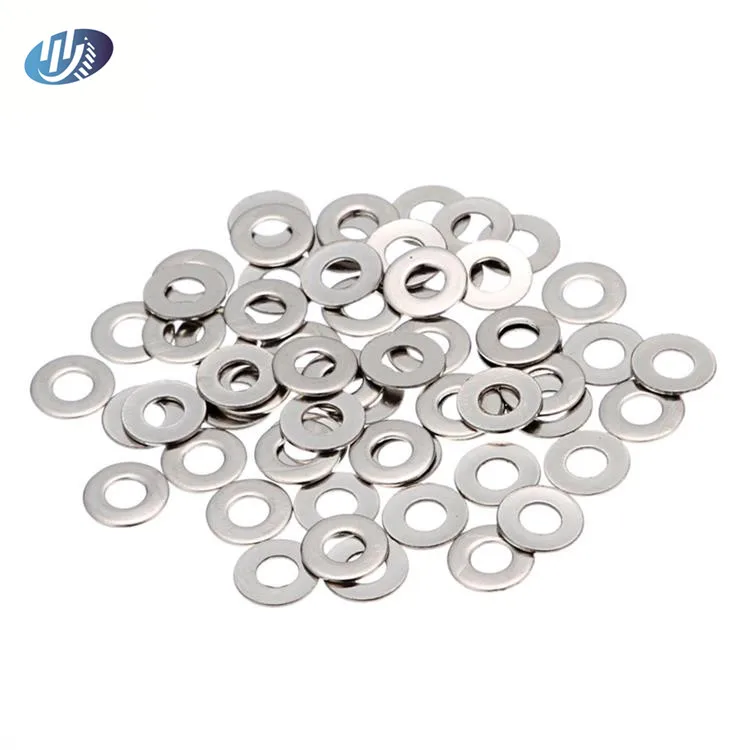

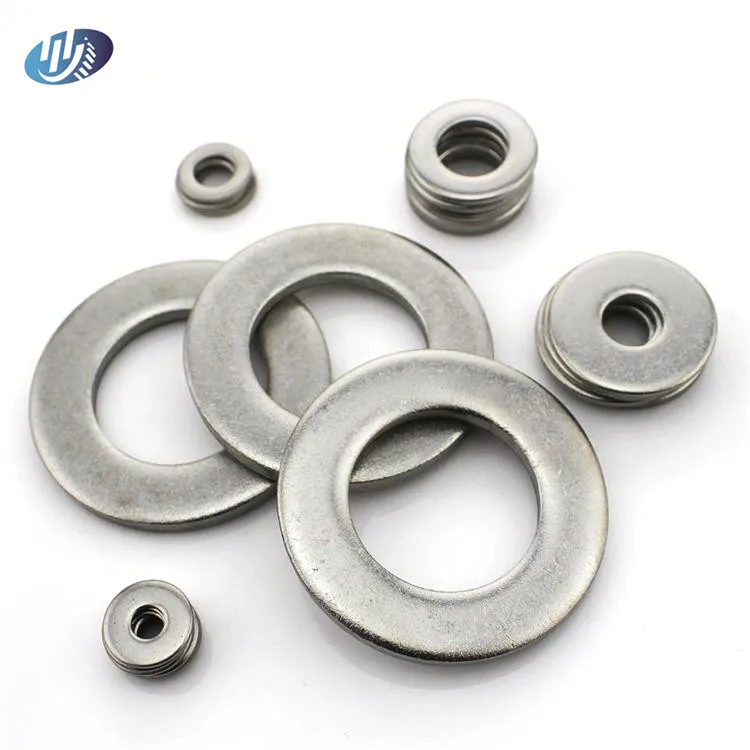

Detail Image
1.Warranty period
Warranty period is 12 months,if material and quality have any problem,we are ready to solve immediately.
2.High quality
Have the material report form and professional equipment and personnel to ensure the high quality of products
3.Coustmized
According to customer's drawings or requirements to produce products.
4.Delivery fast
We have many facilities to ensure fast delivery of customer products.
Since Dongying Mingyang Precision Metal Co.,Ltd was founded in 2017, it has rapidly and gradually developed and earned a solid reputation with the clients.forged solid/hollow grinding stainless steel ball for bearing
For immediate response to their needs, special service, cost-effective products and experienced personnel.
Trying to consider the clients as the first.mainly produces standard fasteners, non-standard fasteners, Marine hardware, surfboard hardware, building hardware and plastic products.Now we produce more than 20,000 kinds of products,such as steel balls.forged solid/hollow grinding stainless steel ball for bearing
We assure that we are the source of the highest quality and have the largest amount in stock of them in China.
Our workshop
Our warehouse
Q:What is your main products?
A:Standard fasteners,non-standard fasteners,Marine hardware ,building hardware, surfboard hardware,plastic products.etc.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
