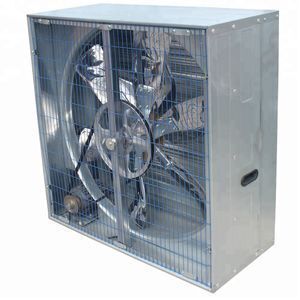

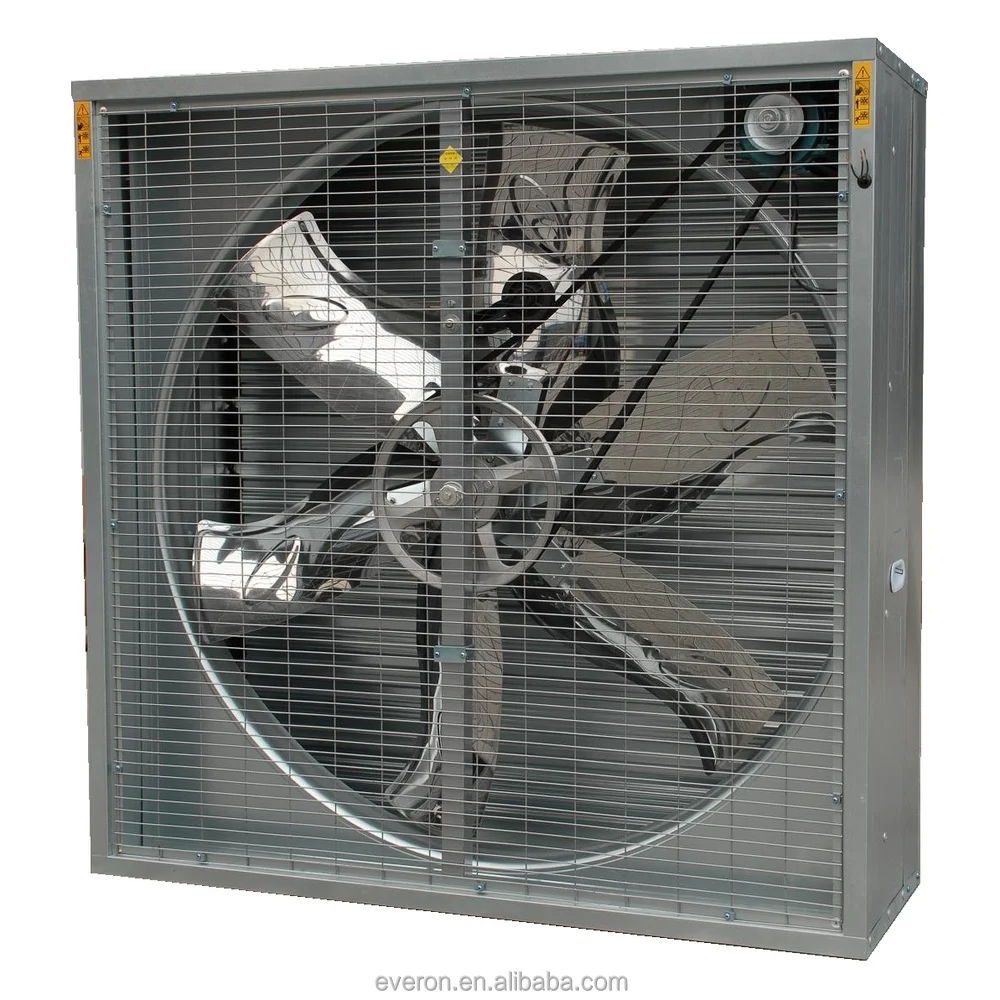

50inch air flow 44000m3/h greenhouse exhaust fan/centrifugal exhaust fan for poultry farm and greenhouse

Supplier: Shandong Everon Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Tony Liu
Price: $100.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Blade Material:	Stainless Steel;	Type:	Axial Flow Fan;
Bearing:	Maintenance-free Ball Bearings;	Motor:	Siemens/Laoyite IP55 Insulation Class;
Brand Name:	EO;	Power:	1100W;
After-sales Service Provided:	Engineers available to service machinery overseas;	Certification:	CCC,CE;
Port:	QingDao;	Payment Terms:	L/C,T/T;
Electric Current Type:	AC;	Voltage:	380V/220V/110V/400V;
Supply Ability:	600 Piece/Pieces per Week;	Air Flow:	44000CBM;
Packaging Detail:	PAPER CARTON;	Mounting:	Wall Fan;
Blades:	6pcs;	Material:	Hot Galvanized Sheet;
Weight:	68kg;	Usage:	Poultry farm/Greenhouse;
Rated voltage:	380-450vac;	Place of Origin:	Shandong China;
Speed:	7-15m/s;	Air Volume:	44000m3/h;

Greenhouse Exhaust Fan/centrifugal fan

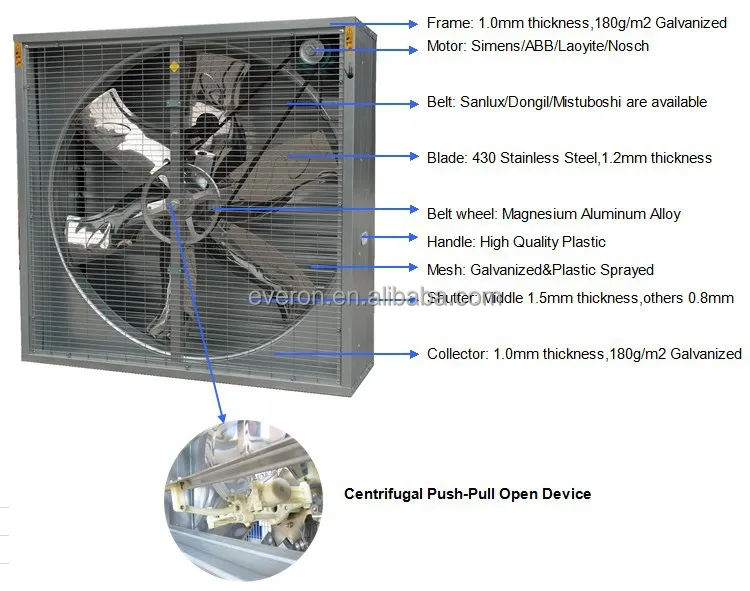

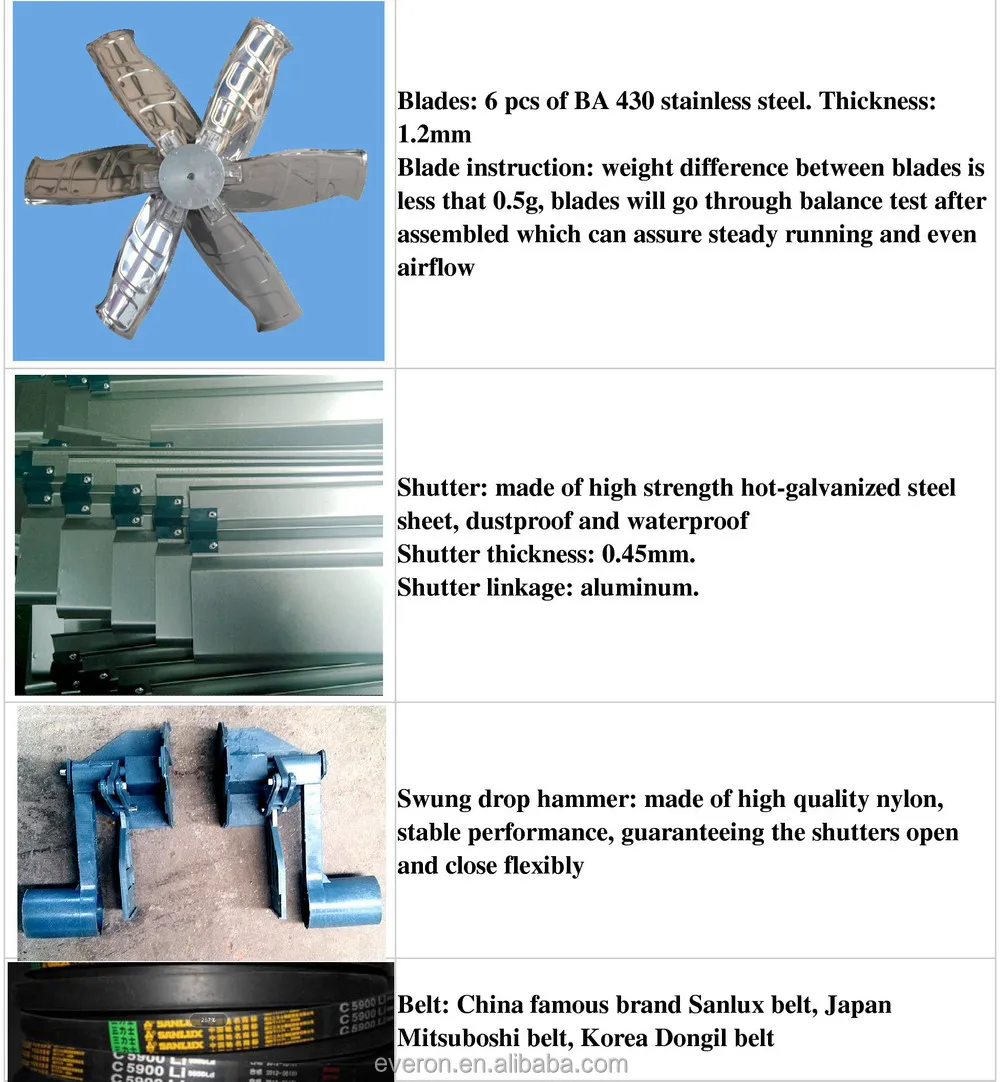

Details:

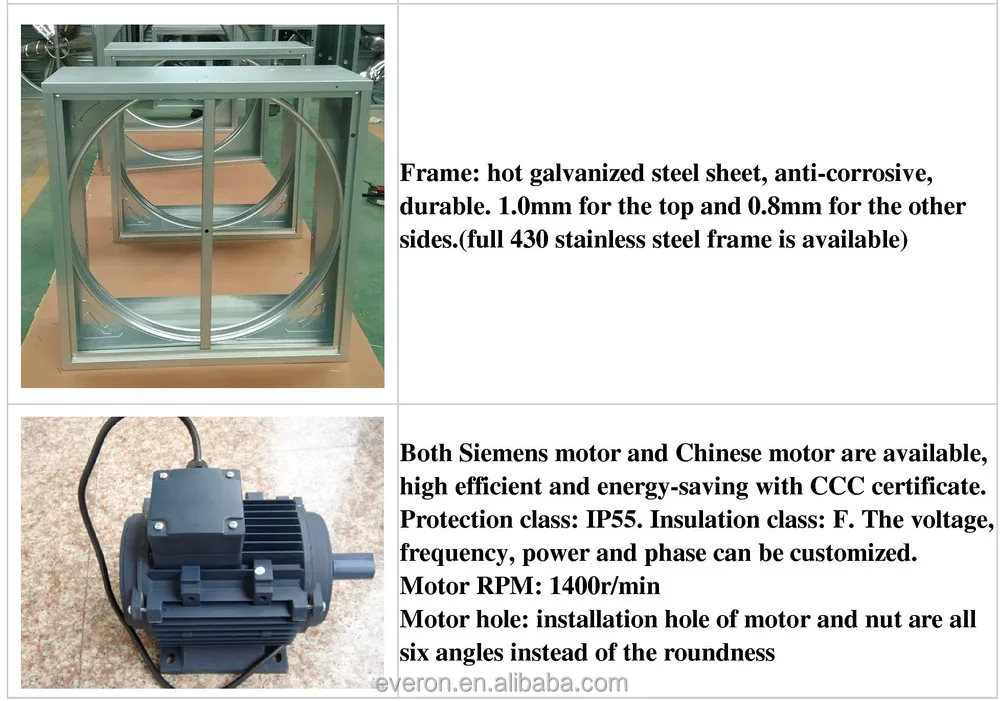

1, Frame: frames are made of hot dip galvanized sheet, frame thickness 1.0mm,. Galvanizing layer 180g/square meters.

2, Blade: 6 pieces, material 430/304 stainless steel.

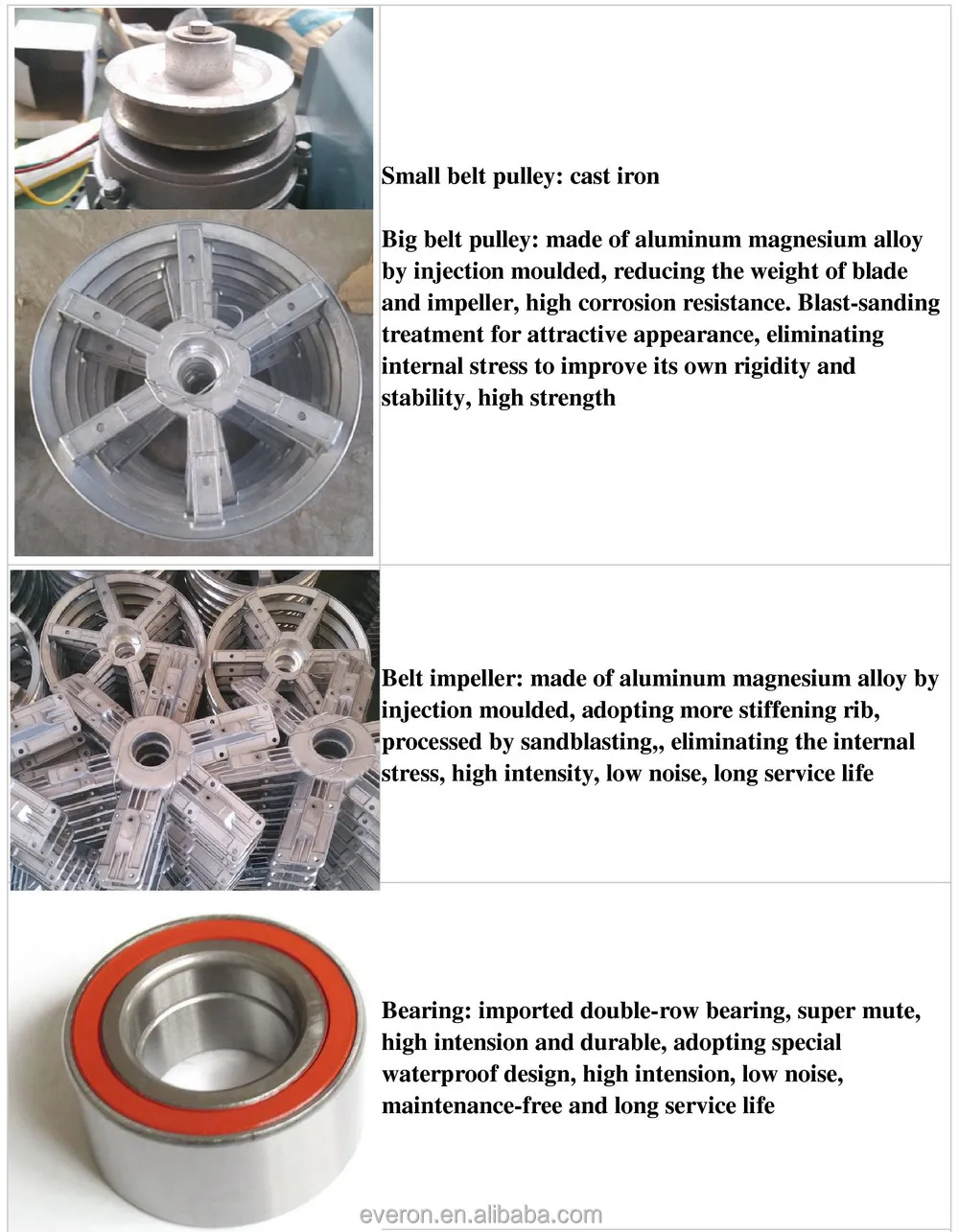

3, Impeller: casting aluminum alloy impeller.

4, bearing of impeller: permanently sealed bearing, size 633313.

5, Collector: galvanized sheet, thickness 1.0mm.

6, Blade tip clearance: 25mm, mirror face.

7, Protecting mesh : plastic sprayed steel wire, thickness 2.8mm.

8, Electrical motor: aluminum alloy frame motor, 380V/220/415V, 1.1KW/0.75KW(1.5HP/1HP), 50HZ/60HZ, 3PH/Single Phase, 4-pole speed, 1410r/m, IP55, class F, efficiency 90%, top/foot mounted,

9, Motor bearing: cast iron.

10, Belt: B-belt and A-belt (Made-in-China and Japan brand Mitsuboshi).

11, Shutters: galvanized board, 0.8 mm thickness while the middle piece thickness 1.0mm. Galvanizing layer, 120g/square meter.

12, Opening system: centrifugal push-push open device.

13, Rivets: aluminum alloy and stainless steel rivets.

Parameters:

Model specifications	Diameter blades- mm	Blades rotational speed- rpm	Motor rotational speed- rpm	Airflow m3/h	Total pressure -Pa	Noise decibels	Import power - W	Rated voltage - V	High mm	Width mm	Thick mm
EOF(d)-1000	900	438	1400	35000	57	≤65	750	380	1000	1000	450
EOF(d)-1100	1000	438	1400	38000	57	≤65	750	380	1100	1100	450
EOF(d)-1380	1250	437	1400	40000	57	≤65	1100	380	1380	1380	450
EOF(d)-1530	1400	325	1400	55800	60	≤65	1500	380	1530	1530	450

Airflow Curve:

Product Description

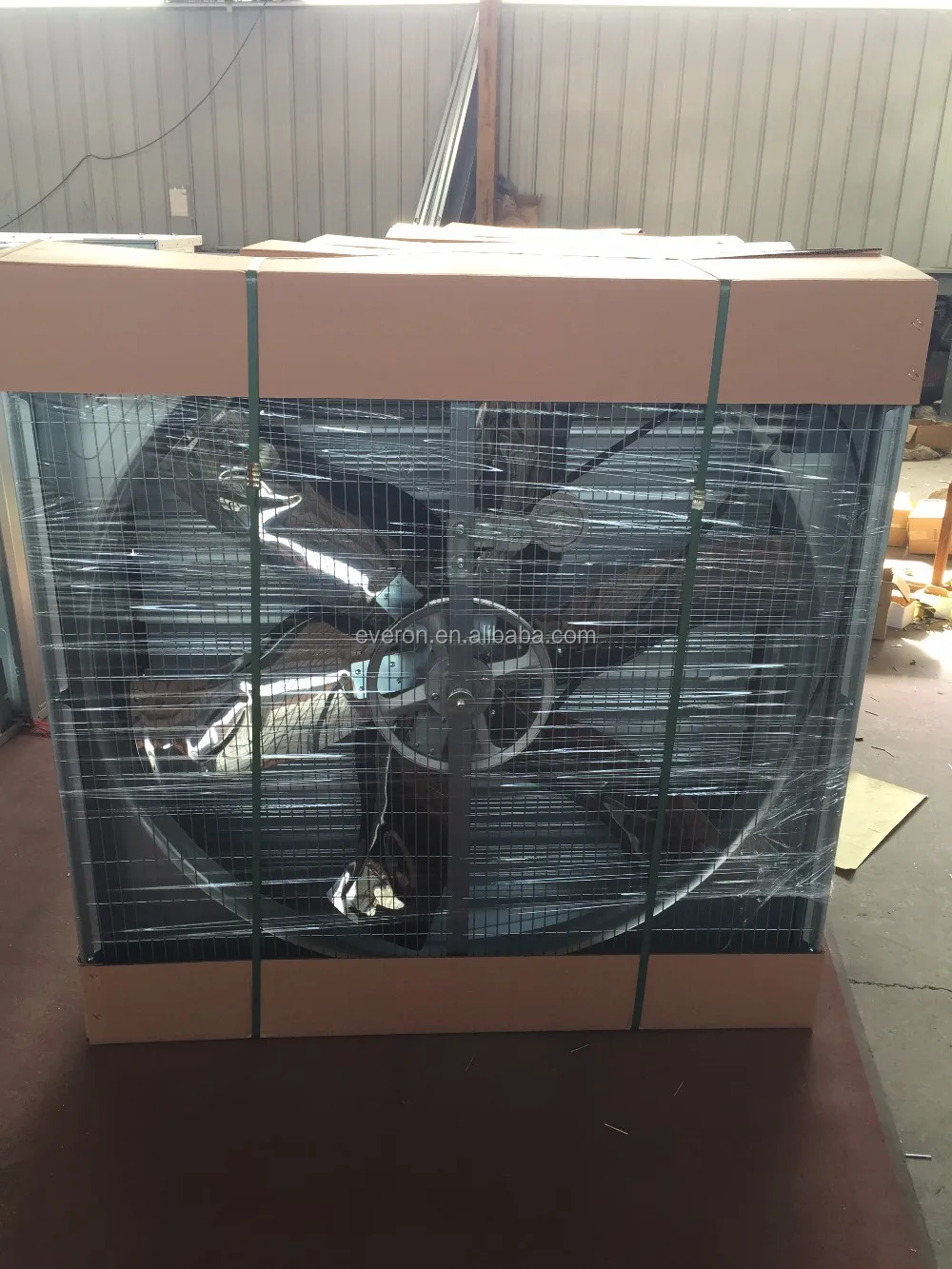

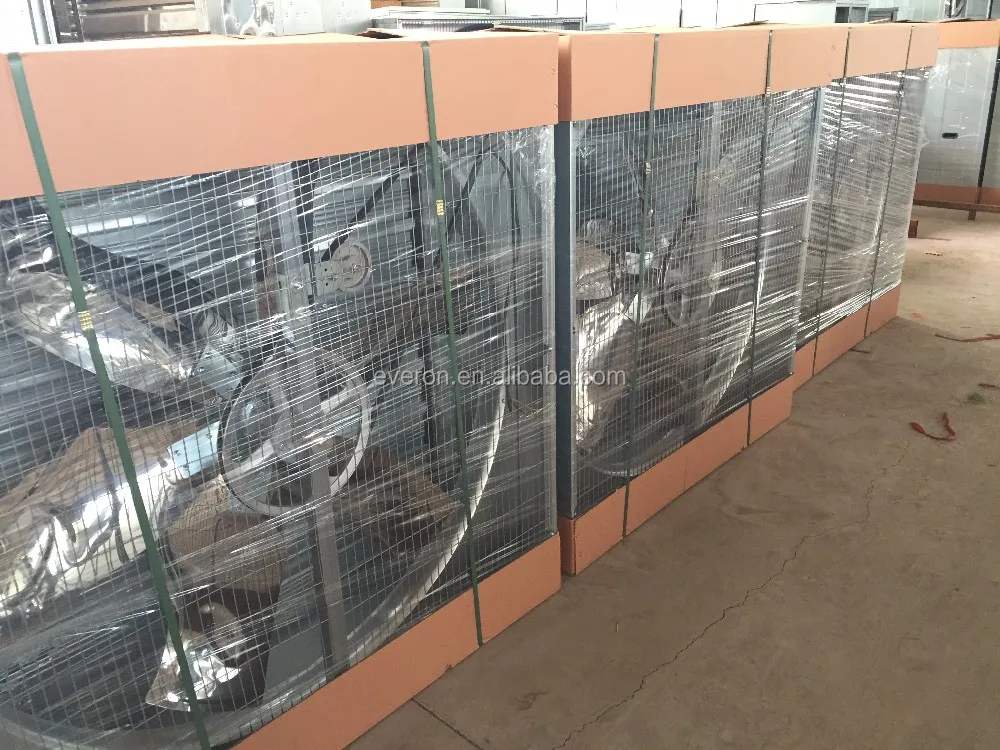

Packaging & Shipping

Details:

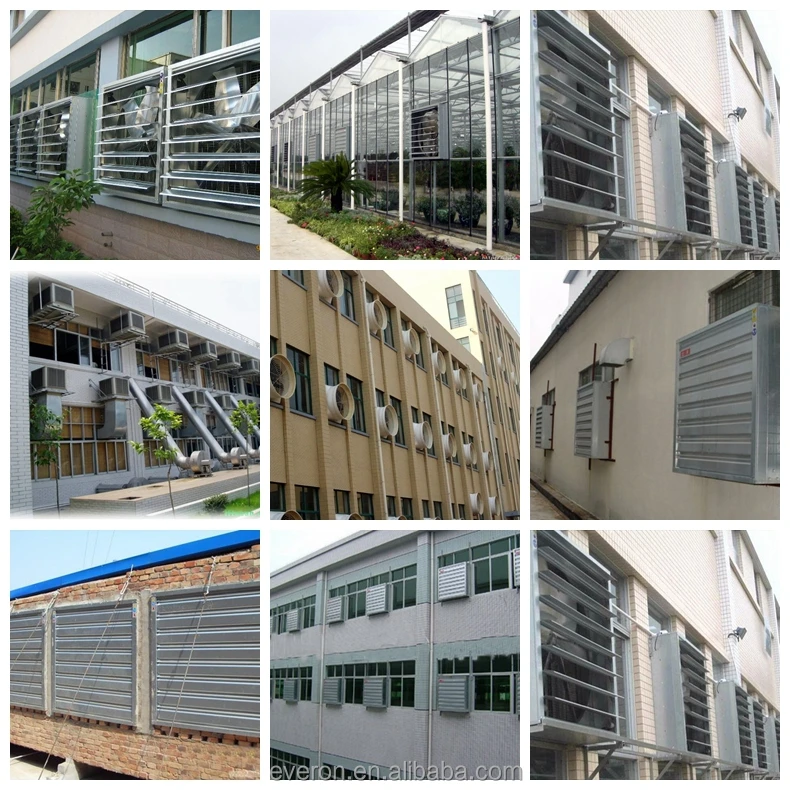

Applications:

About our company:

Everon Industrial is a professional supplier of ventilation machinery,such as exhaust fan ,cooling pad, air cooler . focus on the worldwide market. We promise to provide best product with competitive price.
We have strict inspection of the production before packed,ensure the goods deliveried to your hands are in good condition.
Welcome to contact me for more details.
