MachineryOffers

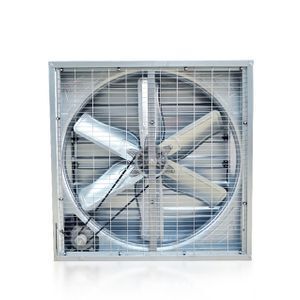

Industrial Factory Greenhouse Ventilation Exhaust Fan

Product details
Model Number:SP-C-E-YFS-800;Air Volume:23500m3/h;
Mounting:Wall Fan;Electric Current Type:DC;
Frequency:50 Hz;Height:800mm;
Noise:≤64db;Type:Axial Flow Fan;
After-sales Service Provided:Engineers available to service machinery overseas;speed:≥1400R/min;
Blade Material:Stainless Steel;Power:370W;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;width:800mm;
rated power:380V;Application:greenhouses,Factory,workshop;
thickness:450mm;Material:Stainless Steel;
Speed:1400-3300 R/min;Voltage:380V;
Place of Origin:Jiangsu China;Brand Name:skyplant;
Packaging Detail:shipping packing;Delivery Detail:7days;
Product name:Ventilation Exhaust Fan;Supply Ability:1000000 Set/Sets per Month;
Port:shanghai port;



2016 Industrial Factory Greenhouse Ventilation Exhaust Fan





PRODUCT DESCRIPTION

The  Greenhouse Exhaust fan is popular in recent years.The  Greenhouse Exhaust fan is a new environmentally friendly and energy-saving plant ventilation cooling equipment, because of the exhaust fan's  large amount of ventilation, ventilation and cooling effect is good, low noise, the installation of the use of the site of the smallest destructive, cheap to buy, wide range of applications, Long life and other significant features, more and more users are loved.



NO.

Drive

Blades Diameter

mm

Air Flow

m³/h

Watts

w

Noise Decibles

dB



Power Parameter

SIZE (L*W*H)

mm

SP-F-400Direct3609000180max 70380V/50HZ400*400*310
SP-F-480Direct44010000180max 70380V/50HZ480*480*310
SP-F-620Direct58018000370max 70

220V/50HZ

380V/50HZ

600*600*370
SP-F-800Belt71022000370

max 65

220V/50HZ

380V/50HZ

800*800*370
SP-F-900Belt80023000370max 65

220V/50HZ

380V/50HZ

900*900*370
SP-F-1000Belt90025000750max 65

220V 50HZ

380V/50HZ

1000*1000*400
SP-F-1100Belt100032000750max 64

220V/50HZ

380V/50HZ

1100*1100*400
SP-F-1380Belt1250440001100max 64

220V/50HZ

380V/50HZ

1380*1380*400
SP-F-1530Belt1400550001500max 64

220V/50HZ

380V/50HZ

1530*1530*400



 Note :

  • SP-F-400, SP-F-480, SP-F-620 Fan with 4 fan blades which motor-drive blades directly type avoid the frequent problem occurred by belt.

             Other models are have 6 fan and drive by fan belt

  • Powder parameter can be customized
  • Exhaust Fan Inverter : the fan speed can be adjusted



Feature:

 Advanced balancing open-close mechanism can ensure shutter 100% open and shut down;

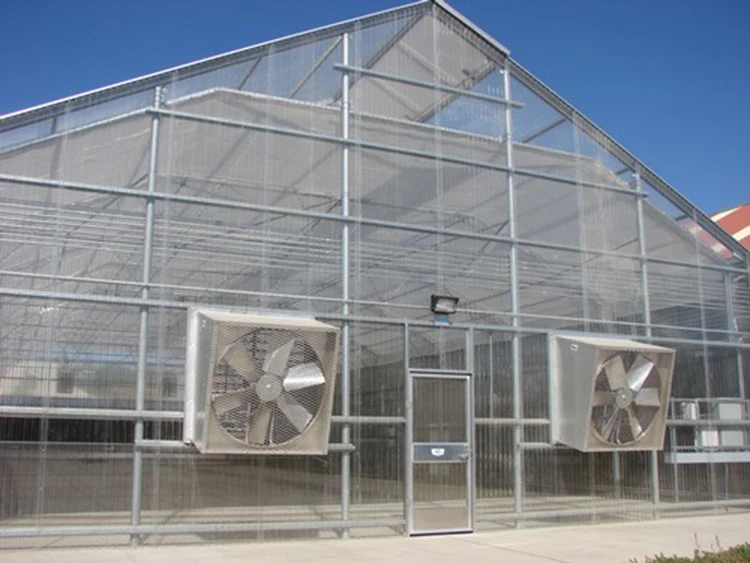

Mainly used for greenhouse, industrial workshop, livestock housing;
Low noise and high air flow capability;
Blades can clean themselves automatically when they are running;
High efficiency motor with stable performance.
