5 ton 6 ton smart intelligence single girder beam eot bridge electric overhead traveling crane system with SWF hoist

Supplier: Henan Dima Crane Co., Ltd.
Region: Henan, China
Contact: Mr Michael Wee
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Max. Lifting Height:	6m, 9m, 12m, 15m, 18m,;	Supply Ability:	100 Set/Sets per Month;
Certification:	ISO, CE;	Max. Lifting Load:	1,3,5,10,16,20,32t;
Condition:	New;	Product Name:	smart intelligence overhead crane;
Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Printing Shops,Construction works ,Energy & Mining;	Payment Terms:	L/C,T/T,Western Union;
After-sales Service Provided:	Engineers available to service machinery overseas;	Span:	5-31.5m;
Port:	Shanghai, Qingdao;	Feature:	Bridge Crane;
Packaging Detail:	Standard package----protecting 3 ton Kone style single beam overhead crane with SWF hoist from damage during shipping, such as foam Plastic, steel frame, wood case, etc;	Rated Lifting Moment:	1,3,5,10,16,20,32t;;
After-sales Service Provided:	Free spare parts;	Warranty:	1 year;
Brand Name:	DIMA CRANE;	Place of Origin:	China;

Product details5 ton 6 ton smart intelligence single girder beam eot bridge electric overhead traveling crane system with SWF hoist

Brief introduction	It is of advanced technology, whose design is based on international standard: FEM (Europe), DIN (Germany), ISO(International), equipped with many advantages such as: strong rigidity, light dead weight, low power, outstanding structure design etc. The configurations are very advanced, such as Schneider electricals, ABM/Nord / SEW triple gear motor (three in one: motor, gear box, brake), galvanized high strength wire rope, self-adjusted disk brake, hard tooth reducer, programmable lifting limit switch, and so on
Unique features	1) high reliability, safety, free maintenance rate; a) work duty: FEM2M, M5 b) Protection class: IP55 c) Insulation class: F d) continuing rate: 60% ( for the high class motor) e) Cooling rate: 30% than normal crane f) Over temperature protection: 170℃ 2) compact design, small size, low dead weight, low headroom 3) Low noise 4) Investment-saved---the workshop’s civil work cost, due to crane’s light dead weight and low wheel pressure. 5) Power-saved. The total motor power is much lower than normal design
Euro-style Main Girder	1. Main girder uses bias-rail box type structure, with optimized design and light dead weight. 2. Steel material. Q235B, or, Q345B. 3. The cover and web plate should get surface rust removal by roller-way conveyor blasting machine before welding; this blasting machine can perform blanking, sandblasting, painting and drying, after that they get to Sa2 level. 4. The welding work of main girder should be performed on work platform (welding assembly unit). In order to avoid distortion of main beam, we adopts U-shaped welding assembly unit to assure that vertical deflection degree between the top cover plate and joint edge of stiffened plate and web plate is no more than H/200, and also effectively reduce the partial wave of web plate.
Euro-style End carriages	1. Material use Q235B, or Q345B. 2. It is made of rectangular steel-pipe or steel plate by welding, the finished end carriage get 1-time positioning process on numeral control machine in order to ensure dimension accuracy and fit tolerance. 3. Each end carriage is supplied with wheels with double-wheel rim, buffer and anti-derailing protection device.

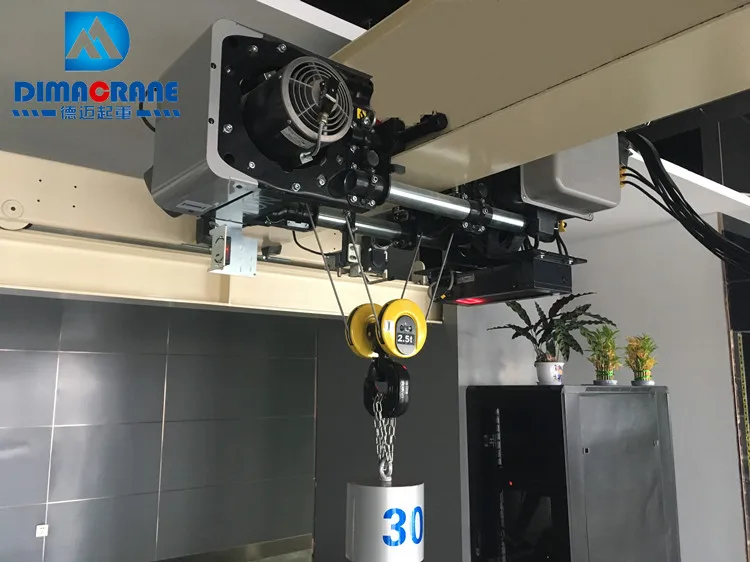

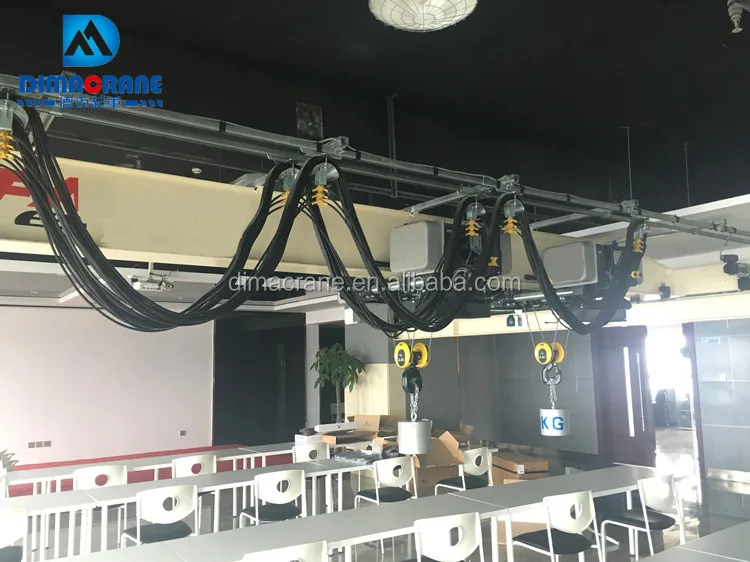

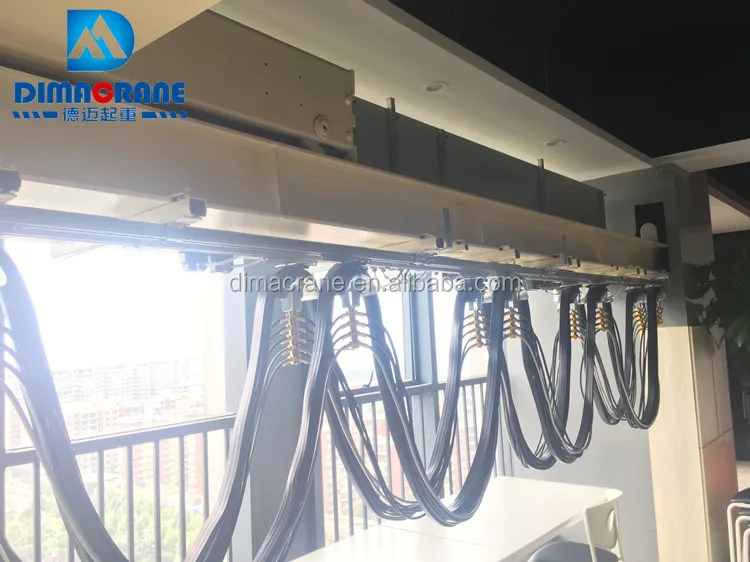

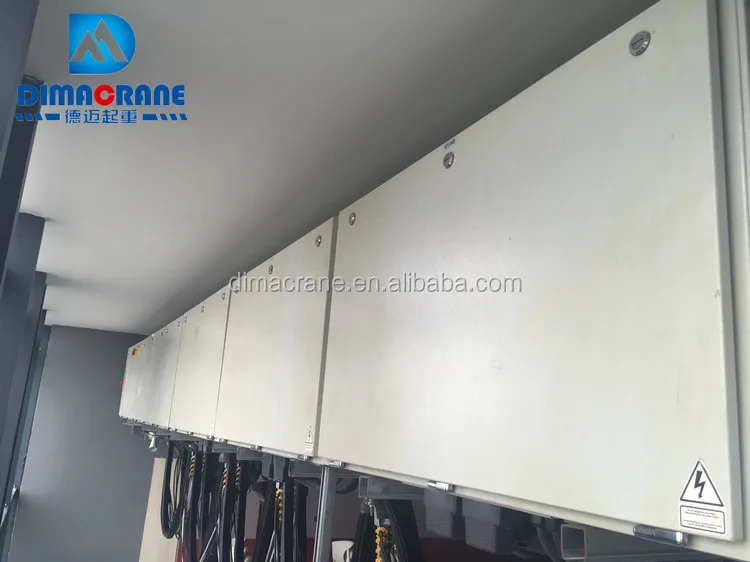

Product pictures5 ton 6 ton smart intelligence single girder beam eot bridge electric overhead traveling crane system SWF hoist

Product parameters5 ton 6 ton smart intelligence single beam eot bridge electric overhead traveling crane system SWF hoist

Lifting capacity	Span	Lifting height	Work duty	Lifting speed	Dead weight
2T	6-21M	6-9M	M5/FEM2M	5/0.8m/min	0.99-3.8T
3.2T	6-21M	6-9M	M5/FEM2M	5/0.8m/min	1.09-4.26T
5T	6-21M	6-9M	M5/FEM2M	5/0.8m/min	1.28-4.91T
10T	6-21M	6-9M	M5/FEM2M	5/0.8m/min	2-6.5T

Related products of overhead cranelow price used crane for sale in dubai


Europe style Single girder overhead crane	Europe style Single girder overhead crane

Europe style Suspension Eot crane	Smart overhead crane & Smart Electricals

Application

It is widely used in machinery manufacturing, metallurgy, petroleum, petrifaction, port, railway, civil aviation, food, paper making, construction, electronics industries workshop, warehouse and other material handling situations, esp. where needs precise positioning, large components precise assembly situations, etc.
