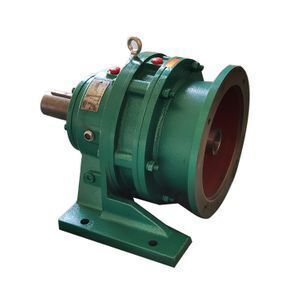

Economical type xwd model planetary cycloidal pinwheel gear speed reducer

Product details
Gear Ratio:11,17,23,29,35,43,59,71, 87;Material of gear:20CrMnTi with high precision grinding;
Output Speed:0.3~140rpm;Brand Name:KINGEAR or OEM;
Packaging Detail:Export Standard wooden case, plywooden case with pallet;gear arrangement:cycloidal;
gear surfcae finishing:between16.-3.2μm;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Warranty:12months;OEM service:available;
Port:NINGBO/SHANGHAI;Input Speed:<2000rpm;
Gearing Arrangement:Cycloidal;Output Torque:up to 20000Nm;
Material of shaft:40Cr with carburizing and quenching;Mounting Position:Horizontal (foot mounted) or Vertical (flange mounted);
Supply Ability:5000 Set/Sets per Week;Input format:IEC flange, direct with motor, shaft input;
Application:packing machine, food process, lift, crane, agitator, feeder;Applicable Industries:Construction works ,Energy & Mining,Food & Beverage Factory,Food & Beverage Shops,Machinery Repair Shops,Manufacturing Plant,Retail;
Place of Origin:Zhejiang China;
Product Description

Cycloid reducer is a cycloid needle teeth meshing planetary transmission principle drive models, is an ideal transmission with many advantages:

Components:

1. Housing: Cast Iron
2. Gearset: Cycloid Wheel & Pin Wheel
3. Input Configurations:
Equipped with Electric Motors (AC Motor, Brake Motor, Explosion-proof Motor, Regulated Speed Motor, Hydraulic Motor)
IEC-normalized Motor Flange, Keyed Solid Shaft Input
4. Output Configurations: Keyed Solid Shaft Output



Features:
1. Large reduction ratio, 1-stage ratio 9~87, 2-stage ratio 121~1849, larger reduction ratio is available by 3-stage or multistage combinations


2. High efficiency, the average efficiency is over 90%

3. Compact structure, light weight
4. Stable and reliable operation, low noise

5. Long service life

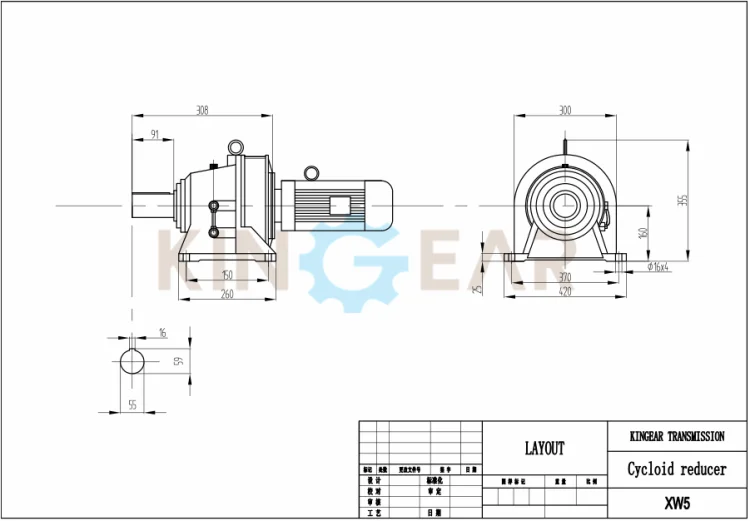

SPECIFICAITON

1 Stage Ratio: 9, 11, 17, 23, 29, 35, 43, 59, 71, 87
2 Stage Ratio: 121, 187, 289, 385, 473, 595, 731, 989, 1225, 1849
