Packaging Detail: | 125kg/carton,80ctn/pallet 1ton/pallet or as client requirement.; | Weight: | 12.5kg/spool; |
OEM: | Accpet; | Quality: | top quality; |
Flux Content: | Normal Standard; | Feature: | good mechanical properities; |
Packing: | 12.5kg/spool; | Shape: | Mig Spool; |
Material: | Copper / Copper Alloy; | Port: | Tianjin or qingdao; |
Melting Point: | 2700; | Type: | manufacturer plant; |
Diameter: | 0.8mm-1.6mm; | Application: | MIG brazing of zinc coated sheets.; |
Place of Origin: | Hebei China; | Product name: | Copper Welding Wire/Silicon Bronze Welding wire aws a5.7 ERCuSi-A; |
Tensile Strength: | 350 MPa (51 ksi); | Payment Terms: | L/C,T/T; |
Brand Name: | Naidi; | Model Number: | AWS a5.7 ERCuSi-A; |
Delivery Detail: | Shipped in 15 days after payment; | Supply Ability: | 1000 Ton/Tons per Month; |
Spool materials: | plastic spool; |
MIG/MAG WIRES (GMAW)
COPPER-BASED ALLOYS

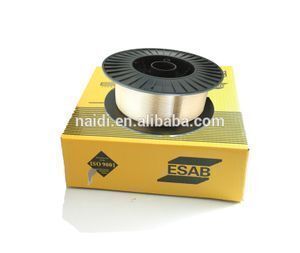

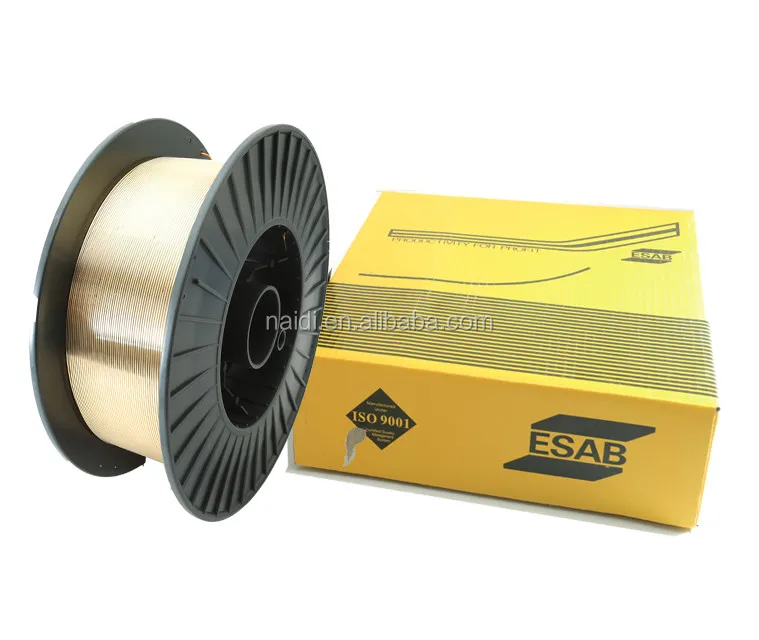

OK Autrod 19.30
A continuous, solid, copper wire for the GMAW joining of copper-zinc alloys and low-alloyed copper and for the GMAW brazing of zinc-coated steel sheets. OK Autrod 19.30 is alloyed with silicon and manganese and has good flow properties and wear resistance. The alloy is widely used in the joining of zinc-coated steel sheets in car body production, as well
as for overlay welding on low- and non-alloyed steels and cast iron. Pulsed GMAW is recommended. OK Autrod 19.30 is normally weld-ed with pure Ar as the shielding gas; however, for GMAW brazing, the addition of 1% O2 improves the brazing properties.
Classifications Wire Electrode: | SFA/AWS A5.7:ERCuSi-A, EN ISO 24373:CuSi3Mn1 |
Typical Tensile Properties
Condition | Yield Strength | Tensile Strength | Elongation |
|
|
|
|
As welded | 130 MPa (19 ksi) | 350 MPa (51 ksi) | 40 % |
|
|
|
|
Typical Wire Composition %
Mn | Si | Cu | Fe | Sn | Zn |
|
|
|
|
|
|
0.9 | 3 | 96 | 0.05 | 0.01 | 0.05 |
|
|
|
|
|
|
Deposition Data
Diameter | Current | Voltage | Wire Feed Speed |
|
|
|
|
0.8 mm (.030 in.) | 60-165 A | 13-17.5 V | 4.0-13.0 m/min |
|
|
| (157-512 in./min) |
1.0 mm (.040 in.) | 80-210 A | 12.5-18 V | 4.0-12.0 m/min |
|
|
| (157-472 in./min) |
1.2 mm (3/64 in.) | 150-320 A | 16-29 V | 5-11.5 m/min |
|
|
| (197-453 in./min) |

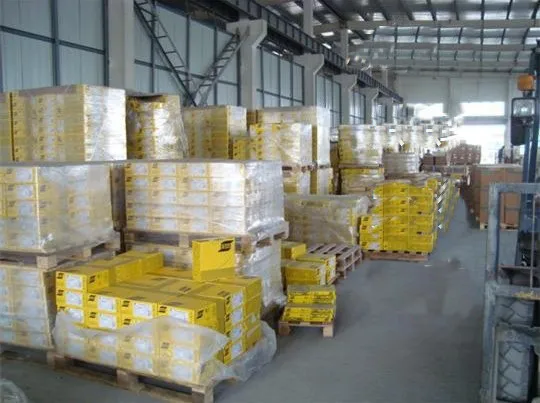

Package details:
For MIG wire:
12.5kg/coil, into carton box,80cartons/pallet;
OR as clients’ requirement
Delivery:
Time: Normally ready goods within 8 to 25 days.
Term: CIF CNF FOB EXW
