Electric/gasoline rammer compactor/rammer machine/tamping rammer

Supplier: Changge City Henan Jinyuhui Construction Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Emily Lee
Price: $50.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	gasoline engine;	Tamp times:	600-700times/min;
leep height:	40-65mm;	Port:	Qingdao;
Color:	as customer's requirement;	Packaging Detail:	Electric/gasoline rammer compactor/rammer machine/tamping rammer: carton with standard export package, or as customer's requirement.;
Model:	HCR110 rammer compactor;	Tamping Plate Size:	250*335mm;
Place of Origin:	Henan China;	compaction capacity:	56N.m2;
engine Powe:	5.5-6.5hp;	Weight:	95KG;
Certificate:	CE, ISO;	Condition:	New;
Model Number:	HCR110 rammer compactor;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,diferent payment is accepted according to different places;
Keyword:	rammer compactor;	Warranty:	12 Months;
Brand Name:	Jinyuhui;	Certification:	CE, ISO;
Power(W):	5.5-6.5hp;	Supply Ability:	100000 Set/Sets per Month;
Dimension(LWH):	8504301050mm;	After-sales Service Provided:	Engineers available to service machinery overseas;
Delivery Detail:	rammer compactor: within 7 days after your payment;

Product Description

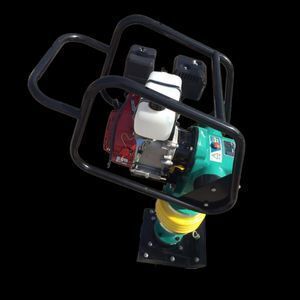

Electric/gasoline rammer compactor/rammer machine/tamping rammer

Gasoline impact rammer application in building, ground, courtyard, roadbed, bridge pile, grooves, the wild, narrow site environment construction can be competent for large and medium-sized machinery to complete the construction task. Can be used for highway construction of the Taiwan back backfill gravel compaction, municipal, airport, port, station of road foundation soil compaction underground waterways, underground electrical pipeline, gas pipeline peripheral back fill compaction and narrow site construction.

Features&Advantages

Electric/gasoline rammer compactor/rammer machine/tamping rammer

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution.

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Technical datas

Electric/gasoline rammer compactor/rammer machine/tamping rammer

product	model	compaction capacity	tamp times	leep height	walk speed	tamping plate size	motor power	weight
Frog tamping machine	HW60	60N/m2	150-160times/min	150-200mm	8m/min	610*450mm	3KW	120KGS
Frog tamping machine	HW80	80N/m2	150-160times/min	150-200mm	8m/min	610*450mm	3KW	140KGS
Product	model	Vibration Frenquency	Forwarder Speed	Motor Power	Tamping Plate Size	size	weight
plate tamping machine	HZD115 electric	48HZ	4-14m/min	3KW/4KW	430*630mm	970540630mm	110KGS
	HZD200 electric	48HZ	4-14m/min	3KW/4KW	430*630mm	970540630mm	120KGS
	HZR115 gasoline with water tank	48HZ	4-14m/min	3KW/4KW	430*630mm	970540630mm	110KGS
	HZR115 gasoline without water tank	48HZ	4-14m/min	3KW/4KW	430*630mm	970540630mm	100KGS
Product	Model	compaction capacity	Tamp times	Motor Power	Leep Height	Tamping Plate Size	Weight
impacting rammer	HCD80 electric	75N.m2	500-650times/min	3KW	45-70mm	250*335mm	70KGS
	HCD90 electric	75N.m2	500-650times/min	3KW	45-70mm	250*335mm	70KGS
	HCD100 electric	75N.m2	500-650times/min	3KW	45-70mm	250*335mm	75KGS
	HCD110 electric	75N.m2	500-650times/min	3KW	45-70mm	250*335mm	75KGS
	HCR90 gasoline	65N.m2	600-700times/min	5.5-6.5hp, air-cold	40-70mm	250*335mm	85KGS
	HCR110 gasoline	56.m2	600-700times/min	6.5-7.5hp air-cold	40-65mm	250*335mm	85KGS

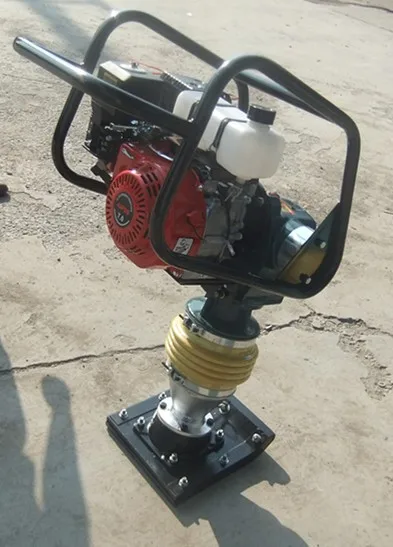

Detailed Images

Electric/gasoline rammer compactor/rammer machine/tamping rammer

Certifications

Our Services

Electric/gasoline rammer compactor/rammer machine/tamping rammer

1.Pre-sale Service, we can manufacture machines according to your requirement with your design, logo, color, material and brand information.
2.Trail order is accepted, your design, color and size is welcome.
3.Constantly service before and after sales. Our sales and engineers will provide constantly service for you.(hot line:86-374-6015988)
4.About Warranty, we offer 12 months warranty, free accessories are provided due to quality problem.

FAQ

Electric/gasoline rammer compactor/rammer machine/tamping rammer

Q: What kinds of payment do you accept?
A: different payment terms is accepted, for details please ask our sales.
Q: What is your MOQ?
A: One set is ok.
Q: What is your package?
A: Iron frame and plywood cases or carton.
Q: Can you provide the motor according to our local voltage and frequency?
A: Yes, we can supply motor with voltage and frequency according to your local standard, such as 220V/338V and 50HZ/60HZ 3 phase without extra change.
Q:Is OEM/ODM acceptable?
A: Yes, our products can be customized as customer’s requirements.
