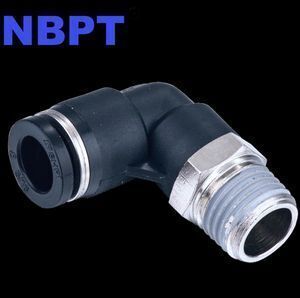

PL Elbow Push In to Connect Tube to Thread One Touch Fitting
-
Supplier: Ningbo Pneumatic Technical Expert Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Liling Zhou -
Price: $0.80 / >=100 pieces -
Min. Order: 100 pieces
| Package size per batch: | 16X12X10 cm; | thread: | BSPT, BSPP, NPT; |
| Color: | Grey,Blue,Black; | Model Number: | PL12-04; |
| material: | PBT and brass; | Gross weight per batch: | 4.54 KG; |
| Application: | Pneumatic; | Usage: | pneumatic systems; |
| No-Load Speed: | Variable; | Package Type: | Standard NBPT box; |
| OEM, ODM: | accept; | Selling Units: | Multiple of 100; |
| Package Preview: | https://sc02.alicdn.com/kf/UTB8.zEAw__IXKJkSalU761BzVXaF.png_640x640.png; | MOQ: | 100; |
| Place of Origin: | Zhejiang China; |
Quick connecting pneumatic tube fitting
Characteristic 1. One-touch tube fittings are used in pneumatic piping. 2. The tube fittings come in a wide variety of models to meet all your needs in pneumatic piping. 3. Even after installation, the direction of the tube can be changed freely. 4. Nickel-plated metal body ensures Anti-corrosion and Anti-contamination. 5. All R and NPT threads are Pre-coated sealant. 6. All cylindrical threads are standard with O-ring seals. Size:
|
Fluid | Air,Vacuum |
Operating Pressure | 0~1.0Mpa |
Negative Pressure | –100Kpa(10Torr) |
Max Pressure | 1.5Mpa |
Operating Temperature | 5~60°C |
Applicable | Nylon and PU ,Polyurethane |
1) Brass with good nice nickel plated.
2) BSPT thread (British Standard Taper Pipe Thread).
3) The thread part of the fitting is longer and more thick than many other supplier of China.
4) Each and every pcs was tested at 10kgs/cm2.
5) Thread with teflon coating which can seal directly without any other seal material.
6) Bottom was hexagonal suitable for fitting by lkey.
7) Inner seal can bear 75 degree
8) The snap spring is stainless steel with heat treatment and the life time is more than 1000 times.
9) Body: Brass or PBT
10) Body Color: Nickel plated or natural brass; Black or Grey PBT
11) Release Ring Color: Black, Blue, Red, Grey, Orange, Green etc.
12) Certification: ISO9001:2015
-
