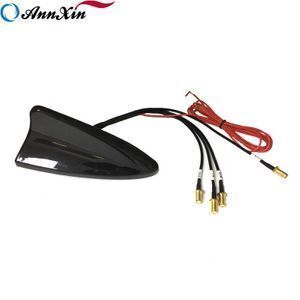

Hot Selling Auto Car TV Gps Gsm Fm Am Shark Fin Antenna

Supplier: Dongguan Annxin Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Emily Tan
Price: $50.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Cable Length:	Customized;	Single gross weight:	0.06 KG;
Antenna length:	145mmx70mm;	Gain:	28+/-3dBi;
Gain(dB):	28dB / 3dB;	Car Make:	Car Models;
Polarization:	Vertical;	Work Voltage:	3.3V or 5V;
Connector:	sma female/others;	VSWR:	≤1.5;
Product name:	Hot Selling Auto Car TV Gps Gsm Fm Am Shark Fin Antenna;	Brand Name:	annixn;
Place of Origin:	Guangdong China;	FreqRange:	gps:1575.42 ± 2MHZ/GSM:824-960MHz/FM:8+/-3dB/AM:8+/-3dB;
Model Number:	annxin- ATC-M10-3;	Single package size:	14.5X7X6 cm;
Frequence Range:	1575.42 ± 2MHZ;	Package Type:	Hot Selling Auto Car TV Gps Gsm Fm Am Shark Fin Antenna packing 1pcs/pe bag;
Model:	annxin- ATC-M10-3;	Impedance:	50Ω;
Selling Units:	Single item;

Hot Selling Auto Car TV Gps Gsm Fm Am Shark Fin Antenna

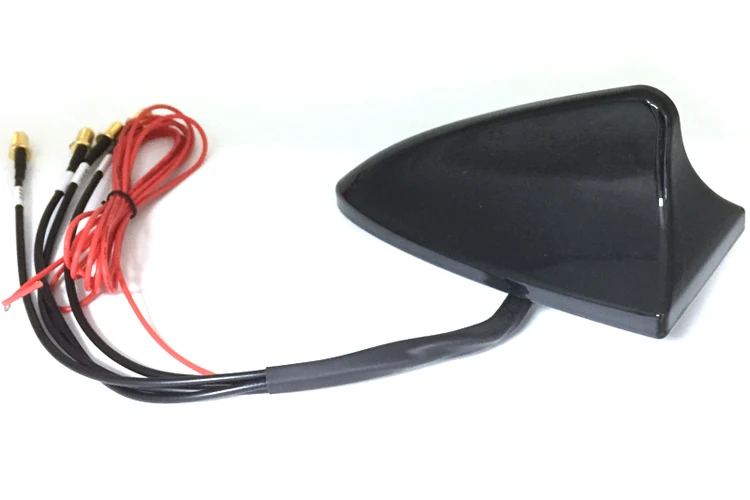

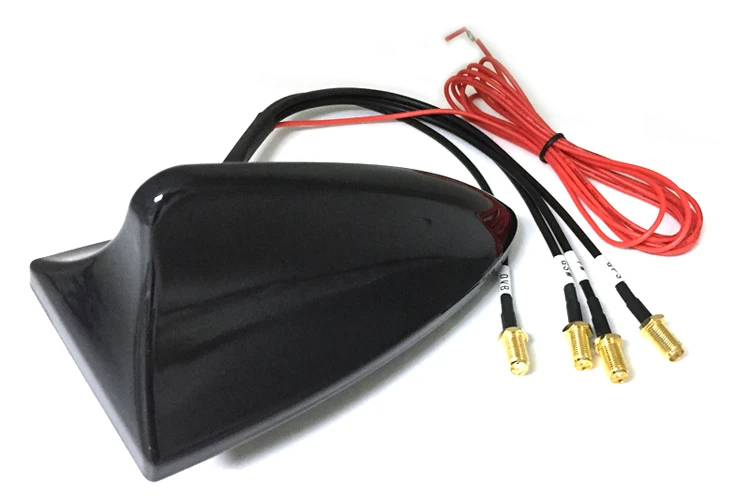

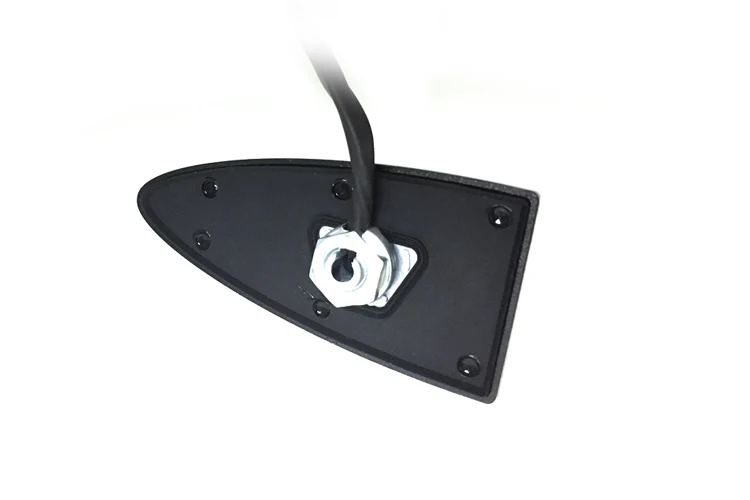

Detailed Images

Product Description

GPS Specification:

Frequency	1575.42 ± 2MHZ
vswr	<=1.5
Polarization	RHCP
Patch Gain	3dBi
Noise Figure	<1.6dB
LNA+Patch Gain	23± 3dB
Output Impendace	50 ohms
VSWR	<1.5:1
Ratio	<4dB
Patch Dimension(mm)	25x25

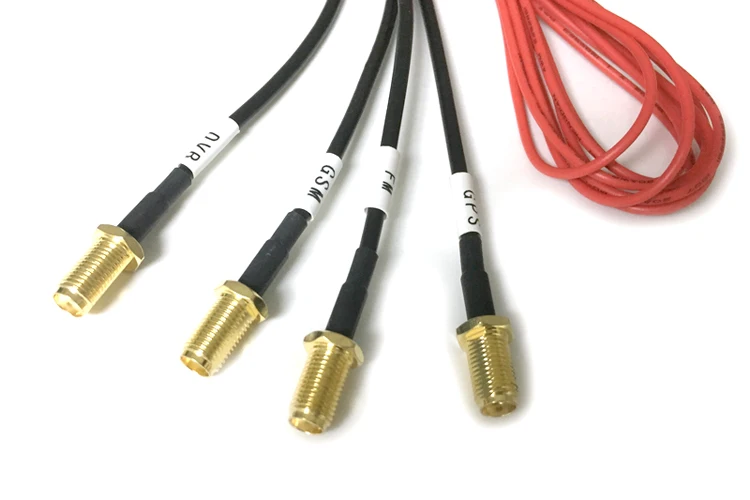

Connector	SMA Female
Amplifier gain	28dB±3
Work Voltage	3.3V or 5V
Work Current	<15mA

GPRS Specification:

Frequency range:	GSM:824-960MHz, PCN:1710-1880MHz, UMTS:1900-2170MHz,
V.S.W.R	less than 1.5,
Impedance	50 ohms
Polarization	Vertical
Gain	2dbi
Cable	RG174U,50 ohms,
Connector	SMA

AM/FM Specification:

AM/FM SPECIFICATION
Frequency	AM:535-1605KHZ
Frequency	FM:87.5-108MHZ
Gain	FM:8+/-3dB
Gain	AM:8+/-3dB
Output Impendace	75 ohms
VSWR	2:1
Noise Fig	<4.5dB
DC Voltage	12V
DC Current	30-50mA

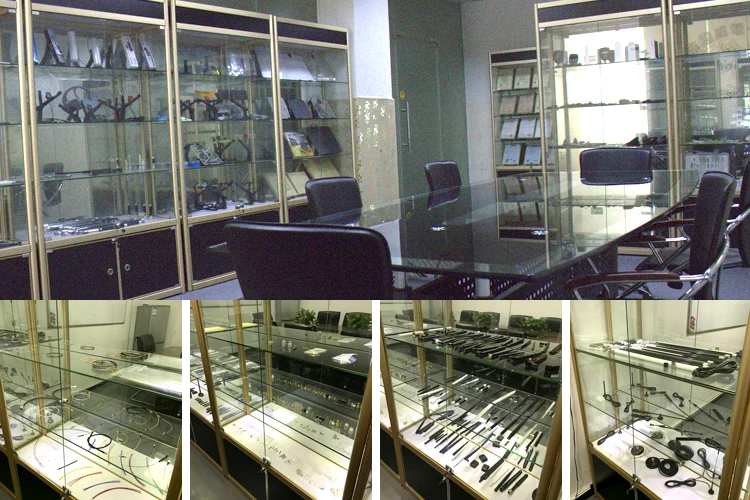

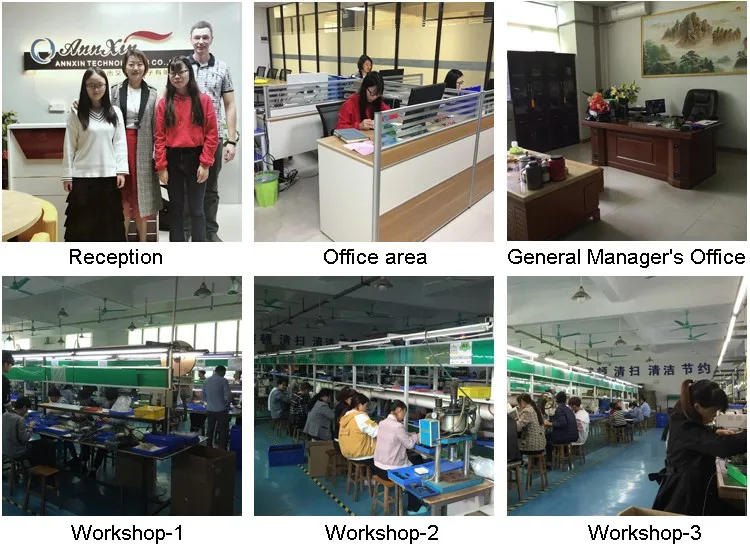

Company Information

ANNXIN TECHNOLOGIES CO.,LTD. is a professional manufacturer and leading distributor in Dongguan(near Shenzhen)China since 2006.We carry series of RF ANTENNAS RF/ MICROWAVE COAXIAL CONNECTORS RF CABLE ASSEMBLIES, (Such as SMA, SMB, TNC, BNC, MCX, MMCX, N, FME, ADAPTERS) Other Cable Assemblies(USB,HDMI,VGA,DVI,DP, Netowrk,RJ11 Cables etc.) which are reliable and dependable to you all.Our broad line of coaxial connectors, cable assemblies and Wi-Fi antenna are quite popular and the reception of these items is quite favorable in the market.With very professional technology, strictly QC and QA, as well as our best service to our customers in no time, we will provide our customers with the most effective, competitive products, as well as complete service and supports.Welcome your enquiries!
