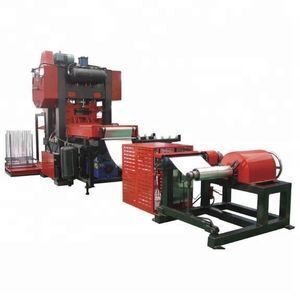

SMAC high quality aluminum fin press machine

Supplier: SJR Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Selina Ren
Price: $65000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Min.Slide Lifting Height:	80mm;	Showroom Location:	None;
Bed Area:	900x1300mm;	Warranty:	1 year;
Place of Origin:	China;	Brand Name:	SMAC;
Single package size:	640X200X270 cm;	After-sales Service Provided:	Engineers available to service machinery overseas;
Name:	aluminum fin press machine;	Stroke of Slide:	50mm;
Local Service Location:	None;	After-sales Service Provided:	Field maintenance and repair service;
Type:	Compressor;	Selling Units:	Single item;
Single gross weight:	4,800 KG;	Package Type:	Standard packing;
Certification:	CE;	Die height:	240-290mm;
Capacity:	650KN;	Total Power:	18.5KW;
Applicable Industries:	Construction works ;	After Warranty Service:	Spare parts;

Product Description

Main performance features of ZCPC series fin press machine :
♥ Composition:

1.Aluminum foil uncoiled mechanism,

2.oil tank

3.initial feeding equipment (option)

4.closed high- speed precision press

5.sucker collector

6.electric control system

7.pneumatic control system

8.hydraulic control

9.quick change die device

10.reliable 1 and 2 steps switching device
11.The slide has hydro-lifting function which will be convenient for dies installation

♥ power press speed & vacuum sucker is controlled by converter
♥ Collector has protect system for fault operation, material shortage warming, oil shortage warming
♥ Hydraulic overload protection for main machine
♥ Equipped with hydraulic rapid-dies changing device, make dies be more quickly and convenient
♥ Touch screen and PLC electrical control system ensuring the reliable operation of the automatic stamping .

Brief data

1.High position accuarcy:most suitable for machining parts such as dies,drilling or boring
jigs and fixtures
2.wider range of application:drilling, boring, medium-load milling, scribing,scaling and measuring all are ok
3.various sizes of table:three standard sizes and much more amounts of size just as your requirement

Item	Specification
		ZCPC50			ZCPC65		ZCPC85	ZCPC100	ZCPC125	ZCPC160
Capacity	KN	500			650		850	1000	1250	1600
Storke of Slide	mm	40	50	60	40	50	40	40	40	60	70
Punching Times(without Loading)	SPM	120-300	120-260	120-230	150-300	150-260	150- 300	150-300	150-300	150-230	150-210
Die height	mm	240-290			240-290		270-320	270-320	270-320	270-320
Min.Slide Lifting Height	mm	80			80		120	120	120	120
Bed Area	mm	750x1300			900x1300		1100x1170	1320x1190	1355x1370	1320x1150
Extending Suppod	mm	770x1300			920x1300		1520x1170	1740x1190	1380x1885	1740x1150
Slide Bottom Area	mm	580x800			730x850		950x1198	1300x1190	1340x1275	1300x1150
Main Motor Power	KW	7.5			7.5		7.5	11	15	18.5
Total Power	KW	18.5			18.5		18.5	22	26	29.5
Working Air Pressure	mm	6kgf/cm²
Hydraulic Working Pressure	MPA	8			8		8	8	8	12.5
Inner Diameter of Aluminum Materia	mm	Φ75/Φ150			Φ75/Φ150		Φ75/Φ150	Φ75/Φ150	Φ75/Φ150	Φ150/Φ480
Diameter of Aluminum Materia	mm	Φ1200			Φ1200		Φ1200	Φ1201	Φ1202	Φ1200
Max Width of Aluminum Materia	mm	410			560		850	1100	1100	850
Max Height of Collecting Materia	mm	Normal 750mm/ Lift 900mm
Total Weight	mm	15			18		20	23	27	25

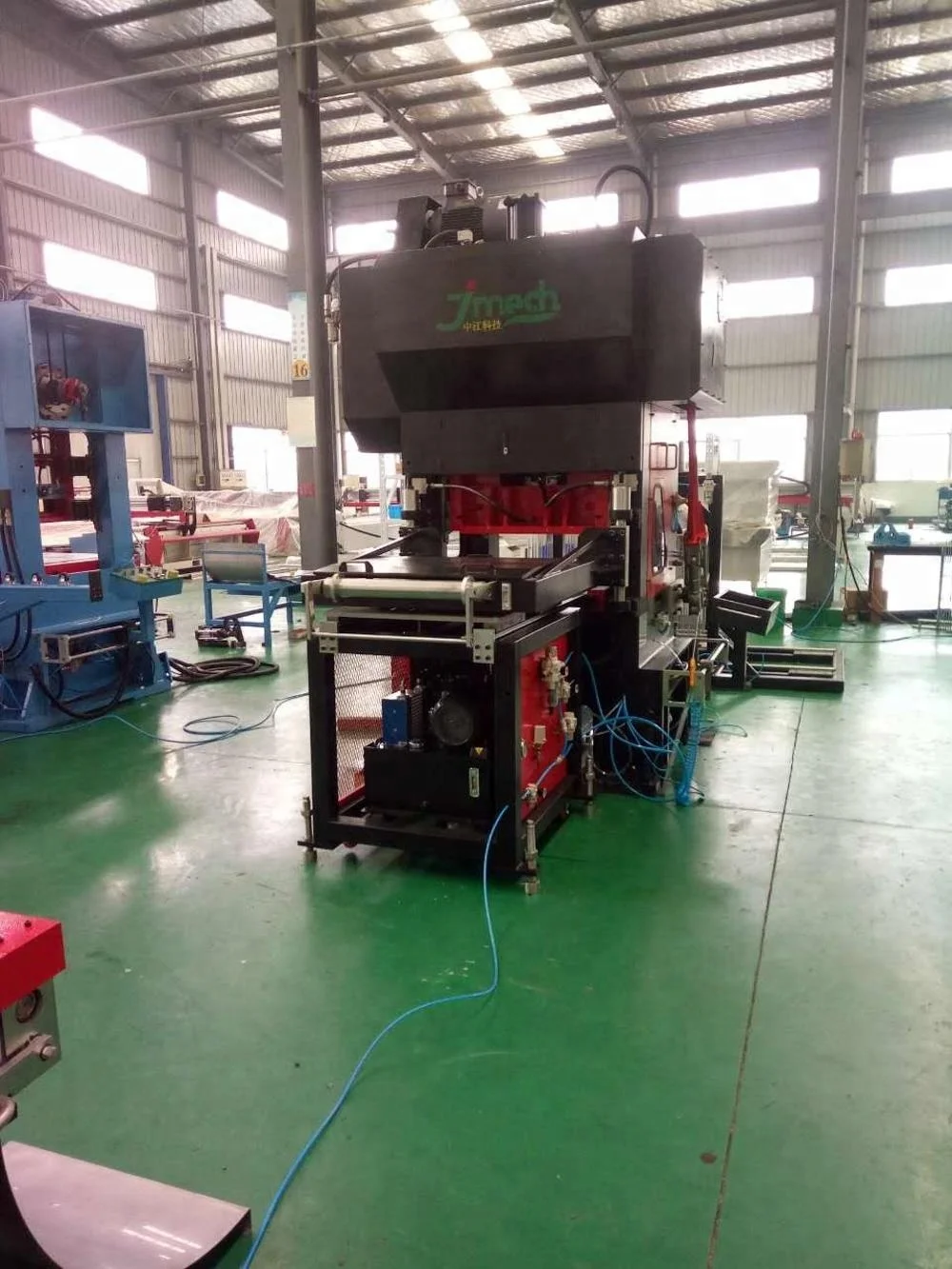

Factory view
