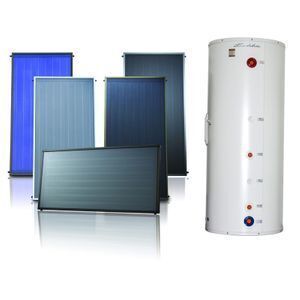

Hot Selling Solar Power System 100L200L300L500L Small Solar Home System For Energy Saving

Product details
Pipe Material:Glass;Packaging Detail:cartons,wooden package for LCL load.;
Flat panel solar collector:flat plate;Place of Origin:China;
Port:Shanghai;Supply Ability:8000 Set/Sets per Month;
Model Number:SPFP;solar collector:pressurized;
Payment Terms:L/C,T/T;Brand Name:sunpower;

Product description



Model
SPFP-G/0.6- AL/GT-80
Outline area
1.88
Aperture area
1.82
Absorption area
1.75
Dimensions
960*1960*80
NW
20/21kg
Capacity of cooper pipe
1.7L
Transparent cover
Ordinary fabric surface tempered glass
Aperture rate
≥91%
Thickness transparent cover
3.6mm
Absorber
0.4mm roller coating aluminum plate
Thickness of Frame
aluminum 0.35mm(915*1915)
Heat absorption rate
91±2%
Emission rate
9±2%
Welding technics between
copper pipe and absorber
laser welding from Bluetech (spot welding double pitch 4mm)
Head tubes
Φ22*1 mm aluminum pipe
Riser tubes
Grid typeΦ10*1mm
insulation materials
30mm glass wool
Insulation thickness
20mm
alloy frame material
Aluminum-magnesium(thickness 1mm)
Frame color
black
Backplate materials
Galvanized sheet
Backplate thickness
0.3mm
Sealing material
Silicon ring
Heat Medium
Pure water or glycol medium
Testing pressure of inner circulating
0.9Mpa
Working pressure of inner circulating
0.6Mpa
operation temperature
170℃
